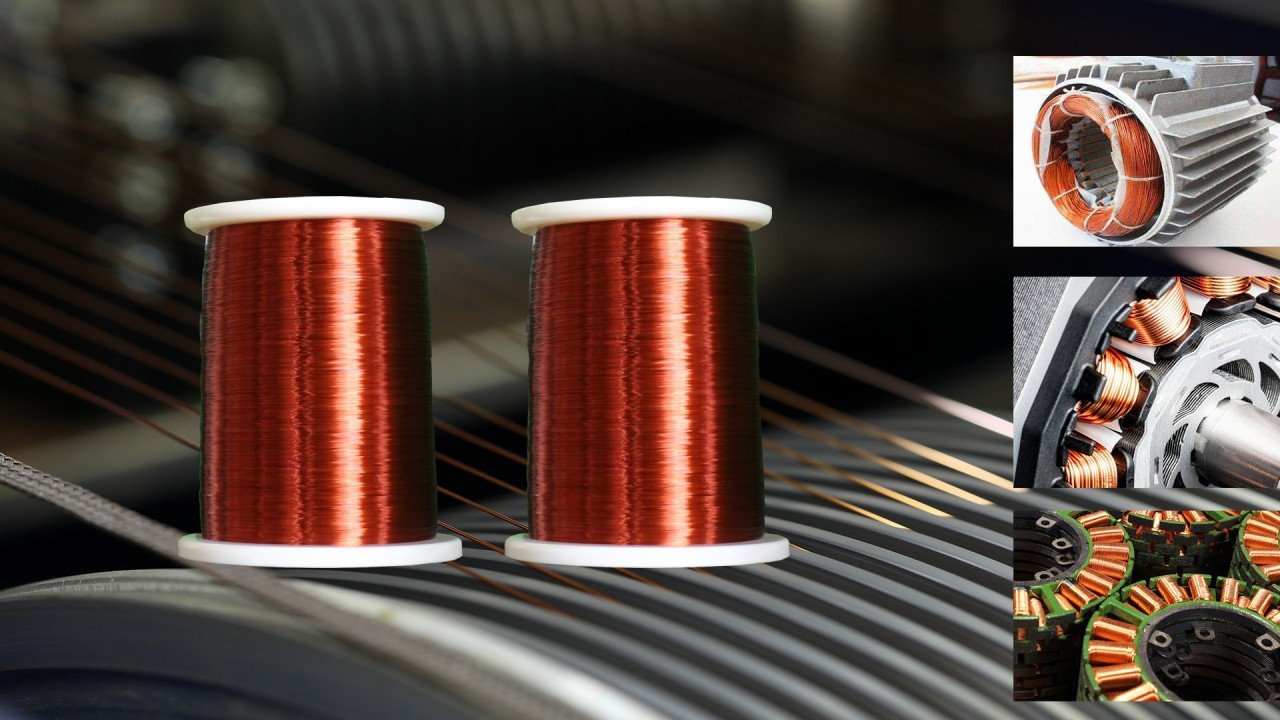

Enameled Copper Wire (المعروف أيضًا باسم Enamelled Copper Wire, Magnet Wire, or Winding Wire) is a premium electrical conductor consisting of a high-purity copper core uniformly coated with multiple layers of insulating enamel varnish. The manufacturing process involves annealing the copper wire followed by repeated precision coating and drying cycles, resulting in a smooth, durable, and highly reliable insulation layer that meets the most demanding electrical and thermal requirements.
بصفتنا شركة رائدة enameled copper wire manufacturer, RLB delivers consistent quality, exceptional drawability, and outstanding performance for global customers in the electrical and electronics industries.
الميزات الرئيسية والمزايا التقنية
- Superior Electrical Performance — High-conductivity copper core combined with high dielectric strength enamel provides excellent insulation integrity, low power loss, and reliable performance even in compact, high-voltage windings.
- Wide Thermal Class Range — Available in thermal classes from 130°C (Class B) to 200°C (Class N) and beyond, ensuring long service life in high-temperature environments such as compressor motors and industrial drives.
- Excellent Flexibility and Adhesion — The enamel film offers outstanding flexibility and strong bonding to the copper substrate, enabling high-speed winding on automatic machines without cracking or delamination.
- Corona and Chemical Resistance — Specialized corona-resistant grades provide superior protection against partial discharge in inverter-driven motors (VFD applications), while excellent resistance to moisture, chemicals, and mechanical abrasion ensures durability in harsh operating conditions.
- Direct Solderability Options — Polyurethane-based types (such as QA/UEW) allow direct soldering without enamel stripping, significantly reducing assembly time and labor costs in relays, small transformers, and electronic coils.
- Smooth Surface and Consistent Dimensions — Precision manufacturing ensures uniform diameter and smooth surface, minimizing friction and ensuring stable tension during high-speed winding processes.
التطبيقات الرئيسية

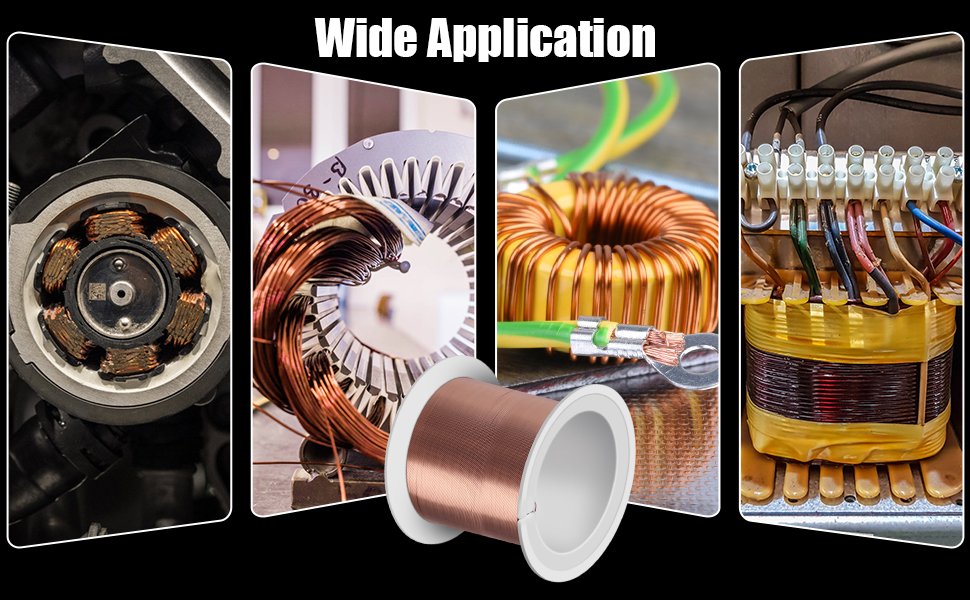

Enameled Copper Wire is the essential material for a wide range of electromagnetic components:

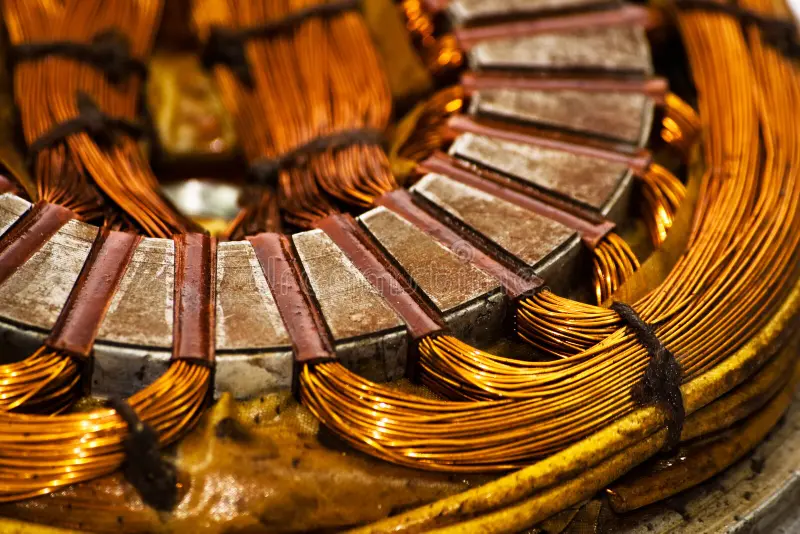

- Refrigerator and Air-Conditioner Compressor Motors — High thermal class and reliability critical for continuous operation in hot climates.
- High-Efficiency Industrial and Special Motors — Inverter-compatible corona-resistant grades for variable frequency drive (VFD) applications.
- Transformers, Ballasts, and Reactors — Excellent dielectric properties and thermal endurance for power and distribution transformers.
- Automotive Electrical Systems and EV Charging Equipment — Vibration resistance and thermal stability for demanding automotive environments.
- Household Appliances, Lighting, and Electromagnetic Coils — Relays, degaussing coils, solenoids, and small motors requiring consistent quality and cost-effective performance.
Its combination of electrical efficiency, thermal reliability, and processability makes it the preferred solution for manufacturers targeting high-performance, compact, or high-temperature applications.
Image Placement Suggestion: Professional transformer and compressor motor application images.
Diameter Range
- Standard Range: 0.05 mm – 6.00 mm
- Custom diameters and tolerances available upon request
Enameled Wire Types (Thermal Classes & Insulation Materials)
- Corona Resistance Enameled Copper Wire
- Polyester Enameled Copper Wire (PEW)
- Modified Polyester Enameled Copper Wire
- QZY Enameled Copper Wire (Polyester-imide)
- QA Copper Wire (Direct solderable, polyurethane-based)
- Polyester-imide / Polyamide-imide Composite Round Enameled Copper Wire (high-temperature class)
المواصفات الفنية
| المعلمة | مواصفة | شروط الاختبار / المعيار |
|---|
| Diameter Range | 0.05 mm – 6.00 mm | Precision drawing |
| Thermal Classes | 130°C, 155°C, 180°C, 200°C | UEWAL / EIWAL / E/AIWA |
| Enamel Types | Polyurethane, Polyester-imide, Polyamide-imide composite | High dielectric strength |
| قوة الشد | عالي | Excellent flexibility |
| استطالة | ممتاز | Smooth winding performance |
| Heat Resistance | Up to 200°C continuous | Long-term thermal stability |
| Insulation Properties | Strong dielectric strength | Chemical and environmental resistance |
| Spool Type | High-quality plastic spools | Easy feeding into automatic winding machines |
(Custom diameters, thermal classes, and enamel types available upon request.)
Enameled Wire Types – Selection Guide
- QA / UEW (Polyurethane) — Direct solderable, excellent for small coils, relays, and electronic windings (Class 130–180).
- PEW (Polyester) — Cost-effective general-purpose wire for standard motors and transformers (Class 155).
- QZY / EIW (Polyester-imide) — Higher thermal resistance and good chemical resistance (Class 180).
- AIW / E/AIW (Polyamide-imide) — Superior thermal and mechanical properties for demanding applications (Class 200+).
- Corona Resistant Grades — Specifically engineered for inverter-fed motors to prevent premature insulation failure caused by partial discharge.
Each type is carefully engineered to meet specific thermal, mechanical, and electrical demands of modern electrical equipment.
Manufacturing Process & Quality Assurance

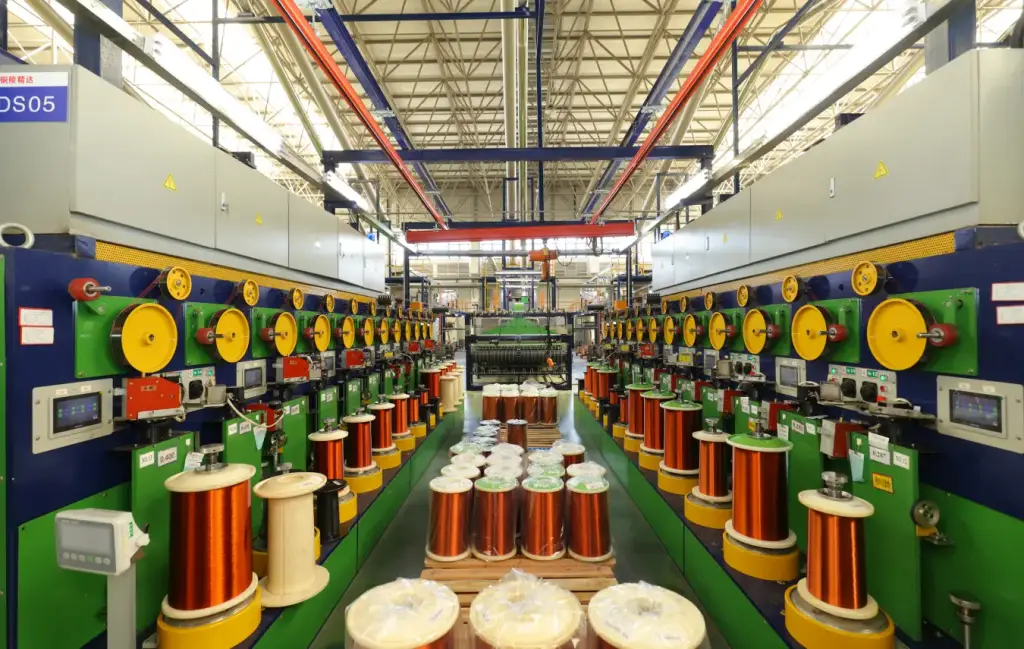

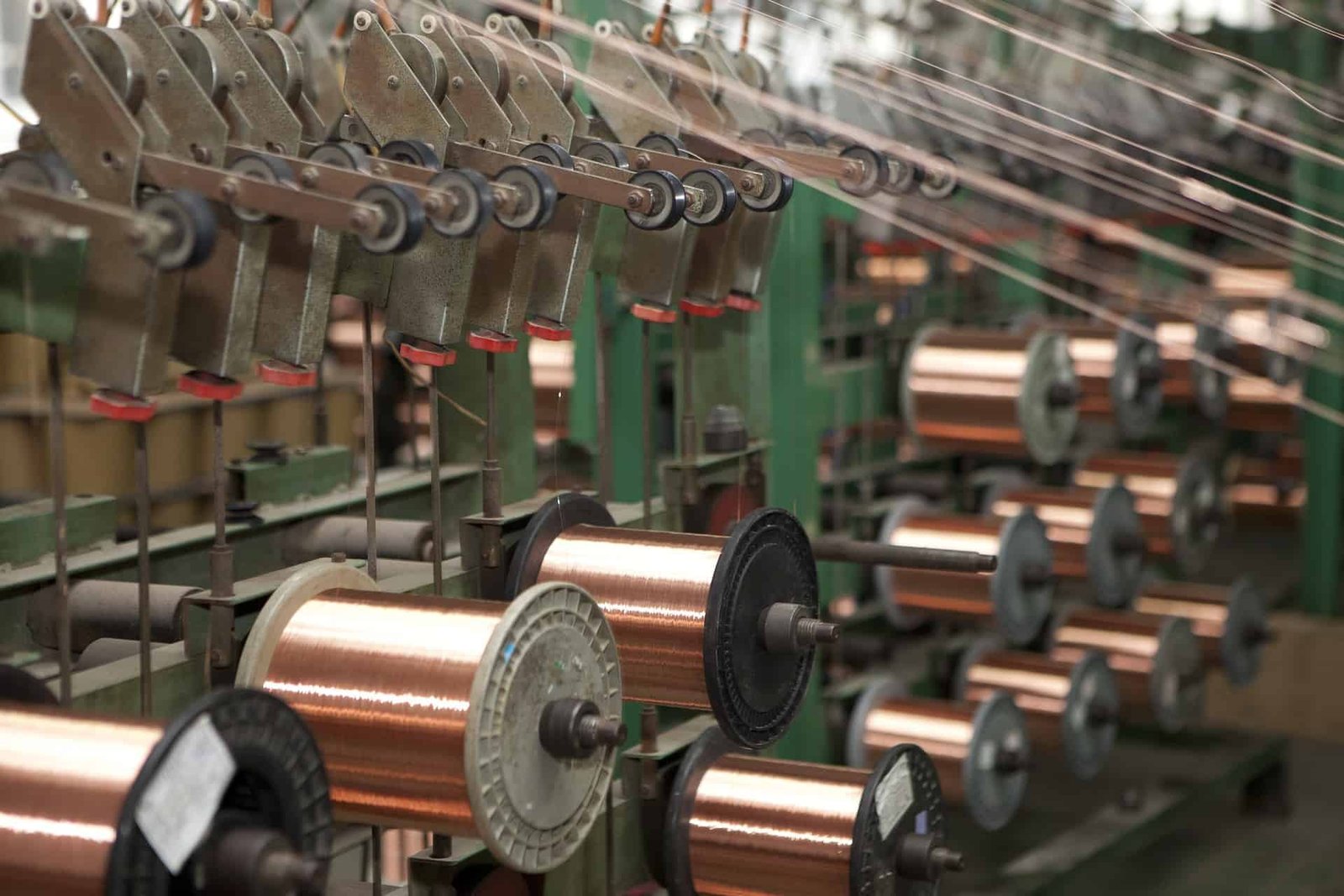

RLB Enameled Copper Wire is produced using advanced multi-pass coating and curing lines with precise temperature and tension control. Every batch undergoes comprehensive testing for dimensions, dielectric breakdown voltage, elongation, adhesion, heat shock, and continuity of insulation. Full traceability and mill certificates (including IEC/NEMA test reports) are provided with each delivery.
Image Placement Suggestion: Enameling production line image (use sxiDO or VLMsB).
التعبئة والتغليف والخدمات اللوجستية

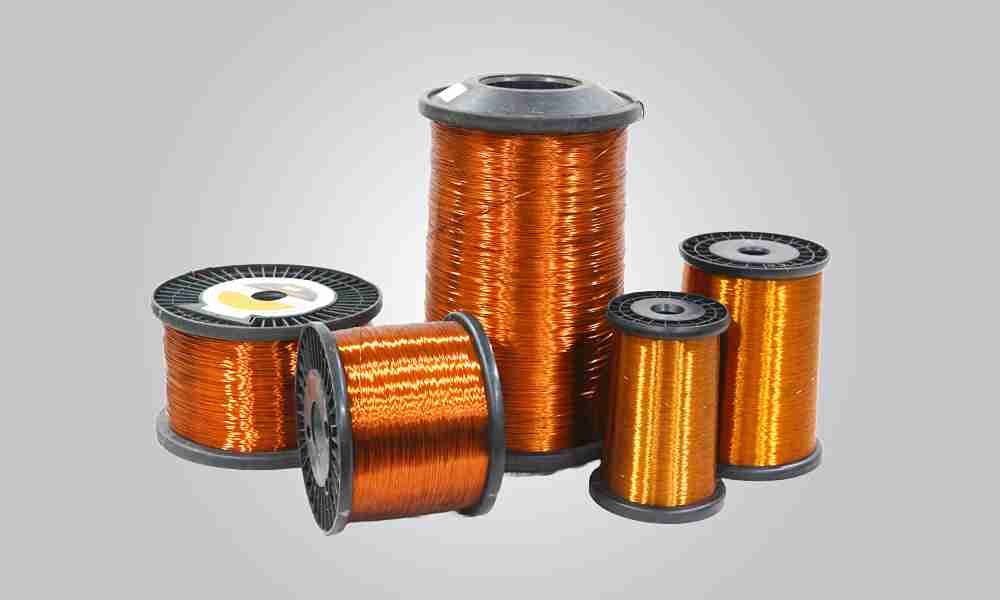

Supplied on high-quality plastic spools (standard and custom sizes) designed for smooth unwinding and protection during transport and storage. Spools are suitable for automatic feeding into high-speed winding machines. Export packaging includes moisture protection and sturdy palletization for sea or land shipment to Middle East destinations.
Why Choose RLB as Your Enameled Copper Wire Partner
- جودة موثوقة — Consistent enamel thickness, dielectric performance, and mechanical properties reduce winding defects and improve production yield.
- Technical Solutions — Expert support in selecting the right thermal class, enamel type, and corona-resistant grade for your specific motor, transformer, or compressor application.
- Customization Capability — Flexible options for diameter, insulation build, self-bonding, and special requirements.
- Long-Term Cooperation — Stable supply, transparent communication, and partnership approach focused on your production efficiency and product competitiveness.
- Regional Strength — Deep understanding of GCC operating conditions (high ambient temperatures, dust, continuous-duty applications) and strong experience supporting Saudi Vision 2030 manufacturing and infrastructure projects.
استفسر الآن — Contact our technical team today for detailed specifications, samples, current pricing, or a customized solution tailored to your winding application. Whether you need standard grades or high-performance corona-resistant and high-temperature enameled wire, we are ready to support your success with reliable quality and professional service.
