In today’s high-speed cable manufacturing industry, the right bobbin is essential for maintaining production efficiency, cable quality, and equipment reliability. The PN310-PN800 series PN Plastic Bobbin, crafted from premium 301 ABS engineering plastic, is purpose-built for high-speed stranding machines, fiber optic cable lines, and communication cable production. These lightweight, high-precision plastic reels offer outstanding dynamic balance, durability, and customization flexibility, helping cable manufacturers reduce downtime, minimize cable damage, and maximize output.
1. Key Applications of PN Plastic Bobbins
The PN310 to PN800 plastic bobbins are widely used across the cable industry for:
- High-speed stranding and twisting of fiber optic cables (fiber optic cable production)
- Communication cables, data cables, coaxial cables, and armored cables
- Precision take-up and pay-off processes in extrusion lines, bunching machines, and stranding equipment
- Fine wire, enameled wire, and specialty alloy wire winding
Compared to traditional metal or wooden reels, these ABS plastic bobbins are significantly lighter, better balanced, and gentler on delicate cable insulation—making them ideal for high-speed lines running at thousands of RPM with minimal vibration and cable surface defects.
2. Structural Design & Engineering

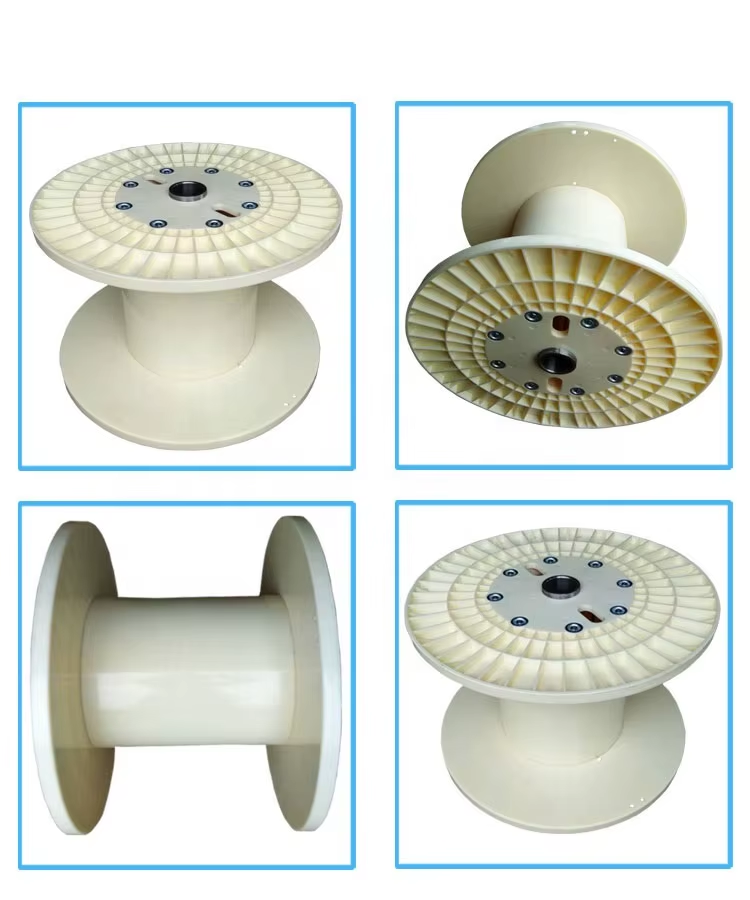

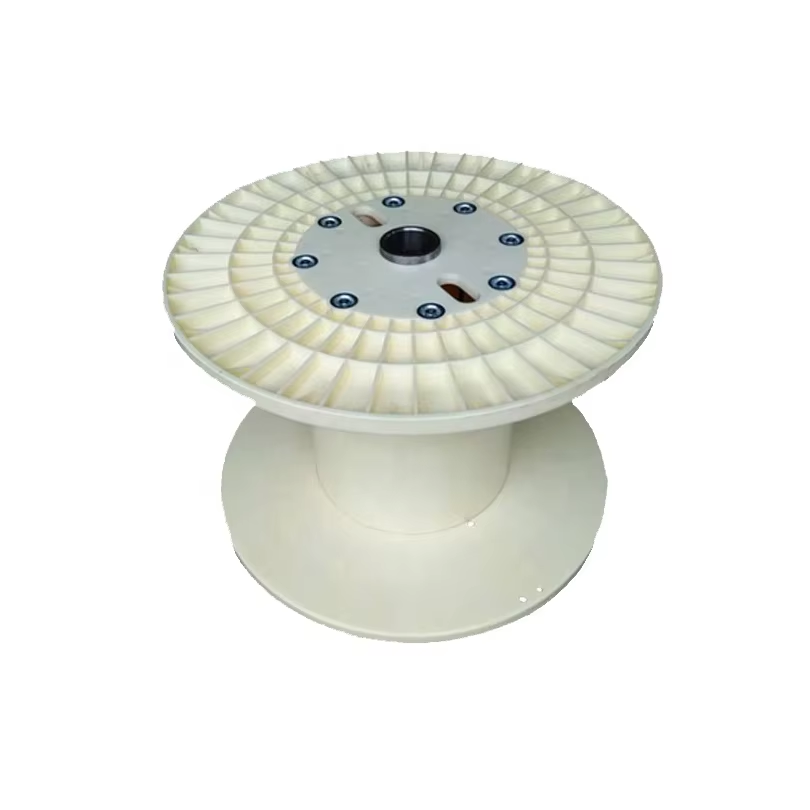

Each PN plastic bobbin features a classic double-flange, one-piece injection-molded design for maximum strength and concentricity. Key structural elements include:
- Flanges – Smooth, reinforced surfaces that prevent uneven winding and cable slippage
- Barrel (Drum) – Precision-molded central body with exact dimensions for consistent cable layering
- Center Bore (D3) – Standard sizes ranging from 25 mm to 127 mm, compatible with most stranding machine arbors

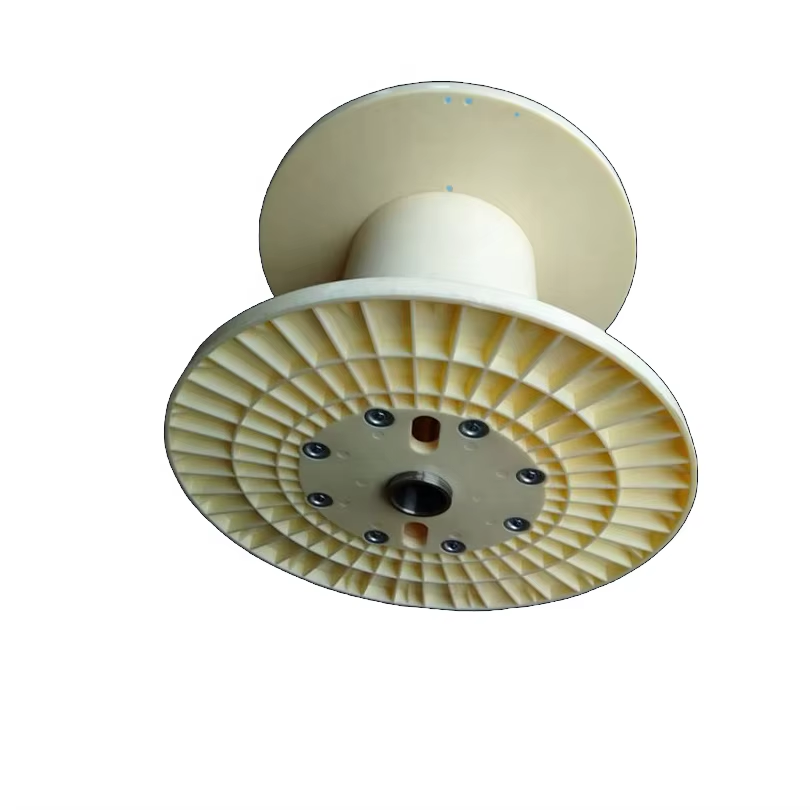

- Internal ribs and rounded edges – Enhanced rigidity, impact resistance, and deformation prevention

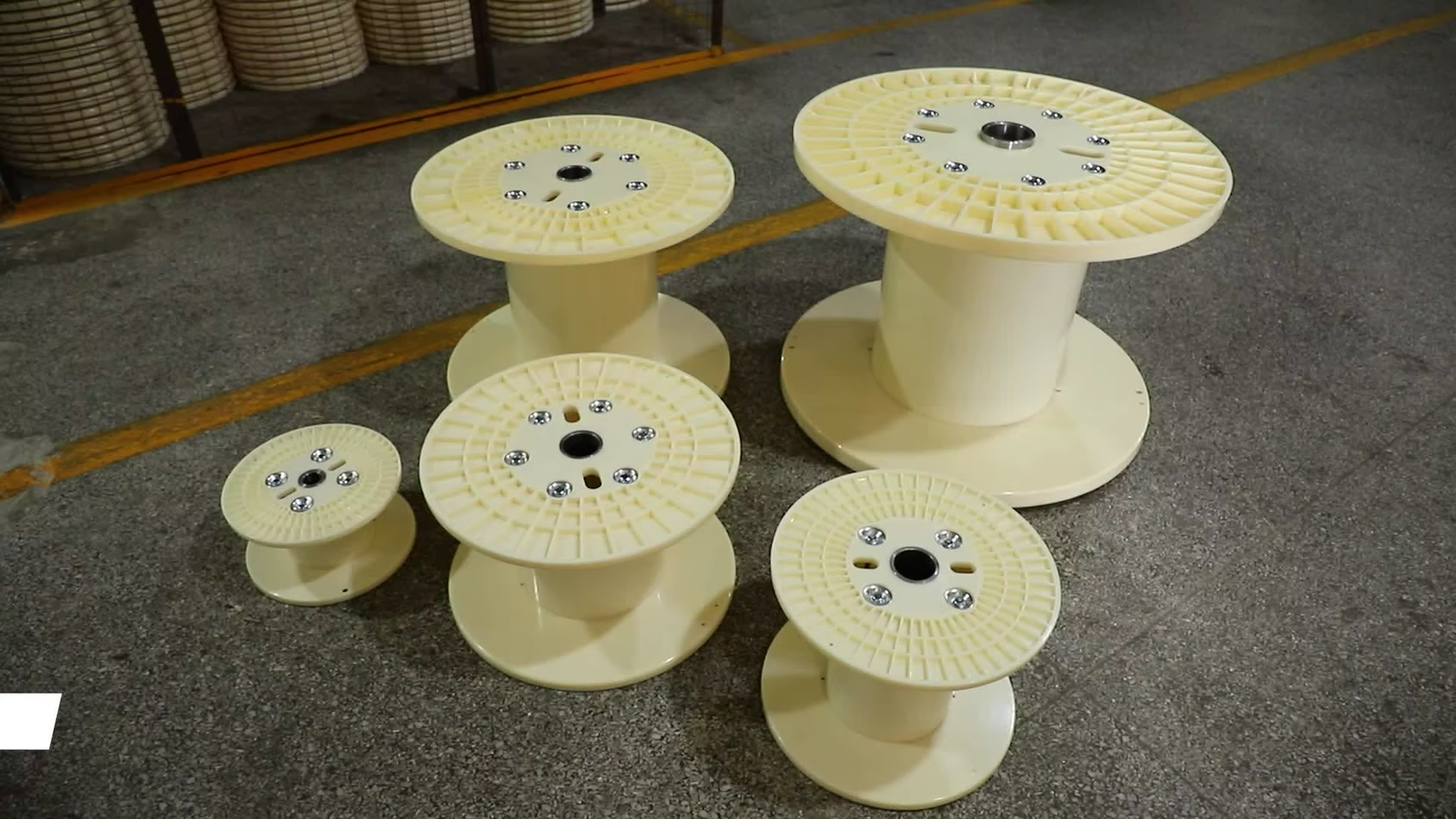

Flange diameters range from approximately 315 mm (PN310/PN315) up to 800 mm (PN800), covering everything from small-batch precision cables to large-capacity fiber optic and communication cable production.
3. Outstanding Features & Benefits
- Superior Dynamic Balance – Precision ABS injection molding ensures minimal vibration at high speeds, extending machine life and reducing cable breaks.
- Lightweight Construction – 30–50% lighter than metal reels, improving operator ergonomics and lowering handling costs.
- High Durability & Corrosion Resistance – 301 ABS engineering plastic offers excellent impact strength, chemical resistance, and long-term dimensional stability—even under repeated use in demanding factory environments.
- Low Friction Surface – Ultra-smooth finish protects cable insulation from scratches while allowing smooth pay-off and take-up.
- Full Customization Available – Tailor flange diameter, barrel width, bore size, color, and reinforcement structure to match your exact production requirements.
These features make the PN series the preferred choice for leading cable manufacturers seeking reliable, high-performance plastic bobbins.
4. Material & Industry Standards
All PN310-PN800 plastic bobbins are manufactured using high-grade 301 ABS engineering plastic, chosen for its superior mechanical properties, processability, and compliance with cable industry safety and environmental standards. Production follows international guidelines similar to GB4004, DIN 46395, and equivalent specifications for plastic reels.

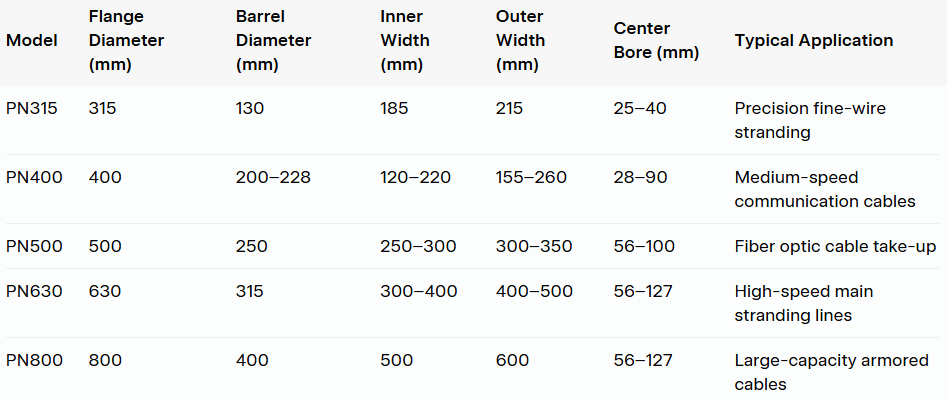

Typical technical specifications (custom sizes available upon request):
5. Why Choose PN310-PN800 Plastic Bobbins?
In high-speed cable production, bobbin performance directly impacts your bottom line through higher yield, lower maintenance, and reduced scrap. The PN series delivers measurable advantages in weight, balance, and customization while meeting strict environmental and reuse requirements. Trusted by international cable producers, these ABS plastic reels help modernize production lines and lower overall operating costs.
