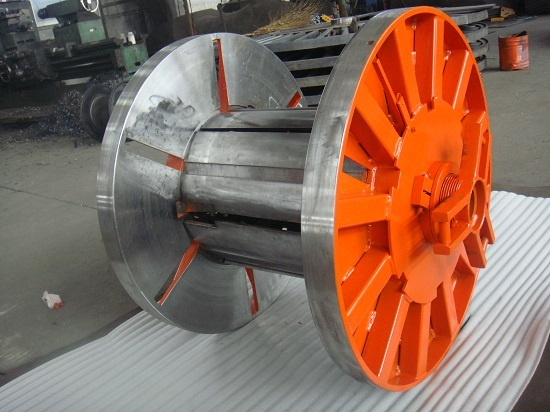

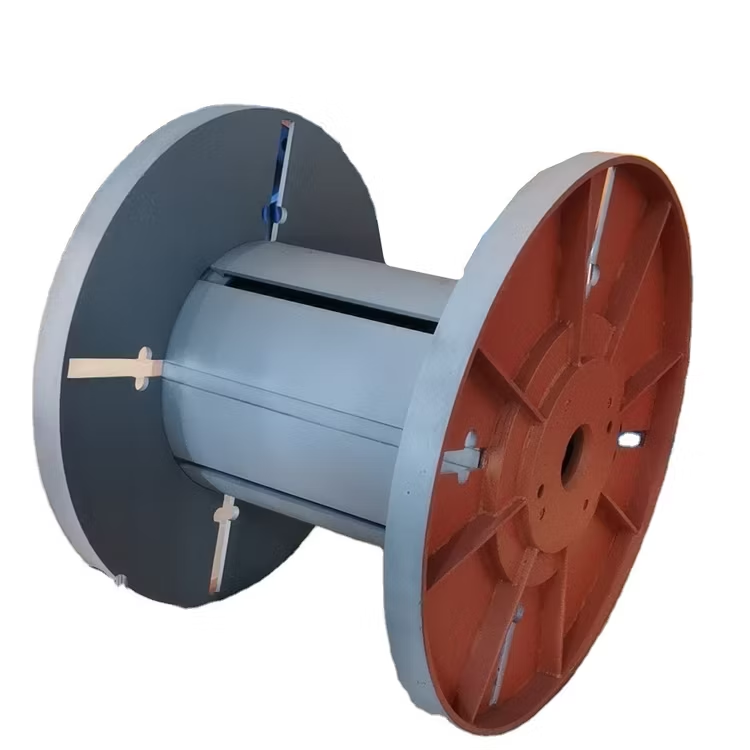

In the competitive wire and cable manufacturing sector, efficient coil packaging and logistics play a critical role in controlling costs and improving supply chain efficiency. The PN Collapsible Steel Bobbin (also known as take-apart steel bobbin, dismountable reel, or PND series collapsible steel reel) is engineered specifically for this purpose. Featuring a bolted modular design with removable flanges and barrel sections, these heavy-duty pressed steel bobbins allow manufacturers to wind wire or cable, apply packing tape directly on the reel, then quickly disassemble the bobbin—leaving a compact, self-supporting strapped coil ready for transport or downstream processing. This innovative take-apart solution reduces shipping weight, saves storage space, and maximizes bobbin reusability.
1. Primary Applications of PN Collapsible Steel Bobbins
PN Collapsible Steel Bobbins are widely used across the wire and cable industry for:
- Packaging of steel wire, copper wire, aluminum wire, alloy wires, and stranded conductors
- Finished power cables, communication cables, armored cables, and specialty cables
- Take-up and pay-off operations in stranding, bunching, drawing, and extrusion lines
- Creating reel-less packaged coils for direct sale, export, or next-process feeding
The bolt-connected structure makes these bobbins ideal for high-volume production where coils of varying widths must be handled efficiently. After winding and strapping, the bobbin collapses easily, eliminating the need to ship heavy steel reels and significantly lowering logistics expenses.
2. Structural Design & Engineering
Each PN collapsible steel bobbin is constructed from premium pressed steel plates with a robust, modular take-apart design:
- Pressed steel flanges – High-rigidity, precision-formed for excellent concentricity and load-bearing capacity
- Bolted assembly system – High-strength bolts allow fast assembly, disassembly, and re-use
- Removable barrel and flange sections – Enable adjustable coil widths to meet diverse packaging needs
- Reinforced hubs and support ribs – Ensure stability under heavy loads and high-speed winding
- Smooth inner surfaces – Prevent cable damage and ensure uniform layering
This flexible structure supports flange diameters from 630 mm up to 1250 mm and larger, making the PN series suitable for everything from medium-gauge wires to large-diameter power cables.
3. Key Features & Benefits
- Rapid Take-Apart Functionality – Bolted design enables quick disassembly after packing, simplifying coil removal and bobbin reuse
- Flexible Coil Width Handling – Removable components accommodate coils of different widths without multiple bobbins
- Exceptional Durability – Heavy-duty pressed steel construction delivers long service life even under continuous industrial use
- Logistics & Handling Advantages – Significantly easier lifting, stacking, and transport compared to fixed reels
- Cost & Space Savings – Ship only the strapped coil, reducing freight costs and warehouse requirements
- Full Customization Available – Dimensions, bore size, load capacity, and surface treatment can be tailored to exact customer specifications
These advantages make PN collapsible steel bobbins a preferred choice for leading cable producers seeking to optimize packaging efficiency.
4. Material & Industry Standards
PN Collapsible Steel Bobbins are manufactured from high-grade pressed steel plates, chosen for superior strength, rigidity, and dimensional stability. Flange dimensions and overall specifications are produced in strict accordance with:
- GB4004-83
- JB/T8997.4-1999
- DIN 46395 / DIN 46397
- Or fully customized to client drawings and requirements

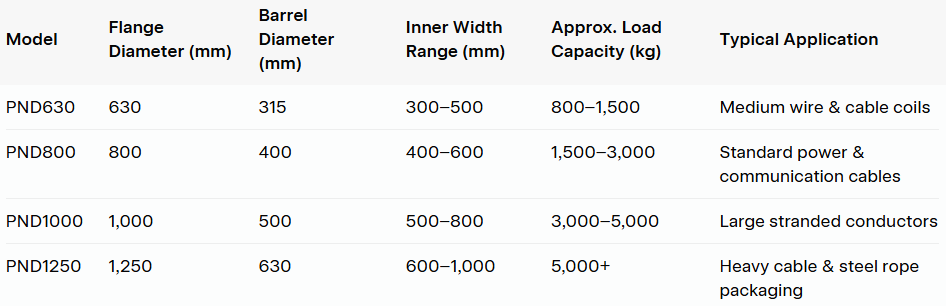

Typical technical specifications (custom sizes and capacities available upon request):
5. Why Choose PN Collapsible Steel Bobbins?
For wire and cable manufacturers, the PN Collapsible Steel Bobbin delivers measurable improvements in packaging speed, logistics efficiency, and operational cost control. Its reusable, modular design supports sustainable manufacturing practices while meeting the demands of modern just-in-time delivery and export markets.
