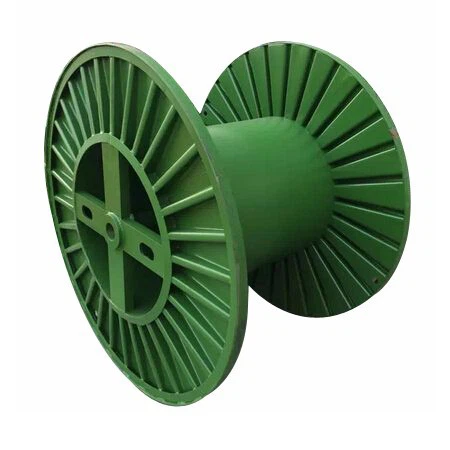

Corrugated Cable Drums PN800 To PN5000 | Heavy-Duty Reinforced Steel Reels for High-Voltage Cable Production

In high-volume wire and cable manufacturing, the performance of process bobbins directly determines production speed, coil quality, and long-term equipment reliability. The PN800-5000 Corrugated Cable Drums (also known as PN Corrugated Bobbin or corrugated steel cable reels) are heavy-duty pressed steel bobbins featuring a distinctive reinforced corrugated barrel and flange design. Engineered for superior rigidity and strength-to-weight performance, these bobbins are widely used in stranding, extrusion, cabling, and armoring lines for power cables, steel ropes, and stranded conductors.

أضف للمقارنة

أضف إلى قائمة الأمنيات

التصنيف: الأسلاك والكابلات الوسوم: corrugated cable drums, corrugated steel bobbin, heavy duty steel reel, high voltage cable reel, pn corrugated bobbin, معدات كابلات موثوقة, xlpe cable drum

استفسر الآن

الوصف

In the high-volume wire and cable manufacturing industry, choosing the right process bobbin is critical for maintaining production efficiency, coil integrity, and long-term equipment reliability. The PN800-5000 Corrugated Cable Drums (also known as PN Corrugated Bobbin or corrugated steel cable reels) are heavy-duty pressed steel bobbins featuring a reinforced corrugated barrel and flange design. Engineered for superior rigidity and strength-to-weight performance, these bobbins are widely used in stranding, extrusion, cabling, and armoring lines for power cables, steel ropes, and stranded conductors.

Their innovative corrugated structure provides exceptional resistance to deformation under high tension and high-speed operation, making them the preferred choice for both production take-up/pay-off and finished coil handling.

1. Description & Primary Applications

PN Corrugated Cable Drums PN800-5000 are specifically designed as robust process and production bobbins for:

Cable manufacturing (power cables, communication cables, XLPE insulated cables)
Steel rope and strand production
High-voltage, medium-voltage, and low-voltage cable stranding, extrusion, cabling, and armoring equipment
Heavy-duty take-up and pay-off operations in modern wire and cable factories

The corrugated design ensures stable, vibration-free winding even with large-diameter or high-tensile materials, significantly improving productivity and reducing downtime.

2. Structural Design & Engineering

These bobbins are constructed from high-strength pressed steel plates using precision stamping and welding technology. The distinctive corrugated (ribbed) barrel and flange design is the core engineering feature:

Reinforced corrugated flanges for maximum bending strength and impact resistance
Corrugated barrel providing superior rigidity while keeping overall weight low
Precision-machined hub and support ribs for excellent concentricity and dynamic balance
Smooth contact surfaces that protect cable insulation and ensure uniform layering

This advanced structure delivers outstanding mechanical performance compared to traditional flat steel drums.

3. Key Features & Benefits

High-Strength Corrugated Construction — Ribbed design offers exceptional rigidity and deformation resistance
Optimal Strength-to-Weight Ratio — Lighter than solid drums yet capable of handling heavy loads
Superior Dynamic Balance — Precision manufacturing minimizes vibration at high speeds
Long Service Life & Reusability — Durable pressed steel withstands continuous industrial use
Versatile Production Use — Ideal for cable, rope, and strand manufacturing processes
Full Customization Available — Dimensions tailored to customer specifications

4. Industry Standards & Technical Parameters

PN800-5000 Corrugated Cable Drums are manufactured in strict accordance with international standards or fully customized to client requirements:

GB4004-83
JB/T8997.4-1999
DIN 46395

المواصفات الفنية (representative models):

Type	d₁ (mm)	d₂ (mm)	d₃ (mm)	d₄ (mm)	d₅ (mm)	e (mm)	L₁ (mm)	L₂ (mm)	V₁ (dm³)
800	800	400	102	–	28-40	160	600	500	188.5
900	900	450	–	–	–	–	670	560	267.2
1000	1000	500	–	80	28-40	160	750	630	371.1
1150	1150	560	–	–	–	–	850	710	524.6
1250	1250	630	160	–	–	–	950	800	732.4
1400	1400	710	–	–	–	–	1060	900	1029.1
1600	1600	800	–	–	–	–	1180	1000	1508.0
1800	1800	1000	140	100	–	–	1320	1120	1970.4
2000	2000	1120	–	–	–	–	1500	1250	2695.5
2240	2240	1250	158	125	70-130	300	1700	1400	3799.1
2500	2500	1500	–	–	–	–	1900	1600	5026.5
2800	2800	1800	168	140	–	–	2120	1800	6503.1
3150	3150	1900	194	160	–	500	2300	2000	9915.6

Note: Custom sizes, bore diameters, and surface treatments (painting or galvanizing) are available upon request.

5. Why Choose PN800-5000 Corrugated Cable Drums?

The corrugated steel design provides the perfect combination of high mechanical strength, reduced weight, and reliable performance for modern cable and rope production. Manufacturers benefit from higher winding speeds, better coil quality, lower maintenance, and extended bobbin lifespan — essential advantages in competitive production environments.
