In medium- and low-voltage power cable manufacturing, the laying-up stage is critical to final cable roundness, lay length consistency, and long-term electrical performance. The RLB 3-5 Core Power Cable Laying Up Machine (cage/cradle planetary type) is a high-precision, heavy-duty solution engineered specifically for stranding 3-, 4-, and 5-core power cables using round, straight-sector, or pre-spiral sector conductors.
Built with true 100% back-twist technology, independent AC servo or frequency-controlled drives, and advanced HMI+PLC control, this machine ensures superior cable geometry, minimal internal conductor stress, and high production efficiency. Optional filling (up to 24 bobbins) and online taping further enhance its versatility for complete cable production lines.
Processus technologique
- Pay-off Cradles — Insulated cores (round or sector) are loaded into rotating planetary cradles with independent back-twist capability.
- Planetary Cage Rotation (100% Back-Twist) — The cage rotates while each cradle maintains bobbin orientation, applying precise back-twist to eliminate torsional stress.
- Haul-Off — Dual-wheel capstan (for smaller cables) or heavy-duty caterpillar (for larger power cables) provides stable, synchronized traction.
- Remplissage et ruban adhésif optionnels — Yarn fillers from up to 24 bobbins and semi-tangential taping heads can operate simultaneously.
- Prendre — Large drum take-up with traverse ensures neatly wound, high-quality finished cable.
This process produces multi-core power cables with excellent roundness, uniform lay length, and low internal stress — directly translating to superior electrical reliability and easier installation.
Fonctionnalités avancées et avantages du processus
- True 100% Back-Twist Stranding — Delivers excellent roundness, stable lay length, and minimal conductor stress. Essential for power cables requiring superior bending performance and long service life.
- Independent Servo / AC Drives — Main rotor, haul-off (capstan or caterpillar), and take-up operate independently for precise synchronization and automatic pitch adjustment.
- Intelligent HMI+PLC Control — Easy pre-setting of laying-up pitch, speed synchronization, real-time monitoring, and production data logging.
- Flexible Haul-Off Options — Interchangeable dual-wheel capstan or heavy-duty caterpillar to match cable size and production requirements.
- Optional Filling & Taping Integration — Supports up to 24 filling bobbins and compatibility with semi-tangential taping machines for simultaneous laying-up and taping.
- Manipulation robuste des bobines — Side, front, or back crane loading for fast changeovers and reduced downtime.
- Heavy-Duty Construction — Premium components and proven design for stable 24/7 operation with minimal maintenance in harsh industrial environments.

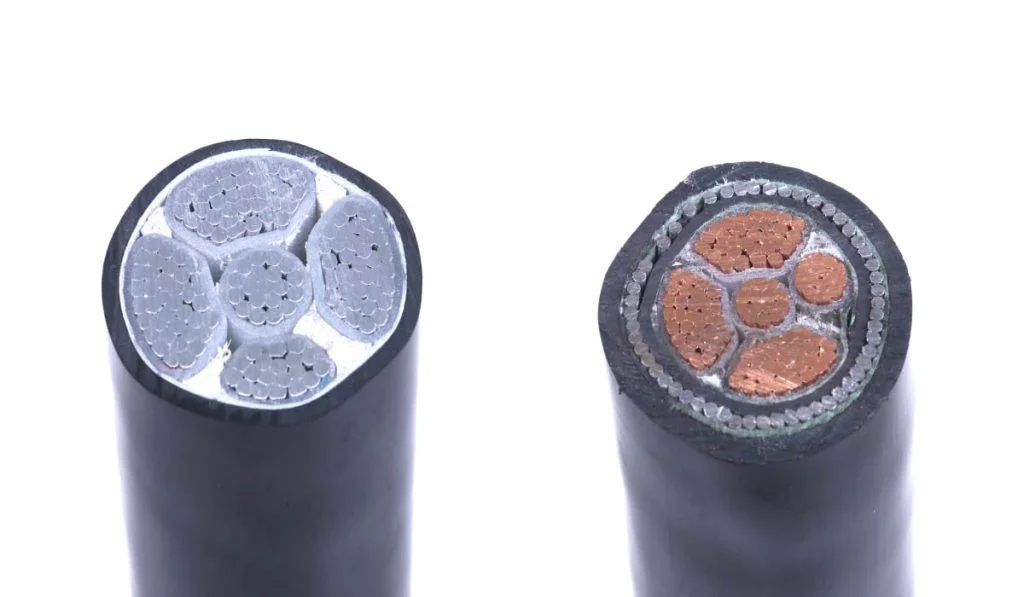

Conductor Range: Copper ≥ Φ1.5 mm | Aluminum ≥ Φ1.7 mm. Handles round cores (16–300 mm²), sector cores (16–240 mm²), and pre-spiral cores (up to 400 mm² depending on model).
Spécifications techniques
1+3 Configuration (4 Bobbins)
| Modèle | Drum φ (mm) | Cable Section Round Cores (mm²) | Cable Section Sector Cores (mm²) | Câble fini φ (mm) | Vitesse du rotor (tr/min) | Vitesse de ligne (m/min) | Main Motor Power (kW) |
|---|
| KP100 | 1000 | 16–240 | 16–240 | 60 | 55 | 60 | 55 AC |
| KP125 | 1250 | 25–300 | 16–240 | 80 | 36 | 60 | 55 AC |
| KP160 | 1600 | 25–300 | 16–240 | 100 | 24 | 45 | 55 AC |
1+4 Configuration (5 Bobbins)
| Modèle | Drum φ (mm) | Cable Section Round Cores (mm²) | Cable Section Sector Cores (mm²) | Câble fini φ (mm) | Vitesse du rotor (tr/min) | Vitesse de ligne (m/min) | Main Motor Power (kW) |
|---|
| KP100 | 1000 | 16–240 | 16–240 | 60 | 55 | 60 | 65 AC |
| KP125 | 1250 | 25–300 | 16–240 | 80 | 30 | 60 | 65 AC |
| KP160 | 1600 | 25–300 | 16–240 | 100 | 20 | 45 | 65 AC |
Take-up and pay-off drum sizes can be customized to customer requirements.
Applications principales

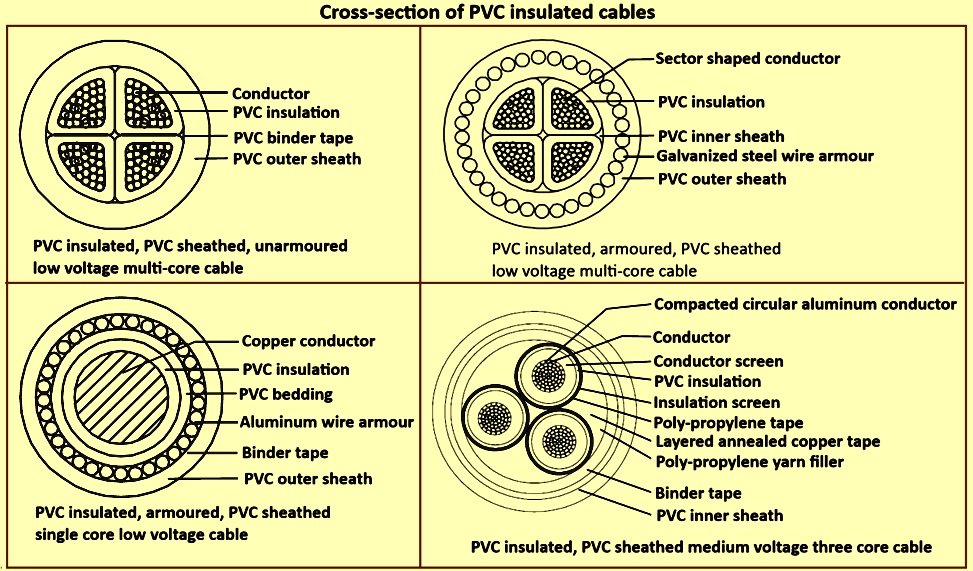

- 3–5 core low- and medium-voltage power cables (PVC, PE, XLPE, rubber insulated)
- Conception de conducteurs ronds, sectoriels et pré-spiraux
- ABC overhead bundled cables
- Control and instrumentation multi-core cables
- Rubber-insulated flexible power cables
Ideal for cable plants in Saudi Arabia and the GCC expanding capacity for Vision 2030 infrastructure, renewable energy integration, data centers, and grid modernization projects.
Why Choose the RLB 3-5 Core Power Cable Laying Up Machine?
Qualité fiable — Heavy-duty construction with premium servo/AC motors, robust bearings, and proven HMI+PLC controls ensures years of stable 24/7 operation and consistently low scrap rates. Service personnalisé — Fully tailored to your core count, conductor type (round/sector), haul-off preference, filling/taping requirements, and factory layout in Saudi Arabia & GCC. Partenariat à long terme — Complete turnkey installation, English-language operator training, 24/7 remote diagnostics, local spare parts support, and performance-based maintenance contracts. Prêt pour la Vision 2030 — High-efficiency technology that supports local power cable manufacturing growth and green energy infrastructure development.
FAQ détaillée
Q1: What is the main advantage of planetary laying-up over rigid stranding?
A: Planetary design provides true 100% back-twist, superior roundness, minimal conductor stress, and better flexibility — especially important for power cables that require excellent bending performance and long-term electrical reliability.
Q2: Can the machine handle both round and sector conductors?
A: Yes. It fully supports round cores (16–300 mm²), sector cores (16–240 mm²), and pre-spiral cores (up to 400 mm² on larger models).
Q3: What haul-off options are available?
A: Dual-wheel capstan for medium cables or heavy-duty caterpillar for larger power cables. The systems are interchangeable according to your production mix.
Q4: Is filling and taping supported?
A: Yes. Optional yarn filler plate for up to 24 filling bobbins and full compatibility with semi-tangential taping machines for simultaneous laying-up and taping.
Q5 : La machine convient-elle aux lignes clés en main complètes ?

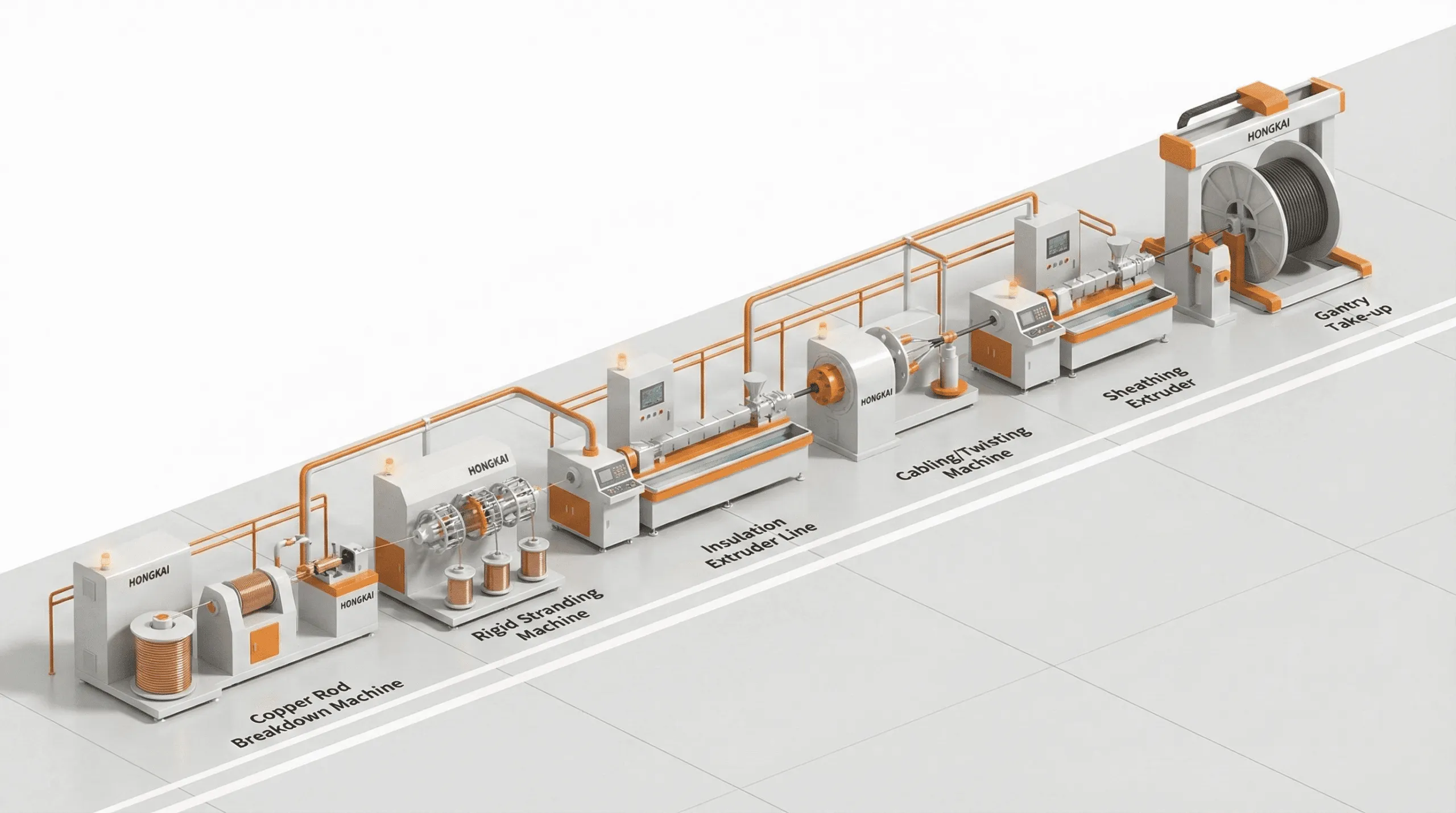

A: Yes. As a leading cable machinery supplier, we provide full integration with pay-off, extrusion, armoring, testing, and other upstream/downstream equipment.
Q6: Do you provide installation, training, and support in Saudi Arabia?
A: Yes. Full turnkey installation and commissioning, operator training in English, 24/7 remote diagnostics, and local spare parts support are standard.
Q7: What maintenance and uptime can I expect?
A: Designed for minimal maintenance with heavy-duty components and accessible service points. Most customers report high uptime with routine preventive maintenance.
Why Choose RLB 3-5 Core Power Cable Laying Up Machine?
- Qualité fiable: Heavy-duty construction with premium servo motors and proven HMI+PLC controls for years of stable 24/7 operation.
- Service personnalisé: Tailored to your core count, conductor type, haul-off preference, and factory layout in Saudi Arabia & GCC.
- Partenariat à long termeInstallation complète, formation des opérateurs, fourniture de pièces détachées, diagnostic à distance et contrats de maintenance basés sur la performance.
- Prêt pour la Vision 2030: High-efficiency technology supporting local power cable manufacturing and green energy infrastructure.
