Qu'est-ce que le fil de cuivre étamé recuit ?

In modern cable manufacturing, conductor material selection directly determines product reliability, installation efficiency, service life, and total cost of ownership. For projects exposed to moisture, elevated temperatures, vibration, or aggressive atmospheres—particularly large-scale infrastructure in coastal or high-ambient-temperature regions—annealed tinned copper wire has become the preferred choice among discerning cable manufacturers and EPC contractors.

This conductor begins as high-purity electrolytic tough pitch (ETP) or oxygen-free copper (OFC). It is precision-drawn to the required diameter, annealed to achieve a soft temper, and then coated with a uniform layer of high-purity tin. The result is a conductor that maintains excellent electrical conductivity while delivering superior resistance to oxidation, corrosion, and long-term degradation.

Qu'est-ce que le recuit et pourquoi est-il important pour le fil de cuivre ?

Le recuit est un traitement thermique contrôlé effectué après tréfilage. Le cuivre est chauffé à environ 400–550 °C (selon l'équipement et les propriétés souhaitées) dans une atmosphère protectrice (souvent un gaz inerte ou sous vide pour le recuit brillant) puis refroidi à une vitesse précise.

Key metall

This process delivers critical metallurgical improvements:

• Relieves internal stresses induced during drawing
• Recristallise la structure du grain, restaurant la ductilité et la malléabilité
• Slightly enhances electrical conductivity by reducing lattice defects
• Produces soft-temper wire that can be repeatedly bent, stranded, or wound without cracking or work-hardening

Typical mechanical properties of annealed (soft temper) copper wire:

• Elongation: typically ≥25–40% (ensuring excellent flexibility)
• Reduced tensile strength compared with hard-drawn wire (facilitates handling and complex stranding)
• Superior fatigue resistance under repeated flexing and vibration

Without annealing, hard-drawn copper becomes brittle and unsuitable for most modern flexible cable constructions or tight conduit installations.

Qu'est-ce que l'étamage et comment le revêtement protecteur améliore-t-il les performances ?

Tinning applies a thin, uniform layer of high-purity tin (typically in the 1–5 μm range, or per customer specification) over the copper surface. Two primary industrial methods are used:

Electrolytic (electroplating) tinning: Delivers a thinner, brighter, and more uniform coating with precise thickness control—ideal for fine-gauge wires and high-speed production.

Hot-dip tinning: The wire passes through molten tin, forming a thicker coating with a beneficial intermetallic Cu₆Sn₅ layer at the interface. This provides robust adhesion and durability in severe environments.

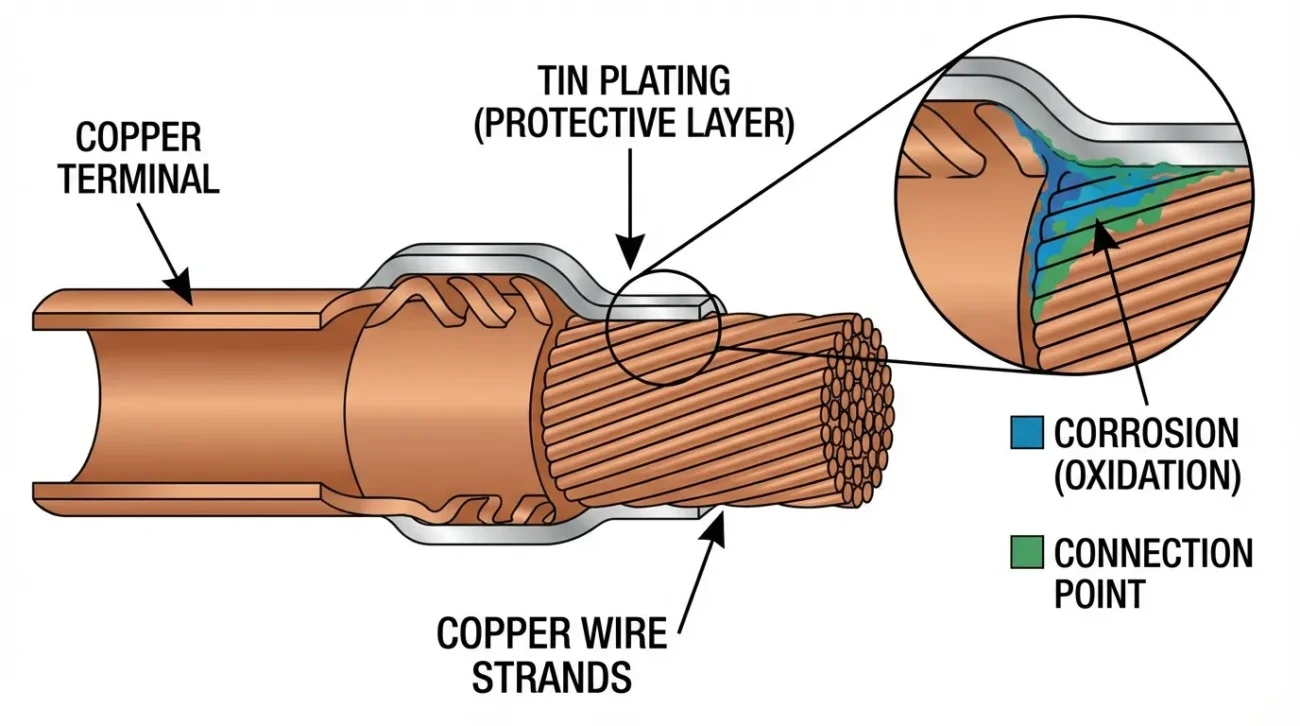

Primary performance advantages of the tin coating:

• Excellent resistance to atmospheric oxidation and corrosion (critical in humid, marine, salt-spray, or chemically aggressive conditions)
• Empêche la formation d'oxydes de cuivre qui augmentent la résistance de contact au fil du temps
• Superior solderability—tin accepts solder readily with minimal flux
• Improved performance at elevated temperatures (continuous operating temperature capability up to approximately 150°C with proper insulation)
• Maintains bright, clean surface appearance and consistent quality

The tin layer does not meaningfully reduce bulk electrical conductivity while dramatically extending real-world service life. Tin also acts as a sacrificial anode relative to copper, offering additional protection if the coating is locally damaged.conductivity while dramatically extending service life in real-world conditions.

L'avantage synergique du fil de cuivre étamé recuit

When annealing and tinning are combined, thWhen annealing and tinning are combined, the wire delivers an optimal balance of properties:

• Mechanical: Soft, highly flexible, easy to strand, braid, or wind into tight coils without damage
• Electrical: High conductivity with refined grain structure (typically ≥58–100% IACS depending on exact composition)
• Environmental: Long-term protection against oxidation, corrosion, and degradation in harsh climates
• Processing: Excellent performance on high-speed stranding, braiding, and automated harness assembly lines
• Reliability: Significantly reduced risk of field failures and warranty claims

This combination makes annealed tinned copper wire the material of choice wherever installation ease and decades of maintenance-free performance are required.

Procédé de fabrication du fil de cuivre étamé recuit

La production moderne suit généralement un flux continu ou semi-continu pour la cohérence et l'efficacité :

1. Tréfilage — La tige de cuivre de haute pureté est étirée à travers des filières successives jusqu'au diamètre cible (plage courante : de 0,05 mm pour les fils fins à plus de 3 mm pour les applications de puissance).
2. Recuit — Les fours de recuit continu avec un contrôle précis de la température et une atmosphère protectrice produisent une douceur uniforme et une surface brillante.
3. Nettoyage / Marinage — La préparation de surface élimine les oxydes et les contaminants.
4. Étamer — Laisation par immersion à chaud ou électrolytique garantit un revêtement uniforme et adhérent, sans trous d'épingle ni variations excessives d'épaisseur.
5. Refroidissement, Séchage et Contrôle Qualité — Refroidissement contrôlé, tests d'adhérence, contrôles dimensionnels, mesure de conductivité et inspection visuelle/microscopique.
6. Take-up — Precision spooling or coiling for downstream stranding or insulation processes.

Advanced production lines (such as the continuous annealing-tinning systems used in high-end cable factories) incorporate real-time process control, automatic tension regulation, and in-line quality monitoring to deliver wire that consistently meets or exceeds international standards.

Key Technical Properties & Typical Specifications

• Conductor Material: Electrolytic Tough Pitch (ETP) or Oxygen-Free Copper (OFC), high purity
• Temper: Soft / Annealed (fully annealed)
• Coating: Pure tin, uniform coverage
• Electrical Conductivity: ≥ 58–100% IACS (International Annealed Copper Standard), depending on exact composition and temper
• Elongation: Typically ≥ 25–40%
• Tensile Strength: Lower than hard-drawn (facilitates processing)
• Coating Thickness / Weight: Per ASTM B33 or customer specification (commonly measured in g/kg or μm)
• Surface: Bright, smooth, free from defects
• Solderability: Excellent

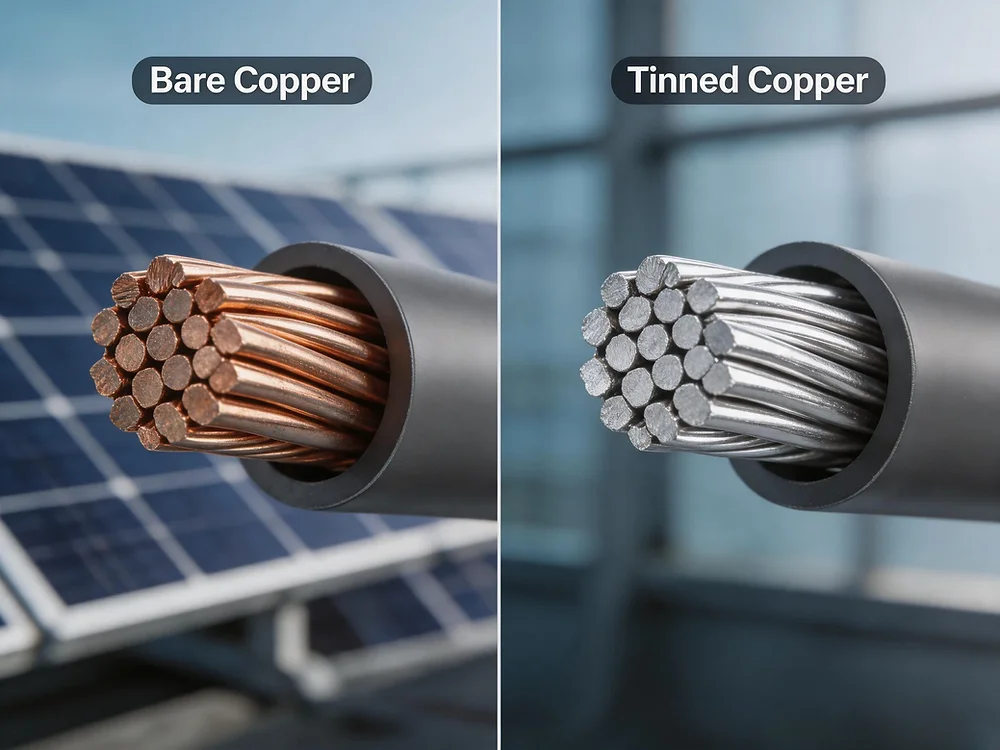

Comparison: Annealed Tinned Copper Wire vs Alternatives

Relevant International Standards

• ASTM B33 — Standard Specification for Tinned Soft or Annealed Copper Wire for Electrical Purposes (primary reference)
• ASTM B3 — Soft or Annealed Copper Wire
• ASTM B8 — Concentric-Lay-Stranded Copper Conductors
• IEC / EN / JIS equivalents for global projects
• Additional requirements often include coating adhesion, resistivity, and dimensional tolerances

Compliance with these standards ensures interoperability, safety, and acceptance in international infrastructure, energy, and transportation projects.

Applications principales

Automotive & Transportation — Battery cables, starting/charging circuits, and wiring harnesses that must withstand vibration, heat, and moisture while maintaining flexibility during high-speed assembly.

Marine et offshore — Shipboard cables and offshore platform wiring where superior resistance to saltwater corrosion and humidity is mandatory.

Aerospace & Defense — High-reliability interconnects where weight, flexibility, and decades of performance under extreme conditions are critical.

Electronics & Industrial Controls — Internal wiring, PCB jumpers, precision coils, and instrumentation cables requiring stable contact resistance and excellent solderability.

Motors, Transformers & Generators — Winding wire that forms easily into tight coils without damage and maintains performance under thermal cycling.

Telecommunications & Data Centers — Grounding and power distribution conductors in controlled or semi-harsh environments.

Renewable Energy & Infrastructure — Solar, wind, and grid cables in diverse climates, including coastal and high-temperature regions.

Middle East Infrastructure Focus — For mega-projects such as NEOM, Aramco developments, and other Vision 2030 initiatives, annealed tinned copper wire offers decisive advantages: resistance to high ambient temperatures and coastal salt spray, excellent flexibility for complex routing in energy and industrial installations, and extended service life that minimizes maintenance in remote or high-value assets.

Why Specifiers and Cable Manufacturers Choose Annealed Tinned Copper Wire

• Reduced field failures and warranty claims through superior long-term corrosion protection
• Faster, lower-risk installation and harness assembly due to excellent flexibility
• Consistent quality and processability on high-speed stranding and braiding equipment
• Compliance with global standards required for EPC, utility, and OEM projects (especially valuable for Middle East infrastructure, NEOM, Aramco, and export markets)
• Optimized total cost of ownership — longer service life offsets any modest premium versus bare copper

Supporting Your Production: Advanced Wire Processing Equipment

Producing consistent, high-specification annealed tinned copper wire at scale requires precision machinery. Modern continuous annealing-tinning lines deliver uniform softness, bright surfaces, and defect-free tin coatings at high throughput—exactly the capability needed to serve demanding B2B customers worldwide.

Whether you are expanding capacity, upgrading existing lines, or developing new cable products, equipment engineered for precise temperature control, atmosphere management, and uniform plating is essential to achieving repeatable quality that meets ASTM B33 and customer-specific requirements.

Foire aux questions (FAQ)

What does “annealed tinned copper wire” mean?

It refers to copper wire that has been heat-treated (annealed) to achieve a soft, ductile temper and then coated with a thin layer of pure tin for corrosion protection.

Is annealed tinned copper wire more conductive than bare copper?

Bulk conductivity is very similar or slightly higher due to the refined grain structure from annealing. The tin coating primarily protects long-term surface performance rather than altering bulk conductivity significantly.

When should I choose tinned over bare annealed copper wire?

Specify tinned wire for any application exposed to moisture, humidity, salt, chemicals, elevated temperatures, or where long-term solderability and stable contact resistance are required.

What standards govern annealed tinned copper wire?

ASTM B33 is the primary North American standard. Equivalent IEC, EN, and JIS standards apply in other regions. Always confirm specific diameter, coating weight, and mechanical requirements with your supplier.

Can annealed tinned copper wire be used for high-temperature applications?

Yes — the tin coating provides better performance at elevated temperatures compared with bare copper, although the maximum continuous operating temperature is still governed by the insulation material in the finished cable.

Conclusion

Annealed tinned copper wire represents the optimal combination of processing ease, electrical performance, and environmental durability. For cable manufacturers and OEMs serving global markets—particularly infrastructure, automotive, marine, and industrial sectors—it delivers the reliability and consistency that end customers demand.

By partnering with suppliers who understand both material science and precision manufacturing equipment, you can ensure your conductors meet the highest standards of quality and performance while supporting long-term project success.
