Galvanized Steel Wire For ACSR Conductor | High-Tensile Core Reinforcement for ACSR

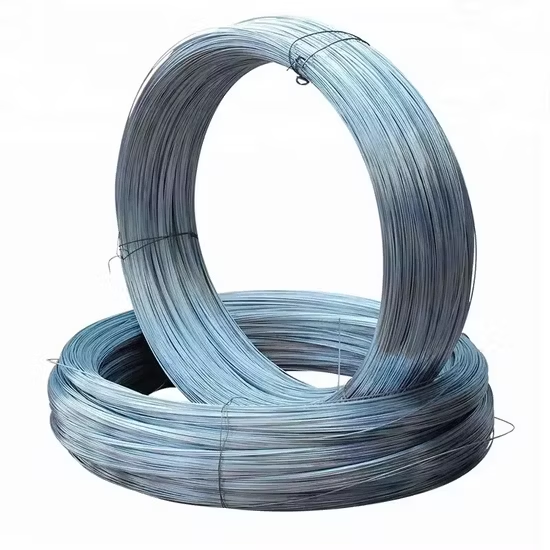

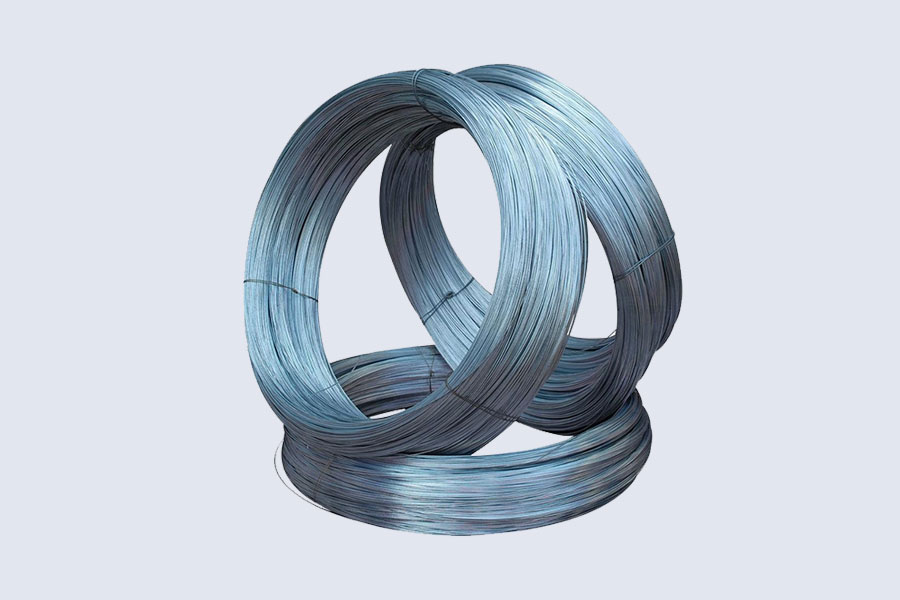

Galvanized Steel Wire for ACSR (also known as Galvanized Steel Core Wire for ACSR or GSW for ACSR) is a high-tensile, heavily galvanized steel wire engineered specifically as the core reinforcement for Aluminum Conductor Steel Reinforced (ACSR) overhead conductors and grounding wires. Produced from premium raw materials through advanced multi-stage drawing, annealing, and hot-dip galvanizing processes, it delivers exceptional mechanical strength, uniform zinc coating, and outstanding corrosion resistance — essential for long-span, high-reliability transmission lines in diverse and harsh environments.

Ajouter à la comparaison

Ajouter à la liste de souhaits

Catégorie : Fil et câble Étiquettes : acsr core wire, acsr reinforcement wire, galvanized steel core wire, galvanized steel wire for acsr, gsw for acsr, high tensile steel wire, reliable cable materials

Demande d'informations

Description

Galvanized Steel Wire for ACSR (également connu sous le nom de Galvanized Steel Core Wire for ACSR ou GSW for ACSR) is a high-tensile, heavily galvanized steel wire engineered specifically as the core reinforcement for Aluminum Conductor Steel Reinforced (ACSR) overhead conductors and grounding wires. Produced from premium raw materials through advanced multi-stage drawing, annealing, and hot-dip galvanizing processes, it delivers exceptional mechanical strength, uniform zinc coating, and outstanding corrosion resistance — essential for long-span, high-reliability transmission lines in diverse and harsh environments.

Key Applications

Core reinforcement in ACSR conductors for high-voltage and extra-high-voltage overhead transmission lines
Grounding conductors and earth wires in power utility networks
Messenger wires and supporting strands in telecommunication and power infrastructure

Its robust construction ensures the conductor maintains structural integrity under heavy wind, ice, and dynamic loads while providing long-term protection against atmospheric corrosion.

Outstanding Advantages

One of the largest galvanized steel wire producers in China with reliable global supply capacity
Wide diameter range: 0.57 mm – 4.8 mm, perfectly matched to ACSR core requirements
Premium raw material selection and full-process production monitoring
Highly stable performance with narrow tensile strength tolerance for consistent quality
Uniform and heavy zinc coating for superior long-term corrosion resistance
Smooth pay-off characteristics optimized for high-speed stranding machines

Manufacturing Standards

Fully compliant with major international specifications:

ASTM B498
BS 1052
AS 3607

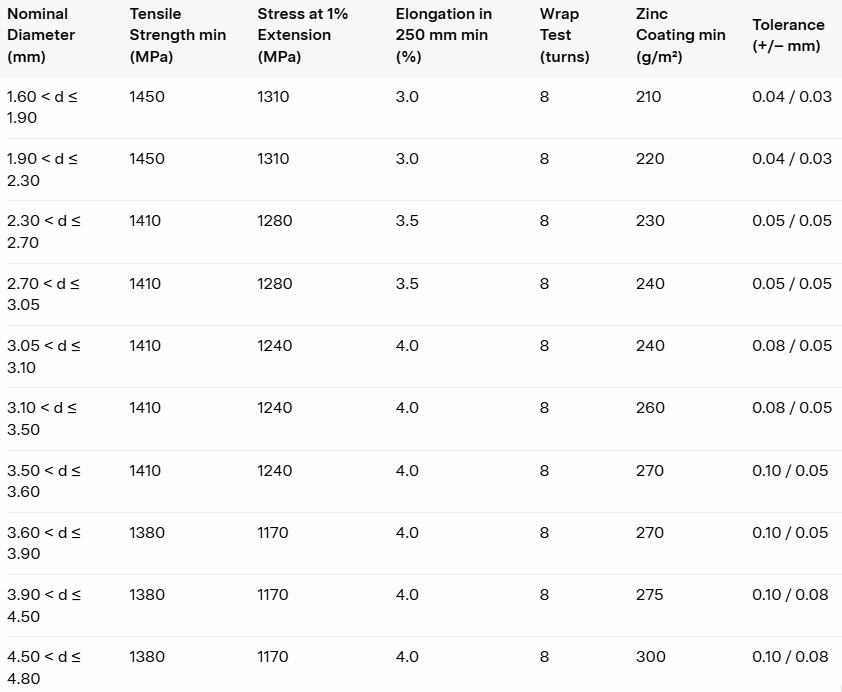

Technical Specifications (ASTM B498 Class A)

Production Process

Steel Wire Rod → Multi-stage Drawing → Annealing → Final Drawing → Hot-Dip Galvanization → Strict Quality Inspection → Packing

Packaging

Available in convenient coils or on robust wooden drums for safe transportation, storage, and efficient feeding into high-speed stranding machines. Custom packaging options are available upon request.

Galvanized Steel Wire for ACSR from RLB offers cable and conductor manufacturers superior mechanical performance, heavy zinc coating for long-term corrosion protection, and consistent quality — the reliable core solution for modern ACSR conductors and grounding systems.
