Semi-Conductive Bonded Shield Compound R0535

Semi-Conductive Bonded Shield Compound R0535 (also known as RO535) is a high-performance cross-linkable semi-conductive shielding material specifically engineered for medium-voltage (MV) XLPE insulated power cables rated up to 35 kV. Designed for high-temperature vulcanization (HTV) and CCV production lines, this bonded-type compound serves as both the conductor shield and bonded insulation shield, ensuring uniform electric field distribution, excellent interfacial adhesion, and long-term electrical stability in demanding power transmission applications.

Add to compare

Add to wishlist

Category: Insulation and Sheath Tags: bonded insulation shield, conductor shield compound, mv xlpe cable shield, r0535 shielding compound, semi conductive bonded shield

Inquiry Now

Description

Key Features and Advantages

Excellent Surface Smoothness & Processability: Delivers fine surface finish and superior extruding fluidity with minimal pre-cure or scorch risk.
Stable Volume Resistivity: Maintains consistent low resistivity at both 20°C and 90°C for reliable stress control.
Strong Bonding Performance: Forms excellent adhesion with XLPE insulation while remaining compatible with both copper and aluminum conductors.
Superior Mechanical & Thermal Properties: High tensile strength, excellent elongation retention after aging, and outstanding hot set performance.
Standards Compliance: Suitable for cables manufactured according to IEC 60502-2 and BS6622.

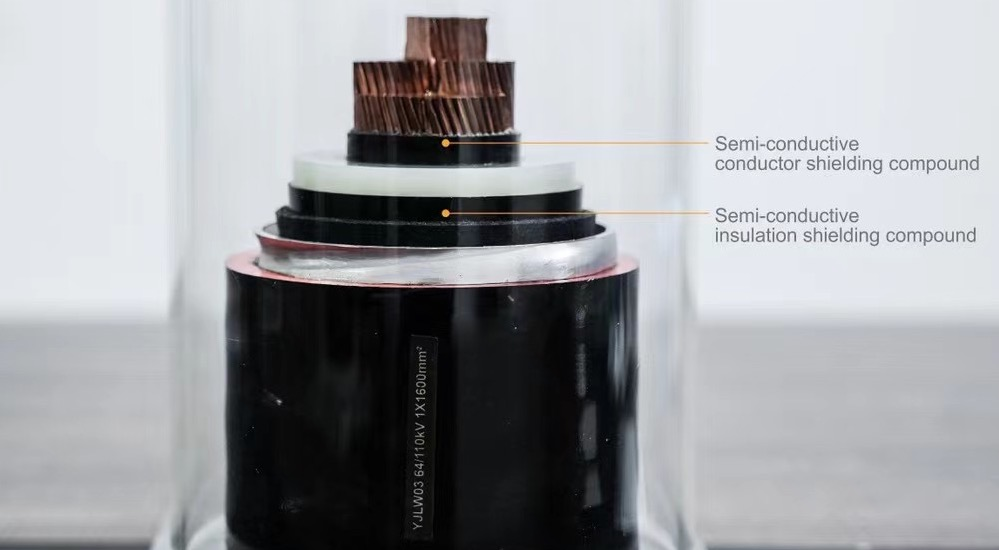

Semi-conductive conductor shielding compound introduction

Technical Specifications

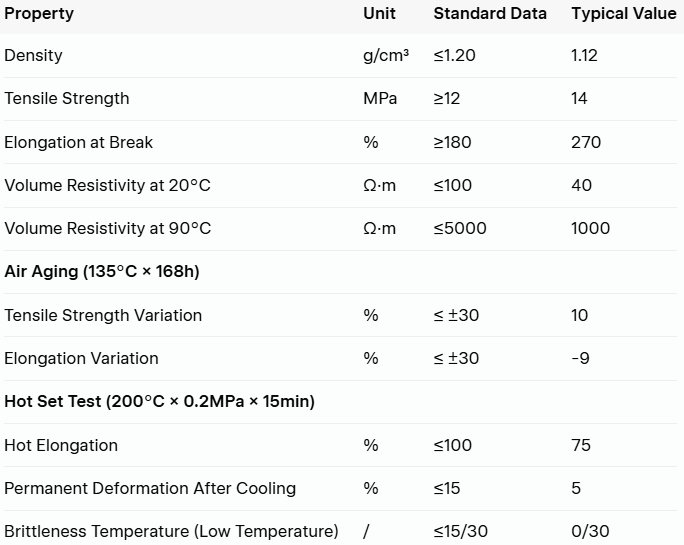

Technical Specifications (Physical & Electrical Properties)

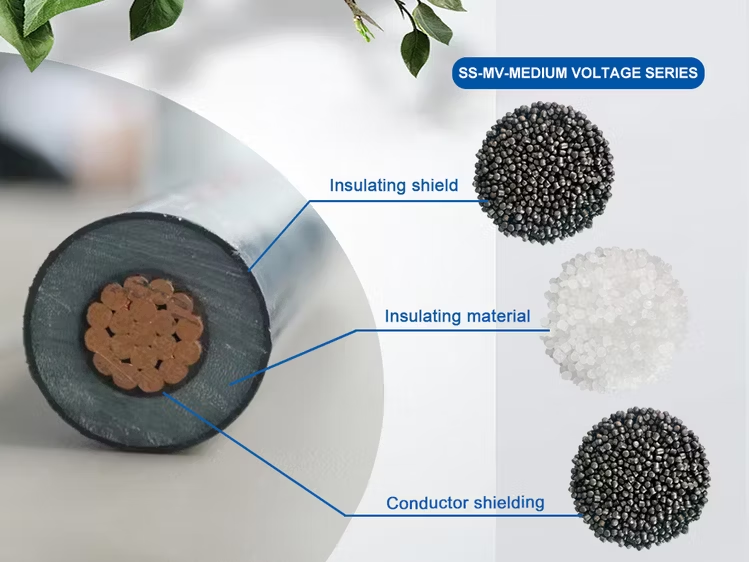

Cable Extrusion Flowability Shield, Anti-Scorching Properties Shield

Recommended Processing Conditions

R0535 is optimized for conventional PE extruders. Typical temperature settings:

Zone1#	Zone2#	Zone3#	Zone4#
85°C	90°C	100°C	105°C

Flange: 105°C
Tube: 105°C
Feeding: Water Cooling
Screw: 65°C

Recommend using steel-wire filter mesh with 40 meshes at most. Temperature settings are typical guidelines — adjust according to actual equipment and operating conditions for optimal results.

Packaging, Shelf Life & Storage

Packaging: 600 kg cartons on fumigated or non-fumigated pallets, externally wrapped with stretch film.
Shelf Life: 12 months from date of manufacture.
Storage Conditions: Store in a cool, dry, well-ventilated place, away from direct sunlight and moisture.

Semi-Conductive Bonded Shield Compound R0535 is the ideal choice for cable manufacturers seeking consistent quality, superior bonding performance, and reliable electrical properties in 35 kV XLPE power cables.
