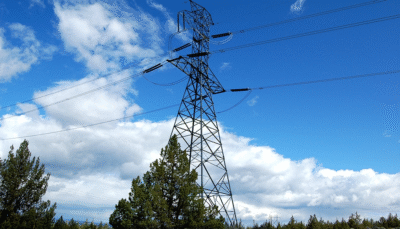

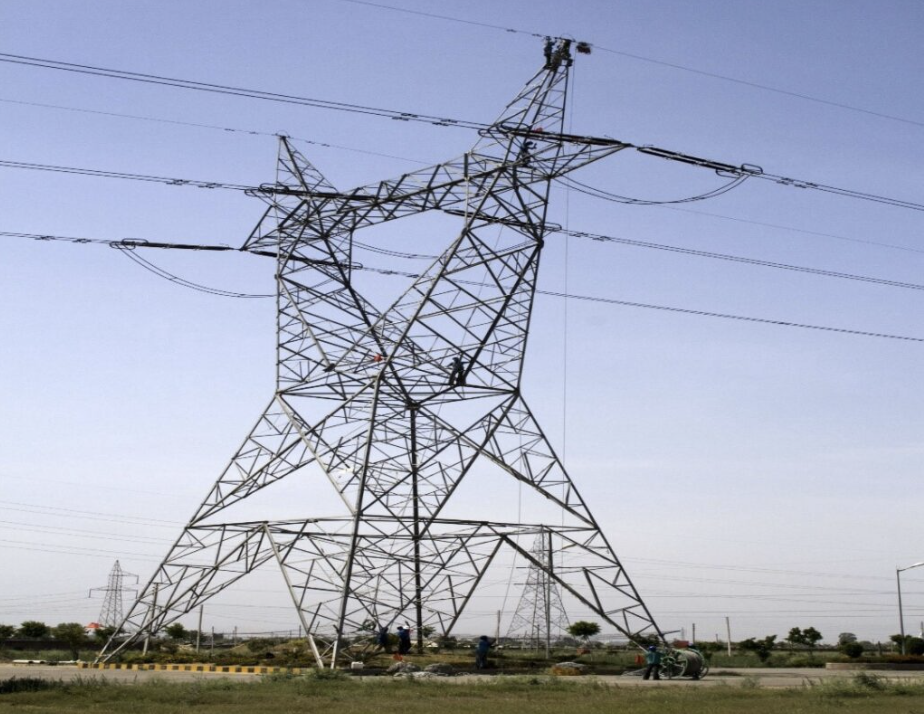

Utilities worldwide are rapidly expanding fiber optic networks along existing high-voltage transmission and distribution corridors to support smart-grid communications, SCADA, private utility networks, and broadband backbone extensions. The All Dielectric Self-Supporting Aerial Cable (ADSS), also known as ADSS Fiber Optic Cable, delivers a safe, lightweight, and highly cost-effective solution specifically engineered for aerial installation on energized power lines.
Because ADSS contains no metallic components, it requires no grounding and can be installed directly in the supply space of live lines without electrical hazard — making it the preferred choice for utilities seeking rapid deployment and long-term reliability.

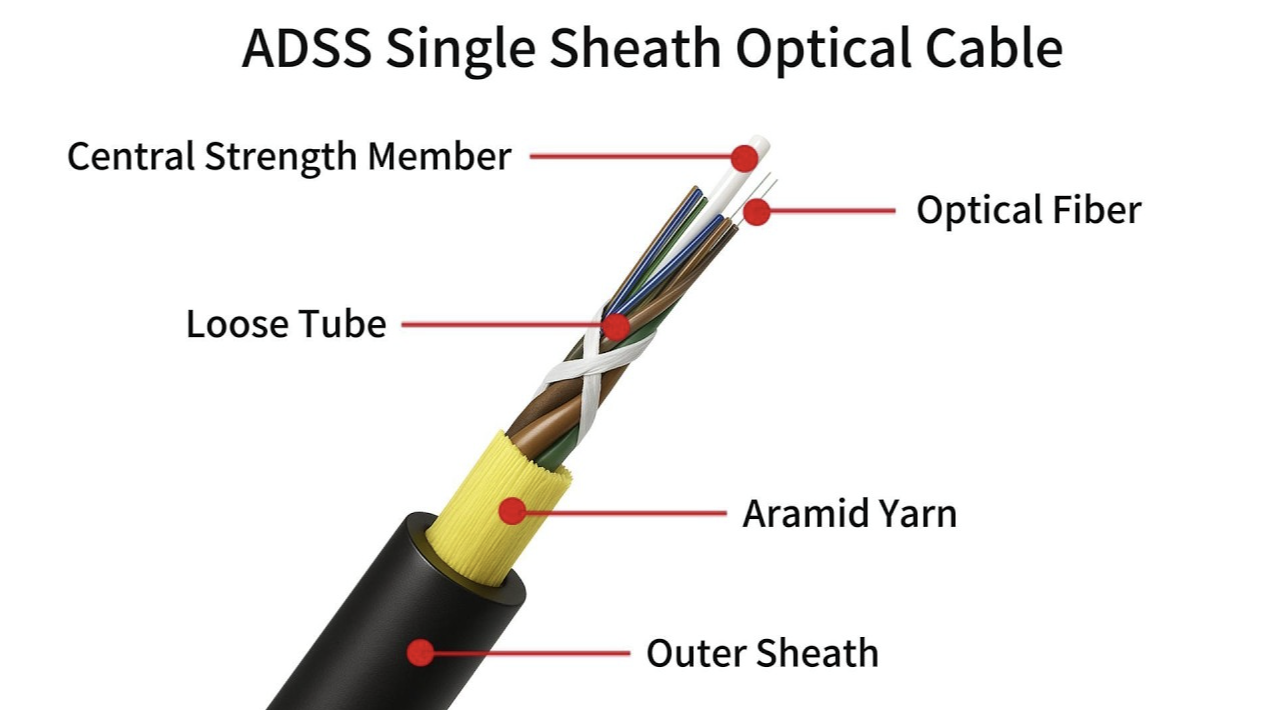

Typical ADSS cross-section showing loose tubes, aramid yarn strength members, and all-dielectric construction.
What is ADSS Cable?
ADSS is a fully non-metallic, self-supporting aerial fiber optic cable. Its “all-dielectric” design eliminates conductive elements, while high-strength aramid yarn (Kevlar) provides the tensile strength needed to support its own weight across long spans between towers or poles — without requiring a separate messenger wire or additional support hardware.
This construction allows ADSS to be installed on existing power infrastructure quickly and economically, even under live-line conditions.
Primary Applications of ADSS Fiber Optic Cable
ADSS excels across a wide range of high-voltage environments:

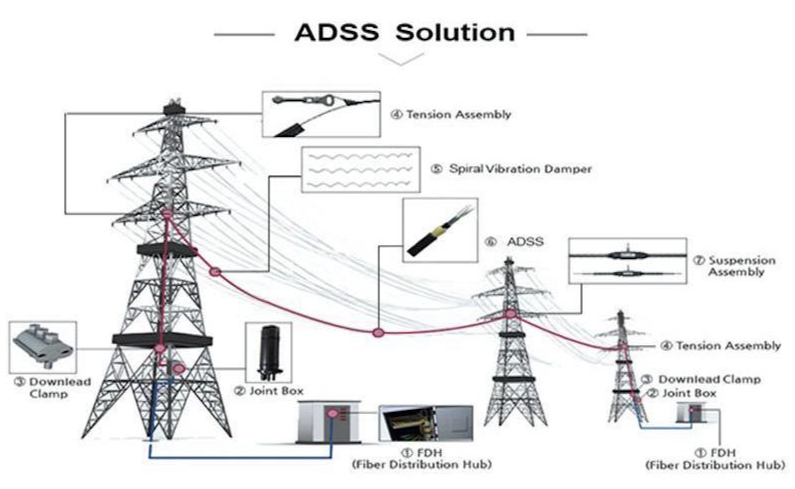

- Long-span aerial deployments on transmission and distribution lines (typical spans 50–1000 m, up to 1500 m in specialized designs)
- Smart-grid communications, SCADA systems, and utility private networks
- Fiber-to-the-home (FTTH) and middle-mile backbone extensions along power corridors
- Renewable energy projects, rural electrification, and grid modernization initiatives
- Environments requiring complete immunity to electromagnetic interference (EMI)
Its lightweight profile and non-conductive nature make it ideal for retrofitting existing lines where adding metallic cables would increase loading or require extensive grounding work.
Key Advantages of ADSS Aerial Cable
- Self-Supporting & Easy Installation — No messenger wire or extra hardware needed; utilizes existing poles and towers, significantly reducing installation time, labor, and overall project cost.
- Fully Dielectric & EMI Immune — Zero metallic components eliminate grounding requirements and provide complete immunity to electromagnetic interference, ensuring stable optical performance near high-voltage conductors.
- Live-Line Installation Capability — Can be installed safely on energized lines, minimizing service interruptions during deployment.
- High Mechanical Strength & Durability — Reinforced with high-modulus aramid yarn for excellent tensile performance, bullet resistance, and outstanding resistance to wind, ice, UV radiation, and extreme temperatures.
- Lightweight & Low Tower Loading — Small diameter and low weight reduce mechanical stress on support structures compared with traditional metallic or lashed cables.
- Long-Span Performance — Engineered for spans from 50 m to over 1000 m depending on fiber count and environmental conditions.
- Excellent Optical Performance — Optimized for single-mode transmission at 1310 nm and 1550 nm with low attenuation and high bandwidth.

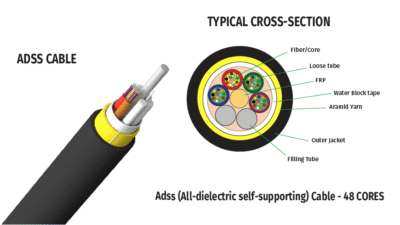

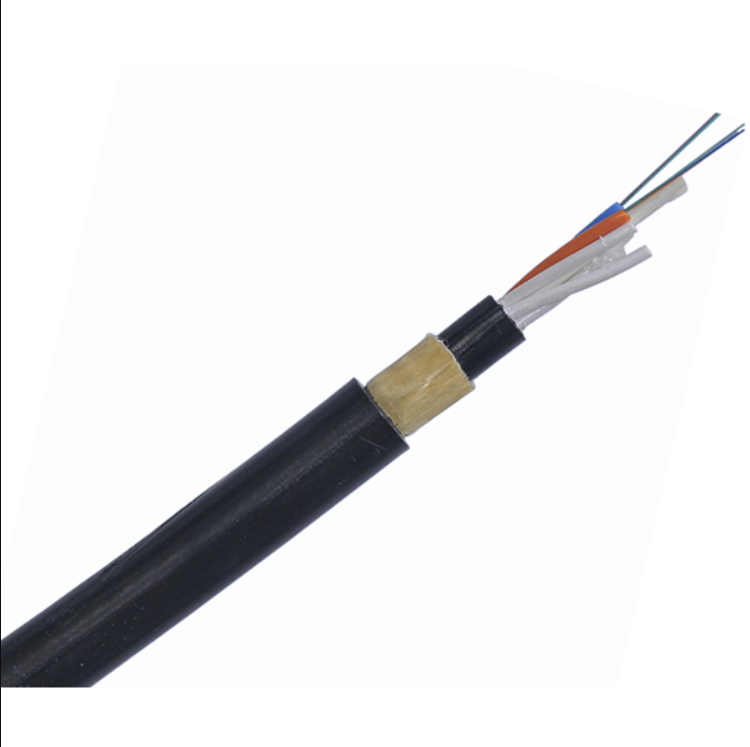

ADSS cable construction — aramid yarn strength members, loose tubes, and UV-resistant outer jacket designed for long-term aerial exposure.
Construction and Design Features
ADSS cables typically feature a loose-tube design with:
- Multiple colored loose tubes containing optical fibers (commonly 2–144 fibers)
- Water-blocking gel or dry water-blocking materials
- Central strength member (FRP) and peripheral high-strength aramid yarn
- UV-stabilized polyethylene (PE) outer jacket; AT (anti-tracking) jacket available for high electric field environments
The all-dielectric structure ensures the cable remains lightweight while delivering the mechanical robustness required for long-term aerial service in harsh climates.
Technical Performance Highlights
- Fiber Compatibility: Standard single-mode (G.652D, G.655) and bend-insensitive fibers (G.657)
- Attenuation: Typically ≤ 0.35 dB/km @ 1310 nm and ≤ 0.21 dB/km @ 1550 nm
- Temperature Range: -40°C to +70°C (operational)
- Span Capability: 100–1500 m (design-dependent)
- Crush & Tensile Resistance: High crush resistance and tensile strength tailored to span and environmental loading
Manufacturing Standards & Quality Assurance
RLB ADSS cables are designed and tested in full compliance with IEEE 1222 and relevant IEC 60794 series standards. This ensures verified mechanical, electrical (tracking resistance), and optical performance, with a typical service life of 30+ years under demanding aerial conditions.
Cables are supplied on heavy-duty wooden or steel-wooden drums for safe handling and deployment.
ADSS vs OPGW: Choosing the Right Aerial Fiber Solution
While both ADSS and OPGW are used on power lines, they serve different primary functions:
- ADSS — Dedicated communication cable; all-dielectric, lightweight, lower cost, ideal for retrofitting existing lines and live-line installation.
- OPGW — Dual-function (ground wire + communication); contains metallic elements for lightning protection and fault current carrying; typically used on new transmission line construction.
Many utilities deploy both: OPGW on transmission lines and ADSS on distribution or for additional capacity on existing corridors.
Why Utilities Choose RLB ADSS
When integrated with RLB’s complete overhead line portfolio — including OPGW, OPPC, high-quality aluminum rod, and advanced stranding equipment — ADSS provides a unified, future-proof aerial communication platform that accelerates grid modernization while controlling capital and operational expenditure.
Its combination of safety, lightweight design, EMI immunity, and ease of installation makes ADSS the smart choice for utilities expanding fiber infrastructure along power corridors worldwide.
Inquiry Now to discuss ADSS configurations, span calculations, technical specifications, or complete aerial fiber solutions tailored to your transmission or distribution project. Our team delivers professional consultation, customized designs, and reliable long-term partnership.
Frequently Asked Questions
Can ADSS be installed on live power lines?
Yes. Its all-dielectric construction allows safe installation in the supply space of energized lines.
What is the typical service life of ADSS cable?
Properly designed and installed ADSS cables routinely achieve 30+ years of service life.
How does ADSS compare to traditional lashed fiber on messenger wire?
ADSS eliminates the need for a separate messenger, reducing weight, hardware, and installation complexity while improving long-term reliability.
What fiber counts are commonly available?
ADSS cables are commonly supplied with 2 to 144 fibers, with higher counts available on request.
