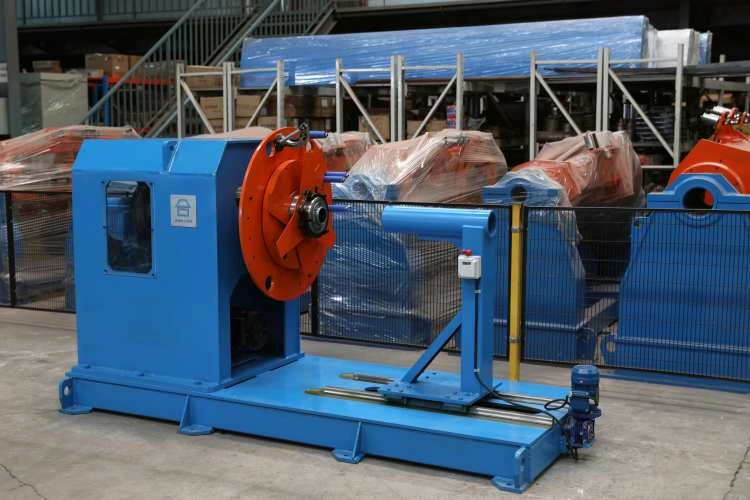

In high-voltage, fire-resistant, and specialty cable production, accurate tape application is critical for shielding, mechanical protection, and fire performance. The RLB High Speed Eccentric Taping Machine delivers industry-leading tangential (eccentric) taping technology for both non-metallic tapes (copper/aluminum foil, paper, mylar, textile, PE) and steel tape armoring. Its independent servo-driven design, constant-tension control, and high-speed capability make it the preferred solution for inline or standalone operation in modern cable lines.
Available in two specialized configurations — Cu/Al Tape version for lightweight non-metallic tapes and Steel Tape version for heavy-duty armoring — the RLB eccentric taping machine ensures uniform overlap, zero slippage, and consistent tension from full to empty pad, eliminating common defects such as wrinkles, gaps, or tape breakage.
Core Technology & Performance Advantages
- Eccentric Tangential Design: 2 pads per head with external bobbin placement (especially advantageous for steel tape) provides smooth, high-speed wrapping with minimal vibration.
- Independent AC Servo Drive: Precise speed synchronization, programmable overlap rate, and automatic tension compensation for perfect taping even at maximum RPM.
- MMI + PLC Intelligent Control: Touch-screen preset of taping pitch, direction, tension, and speed — with real-time monitoring and automatic stop on tape end or fault.
- High-Speed Operation: Up to 700 RPM (non-metallic) and 350 RPM (steel tape) for exceptional productivity.
- Easy Integration: Can be added to existing extrusion, stranding, or armoring lines; complete standalone steel tape armoring lines include pay-off, tractor, and take-up.
The result is superior cable quality, reduced scrap, and significantly lower labor requirements compared to traditional concentric taping systems.
Technical Specifications

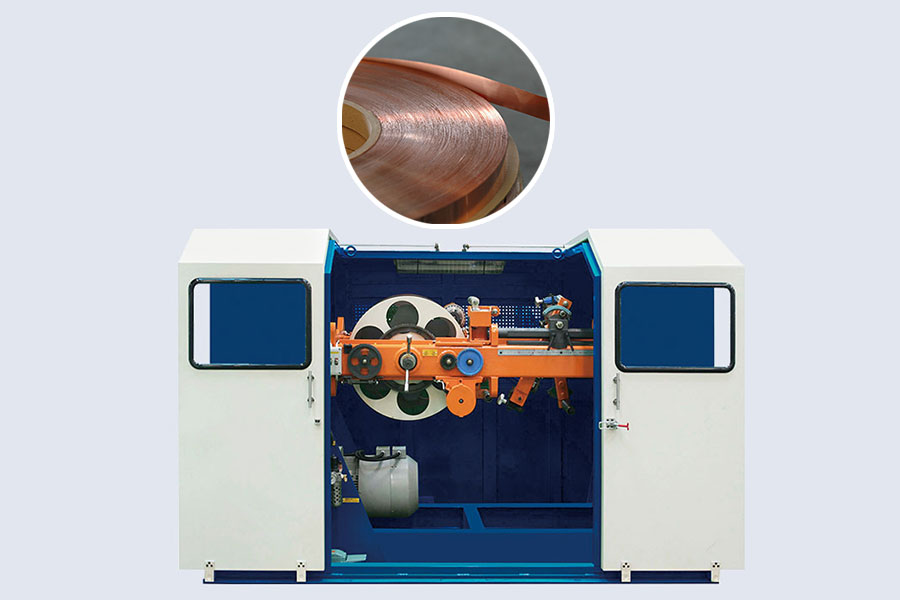

Eccentric Taping Machine (Cu/Al Tape & Non-Metallic)
| Model |
Pad OD × ID × Width (mm) |
Pad Load (kg) |
Cable Diameter (mm) |
Max. Taping Speed (rpm) |
Pads per Head |
Motor Power (kW) |
| RLB-60 |
600 × 76 × 70 |
80 (Cu/Al) / 80 (Non-metal) |
– |
700 |
2 |
11 / 7.5 |
| RLB-60L |
600 × 76 × 100 |
100 / 120 |
– |
700 |
2 |
11 / 7.5 |
| RLB-80 |
800 × 76 × 100 |
120 / 120 |
– |
600 |
2 |
15 / 11 |

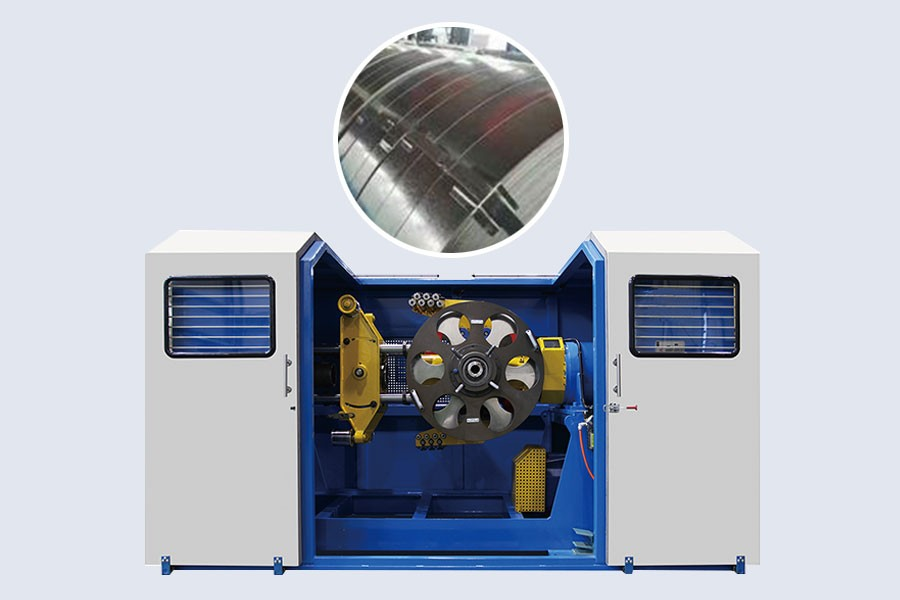

Eccentric Taping Machine (Steel Tape Armoring)
| Model |
Pad OD × ID × Width (mm) |
Pad Load (kg) |
Cable Diameter (mm) |
Max. Taping Speed (rpm) |
Pads per Head |
Motor Power (kW) |
| NE-60 |
600 × 120 × 70 |
120 |
– |
350 |
2 |
15 |
| NE-60L |
600 × 120 × 100 |
150 |
– |
350 |
2 |
15 |
| NE-80 |
800 × 150 × 70 |
200 |
– |
300 |
2 |
18.5 |
Note: Pad dimensions, motor power, and complete line configurations (including Φ1600–2000 mm column-type pay-off/take-up and 16 kN pneumatic caterpillar) can be fully customized to match your cable range, factory layout, and production targets.
Eccentric vs Concentric Taping – Why Choose RLB Eccentric Technology?
| Feature |
RLB Eccentric (Tangential) Taping |
Concentric Taping Head |
| Best for |
Steel tape armoring & heavy loads |
Lightweight non-metallic tapes |
| Bobbin Placement |
External (easier loading) |
Internal |
| Vibration & Speed |
Lower vibration, up to 700 RPM |
Higher symmetry, lighter duty |
| Tension Stability |
Hysteresis brake + servo |
Standard brake |
| Ideal Applications |
MV/HV power, submarine, armored |
Shielding & fire-resistant |
Primary Applications
- Non-Metallic Taping: Copper/aluminum foil shielding, water-blocking tapes, mica tape for fire-resistant cables, mylar, paper, and textile tapes for control, communication, and data cables.
- Steel Tape Armoring: Galvanized steel tape armoring for power cables, submarine cables, and heavy-duty industrial cables.
- Inline Integration: Can be seamlessly added to extrusion, stranding, or laying-up lines for continuous production of armored or shielded cables.
