In modern high-voltage transmission networks, utilities demand conductors that deliver both reliable lightning and fault-current protection and high-speed, interference-free optical communication. Fiber Optical Ground Wire (OPGW Cable), also known as Optical Ground Wire or OPGW, is a premium composite overhead conductor that seamlessly integrates the traditional functions of a ground wire with advanced fiber-optic data transmission capabilities.
This dual-function OPGW cable provides exceptional lightning protection, short-circuit current carrying capacity, and EMI-immune communication — making it the preferred choice for new 35 kV+ transmission lines, grid upgrades, and renewable energy interconnections.
Main Applications of OPGW
OPGW is widely used in new 35kV and above high-voltage transmission lines, as well as the replacement and renovation of existing ground wires. It serves dual purposes in grounding and communication, commonly applied in:
- Integrated protection and communication for overhead power lines
- Smart grid SCADA systems, relay protection, and real-time monitoring
- Utility private networks and dark fiber leasing to third parties
- Long-distance data transmission in renewable energy projects such as wind and solar farms
Key Advantages of OPGW Cable
- Superior Lightning & Short-Circuit Protection: High short-circuit current capacity (typically 20–200 kA/1s depending on design) and excellent arc resistance ensure safe operation during faults and lightning strikes.
- Compact & Lightweight Design: Small diameter and low weight minimize tower loading, sag, and installation costs while maintaining high tensile strength (up to 15,000+ N).

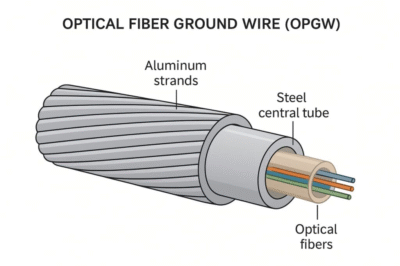

- Advanced Fiber Protection: Stainless steel loose tube with water-blocking gel protects optical fibers (6–144 cores) against moisture, crush, and twist in harsh environments.
- Electromagnetic Immunity & Security: Optical fibers are completely immune to EMI/RFI, while the metallic outer layer provides excellent anti-theft performance and grounding reliability.
- Long Service Life & Low Maintenance: Proven 40+ year design life with outstanding corrosion resistance, low sag, and creep characteristics — ideal for coastal, industrial, or high-pollution areas.

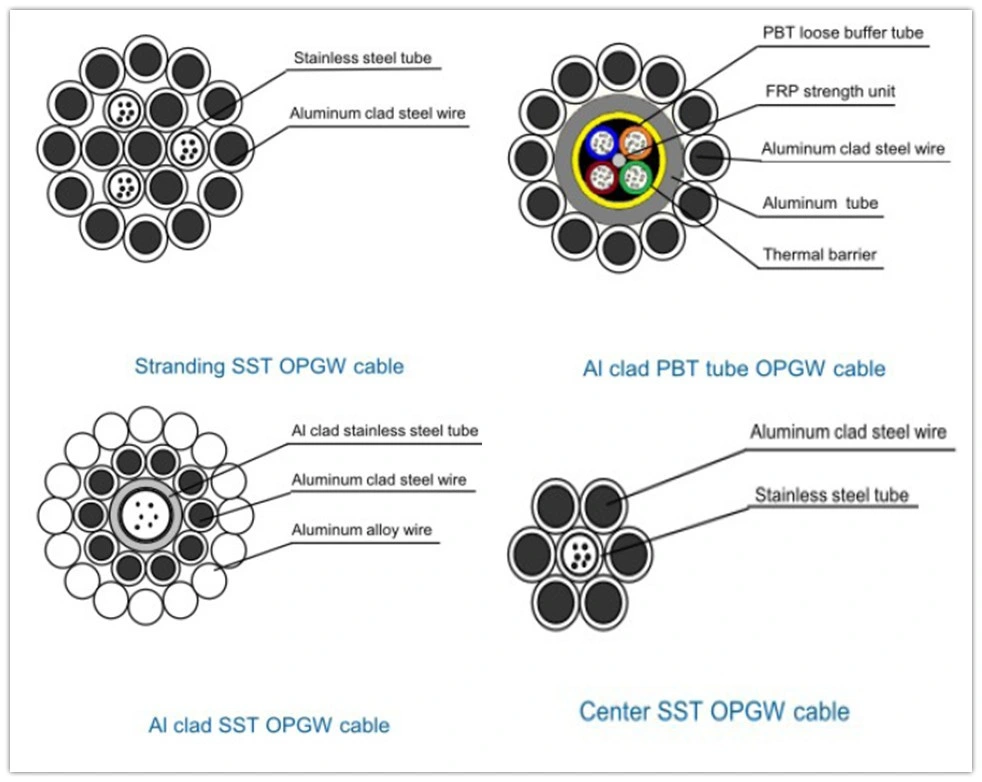

Two Primary Constructions Available:
- Central Loose Tube Type — Ideal for up to 48 fibers with compact design and high mechanical strength.
- Multi Loose Tube / Layer Stranded Type — Optimized for higher fiber counts (48–144+) and larger fault-current capacity.
Both types use aluminum-clad steel and aluminum alloy wires for optimal balance of conductivity, strength, and corrosion resistance.
Primary Applications in Power Transmission & Smart Grid
- High-Voltage & Extra-High-Voltage Overhead Lines (35 kV to UHV)
- Smart Grid SCADA, Relay Protection & Real-Time Monitoring
- Utility Private Networks & Dark Fiber Leasing
- Long-Span River Crossings & Heavy Ice/Wind Load Zones
- Renewable Energy Projects (wind & solar farm interconnections)
- Capacity Upgrades & Ground Wire Replacement without tower reinforcement
Manufacturing Standards
OPGW is manufactured strictly according to the international standard IEEE 1138, guaranteeing outstanding tensile strength, arc resistance, and environmental durability. It has earned global recognition in the power industry.
Manufacturing Standards & Quality Assurance
OPGW cables are manufactured under strict compliance with:
- IEEE 1138 (primary international standard for OPGW performance, testing, and acceptance)
- IEC 60794-4-1 and IEC 60794-4 (optical fiber and OPGW-specific requirements)
- Additional references: ASTM, GB/T, and customer-specific specifications
Every OPGW undergoes rigorous type testing for electrical, mechanical, optical, and environmental performance to ensure long-term reliability in the most demanding conditions.
Engineered for Reliability, Efficiency & Long-Term ROI
Manufactured by RLB (Jiangsu Reliable Industry Co., Ltd.) — a trusted name with decades of experience in overhead conductors — every Fiber Optical Ground Wire (OPGW) is produced with full traceability and consistent quality. Compared to traditional ground wires, OPGW offers:
- Dual functionality (grounding + high-bandwidth communication)
- Significant reduction in installation and maintenance costs
- Future-proof fiber infrastructure for smart grid and 5G backhaul
- Drop-in compatibility with existing transmission line hardware
Whether you are building new HV lines or upgrading existing infrastructure, OPGW Cable delivers the reliable quality, customized service, and long-term technical partnership modern utilities demand.
Ready to integrate OPGW into your transmission network?
Inquiry Now for technical quotation, custom fiber count/configuration, sag-tension calculations, or sample delivery. Our engineering team provides full turnkey solutions, installation support, and ongoing technical partnership.
Fiber Optical Ground Wire - Reliable Doing Cable
Fiber Optical Ground Wire (OPGW) combines lightning protection and high-speed fiber communication in one cable. IEEE 1138 certified, ideal for smart grid and high-voltage lines. Central and multi loose tube designs up to 144 fibers.
