Cable Identification Tape, also known as Color Identification Tape or Color Coding Tape, is a specialized high-performance tape designed for reliable conductor identification and phase marking in power cables, XLPE cables, telecommunication cables, and control cables. Manufactured from premium PET (polyester) or PE (polyethylene) base materials, these tapes provide clear, durable color coding that withstands high-speed extrusion, petroleum jelly immersion, and long-term environmental stresses without fading, migrating, or cracking.
Type A: High-Temperature Color Identification Tape (PET-Based)
This robust PET-based tape is engineered for high-temperature cable production lines. It features a smooth, wrinkle-free surface with no kinks, holes, nicks, or impurities and neatly trimmed edges. The tape is ideal for replacing traditional masterbatch coloring in insulating or sheathing layers, significantly reducing material costs while maintaining excellent color stability.
Key Advantages:
- Withstands instantaneous temperatures of 230–250°C during extrusion.
- Excellent tensile strength (≥125 MPa) and elongation (≥15%).
- Low heat shrinkage (≤10%) for dimensional stability.

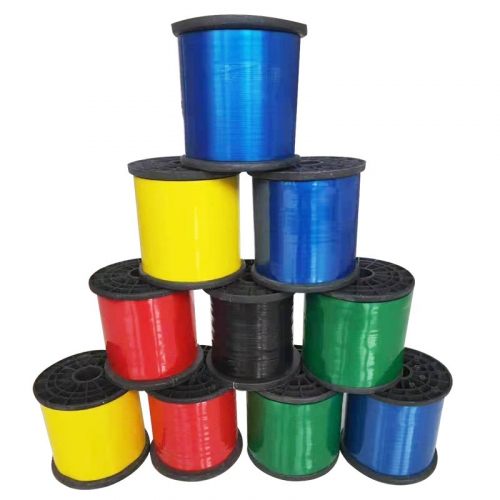

- Available in solid colors (red, yellow, blue, green, black) and two-color combinations.
- Cost-effective alternative to masterbatch coloring.

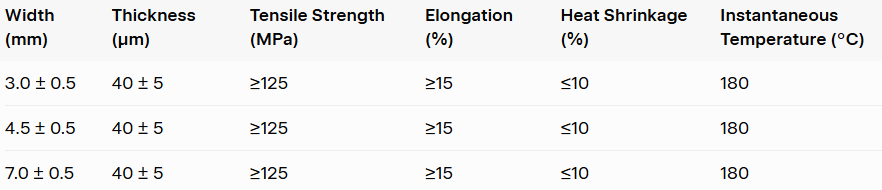

Technical Specifications (PET High-Temperature Type)
Custom widths and specifications are available upon request.
Type B: Low-Temperature Color Identification Tape (PE-Based)
This PE-based tape is designed for lower-temperature processing lines and offers reliable color coding for telecommunication cables, high-voltage XLPE insulated cables, and local cables. It features high temperature resistance (melting point 168°C) and maintains color integrity after petroleum jelly immersion.
Key Advantages:
- Smooth, uniform surface with no wrinkles, kinks, holes, or impurities.
- Excellent tensile strength (≥200 MPa) and elongation (≥25%).
- Low heat shrinkage (≤3.5%).
- Available in solid colors and two-tone combinations (white-blue, white-orange, red-blue, etc.).
- Easy to apply and remove from core barrels.

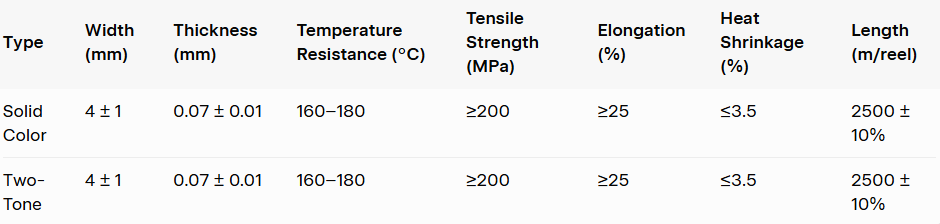

Technical Specifications (PE Low-Temperature Type)
| Parametre |
PET High-Temperature Type |
PE Low-Temperature Type |
Test Condition / Standard |
| Tensile Strength |
≥125 MPa |
≥200 MPa |
ISO 527 |
| Elongation at Break |
≥15% |
≥25% |
ISO 527 |
| Heat Shrinkage |
≤10% |
≤3.5% |
High-temperature test |
| Melting Point |
High (suitable for 230–250°C) |
168°C |
Processing stability |
| Width Range |
5–1300 mm |
5–400 mm |
Precision slitting |
| Core Diameter |
53 mm or 76 mm |
76 mm |
Standard coil/roll |
(Custom colors, widths, thicknesses, and adhesive options available upon request.)
Applications
Cable Identification Tape is essential for:
- Power cables and XLPE insulated cables
- Telecommunication, data, and control cables
- Optical fiber cables and composite cables
- Any application requiring clear, permanent phase or conductor identification
Both types meet industry requirements for color stability, electrical safety, and processing compatibility.
Ambalaj ve Depolama
- Core Diameter: 76 mm standard
- Supplied in coils or rolls, packed in strong carton boxes
- Store in a cool, dry environment away from direct sunlight and mechanical stress
Cable Identification Tape / Color Identification Tape delivers cost-effective, reliable, and durable color coding solutions that enhance cable manufacturing efficiency and long-term product quality.
