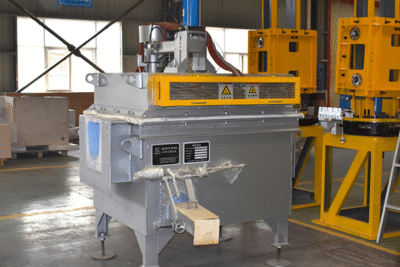

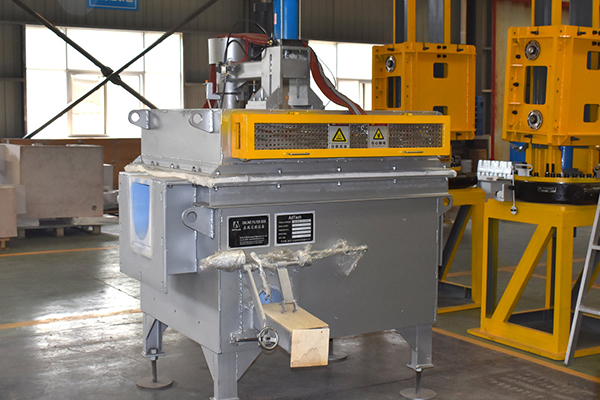

In aluminum foundries and casting operations, the removal of solid impurities from molten aluminum is critical to producing high-quality castings with minimal defects, superior mechanical properties, and excellent surface finish. The CFF Filter System (Ceramic Foam Filter System) is a proven, high-efficiency solution specifically engineered for continuous filtration of molten aluminum. Utilizing advanced ceramic foam filter plates, this system effectively captures non-metallic inclusions, oxides, and other solid impurities while maintaining smooth metal flow.
With a processing capacity of 5–20 tons per hour, the CFF filter system is ideal for medium-to-large aluminum foundries, die-casting plants, and secondary aluminum smelters seeking consistent metal cleanliness.
Application: Filtering Solid Impurities in Molten Aluminum Liquid
The primary function of the CFF Filter System is to remove solid impurities from the aluminum melt prior to casting. Common contaminants include:
- Alumina (Al₂O₃) and other oxides
- Carbides and nitrides
- Magnesium aluminate spinels
- Intermetallic compounds and slag particles
Effective filtration significantly reduces inclusion-related defects such as porosity, cracks, and surface imperfections in the final cast products, directly improving yield rates and product quality in automotive, aerospace, and consumer electronics components.
Filtration Method: Ceramic Foam Filter Plate Technology
The heart of the CFF system is the ceramic foam filter plate — a highly porous, three-dimensional structure made from high-purity alumina or silicon carbide-based ceramic foam. These plates feature controlled pore sizes (typically 10–40 PPI) that provide:
- Deep-bed filtration for maximum inclusion capture
- Excellent thermal shock resistance
- High chemical stability in molten aluminum up to 900°C+

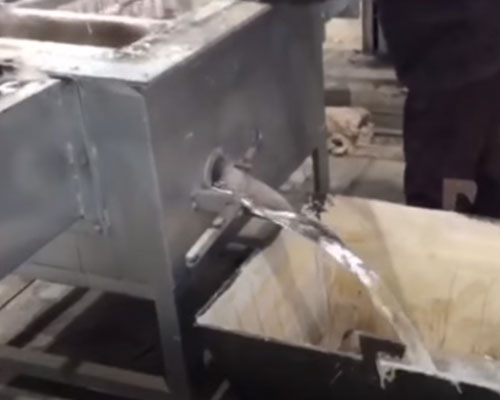

The molten aluminum flows through the ceramic foam plate under controlled head pressure, allowing impurities to be trapped within the interconnected pores while clean metal passes through. The system is designed for easy plate replacement and minimal downtime.
Technical Specifications & Performance
- Capacity: 5–20 tons per hour (custom configurations available for higher throughput)
- Filtration Efficiency: ≥40 PPM inclusion level (achieves ultra-clean metal suitable for high-end casting)
- Filter Plate Sizes: Standard and custom dimensions to match existing launder or filter box systems
- Operating Temperature: Up to 900°C
- Materials: High-grade alumina or silicon carbide ceramic foam

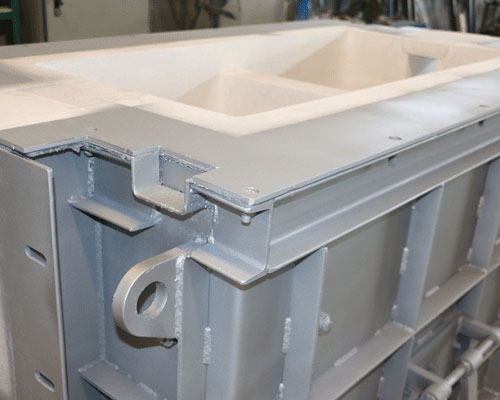

- System Design: Modular filter box with pre-heating capability, flow control, and easy maintenance access
The system is engineered for continuous operation with minimal metal loss and excellent flow uniformity.
Key Advantages of CFF Filter System
- Superior Metal Cleanliness – Dramatically reduces inclusion content, leading to fewer casting defects and higher mechanical properties.
- Improved Casting Quality – Enhanced surface finish, reduced porosity, and better machinability of final products.
- Increased Production Efficiency – High flow capacity (5–20 T/h) supports high-volume foundry operations without bottlenecks.
- Cost-Effective Operation – Long service life of ceramic plates, low maintenance, and reduced scrap rates deliver excellent ROI.
- Kolay Entegrasyon – Compact design fits seamlessly into existing aluminum casting lines and launder systems.
- Environmentally Friendly – Reduces dross formation and improves overall metal recovery.
Why Choose the CFF Filter System for Your Aluminum Foundry?
In today’s competitive aluminum casting industry, metal cleanliness is no longer optional — it is a key differentiator for quality and profitability. The CFF Filter System offers foundries a reliable, high-performance filtration solution that consistently delivers cleaner molten aluminum, higher yields, and superior end-product quality. Whether you run a high-volume die-casting operation or produce premium aluminum alloys, this ceramic foam filter technology provides measurable improvements in casting performance and operational efficiency.
