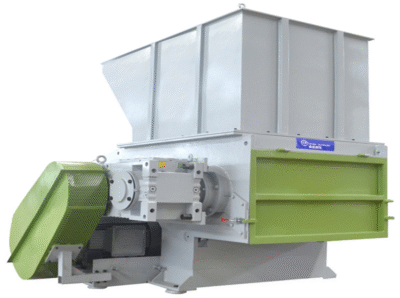

In the recycling and waste processing industry, the single shaft shredder is the workhorse for primary size reduction of bulky and difficult-to-process materials. Also known as a single rotor shredder or heavy-duty single shaft granulator, this machine features a robust rotor shaft equipped with precision cutting blades that deliver high-torque, low-speed shearing action. It is widely recognized as the most reliable and versatile solution for initial shredding of scrap cables, plastics, rubber, wood, paper, and electronic waste before downstream granulation or sorting.
The single shaft design provides superior control over material feeding, excellent shock absorption, and consistent output particle size, making it ideal for integrated recycling lines that demand high throughput and minimal downtime.
1. Working Principle & Structural Advantages

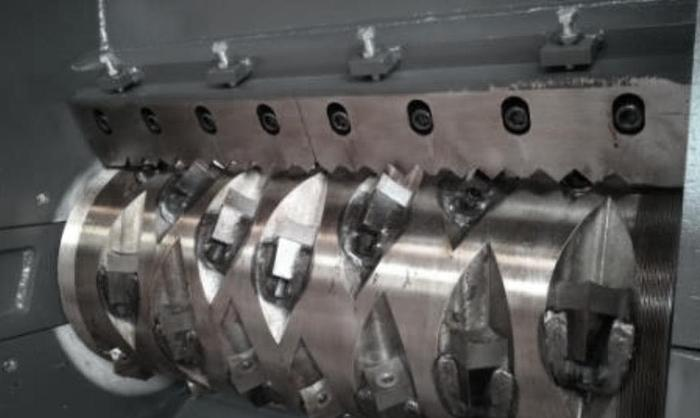

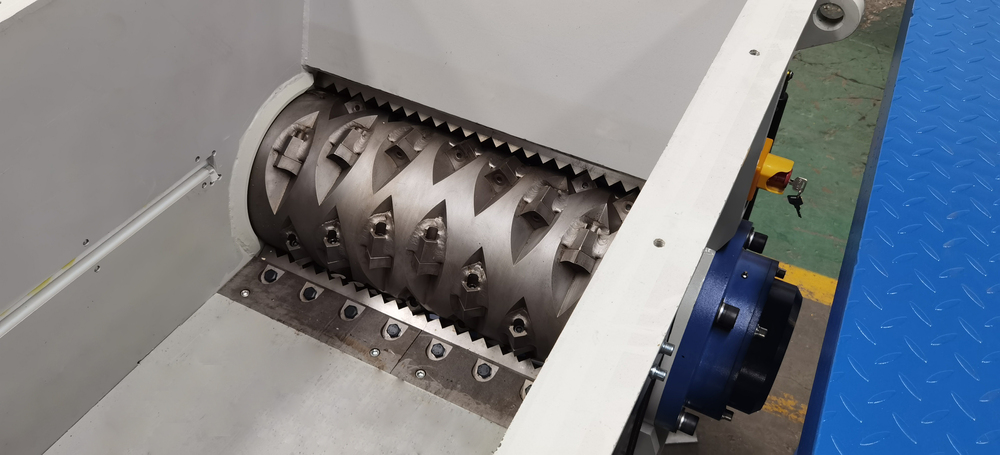

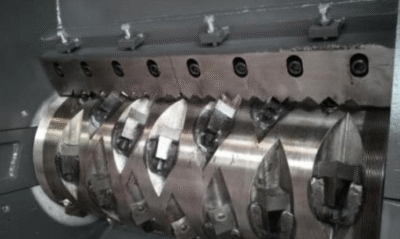

A single shaft shredder consists of a heavy-duty rotor with multiple rotary blades that interact with fixed counter blades in the cutting chamber. Material is fed through a large hopper, pushed by a hydraulic ram, and aggressively shredded by the slow-rotating, high-torque rotor. The processed material then passes through an optional screen for size control.
Key engineering advantages include:
- High-Torque Low-Speed Operation — Ensures powerful shearing without jamming, even with contaminated or bulky waste.

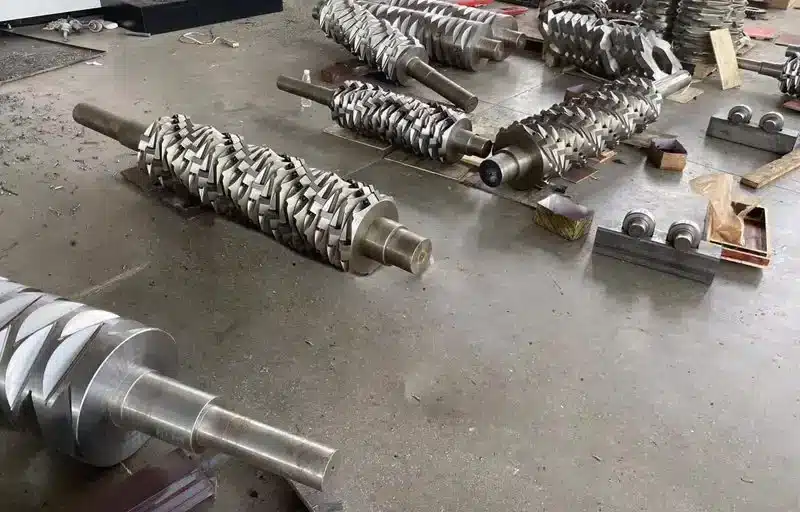

- Robust Rotor & Blade System — High wear-resistant D2 or similar tool steel blades for extended service life.
- PLC Intelligent Control — Automatic start/stop, reverse, and overload protection for safe, reliable 24/7 performance.
- Hydraulic Pusher — Maintains consistent material flow and prevents bridging in the hopper.
These features make single shaft shredders far more efficient and durable than double-shaft or high-speed alternatives for many applications.
Wide Range of Applications
Single shaft shredders excel at processing:
- Scrap Cables & Wires — Automobile electrical wire, car electric wire, motorcycle wire, power cables, and communication cables (0.1–80 mm diameter)
- Plastics — Mouldings, profiles, films, PET bottles, and plastic barrels
- Rubber — Tires, reclaim rubber, and industrial rubber products
- Paper & Cardboard — Confidential documents and packaging waste
- Textiles & Foam — Carpet, fabric waste, and production foam
- Other — Wood, circuit boards, and mixed electronic waste
In copper cable recycling plants, the single shaft shredder serves as the critical first stage, reducing whole cables into chips for subsequent granulation and separation of copper, plastic, and iron.
Technical Specifications (Representative Heavy-Duty Models)
Typical performance data for industrial single shaft shredders used in cable recycling lines:
| Model |
Capacity (kg/h) |
Total Power (kW) |
Weight (kg) |
Dimension (m) |
| OTD1000 |
800–1000 |
160 |
15,000 |
21.5 × 9.5 × 5.7 |
| OTD500 |
300–500 |
99 |
9,000 |
10.1 × 9.6 × 5.7 |
| OTD400 |
200–300 |
60 |
6,600 |
6 × 3.5 × 3.2 |
| OTD300 |
100–200 |
30 |
2,800 |
3 × 2.1 × 2.8 |
Capacities depend on material type, density, and screen size. Custom configurations are available.
Key Benefits of Single Shaft Shredders
- High Throughput & Efficiency — Processes large volumes of mixed waste with excellent size reduction.
- Superior Durability — Heavy-duty construction and premium blade materials ensure long service life.
- Low Noise & Energy Consumption — Low-speed operation reduces power usage and noise levels.
- Easy Maintenance — Quick access to blades and screens minimizes downtime.
- Full Automation — PLC control with overload protection for safe, unattended operation.
- Global Support — Leading manufacturers provide overseas commissioning, training, and factory visit opportunities for hands-on evaluation.
Why Choose a Heavy-Duty Single Shaft Shredder?
For recycling facilities processing scrap cables, plastics, or mixed industrial waste, a single shaft shredder offers unmatched reliability, versatility, and cost-effectiveness. Its robust design and intelligent control system deliver consistent performance while reducing labor and maintenance costs. Whether integrated into a full copper cable granulation line or used as a standalone primary shredder, this machine maximizes material recovery and supports profitable, sustainable recycling operations.
