In high-volume wire and cable manufacturing, maintaining precise temperature control for critical production equipment is non-negotiable. The closed cooling tower (also known as a closed circuit cooling tower or water cooling tower for cooling industrial equipments) delivers reliable, contamination-free heat rejection that directly supports the continuous operation of tel bükme makinesi, demetleme makinesi, tel çekme makinesi, and related auxiliary systems.

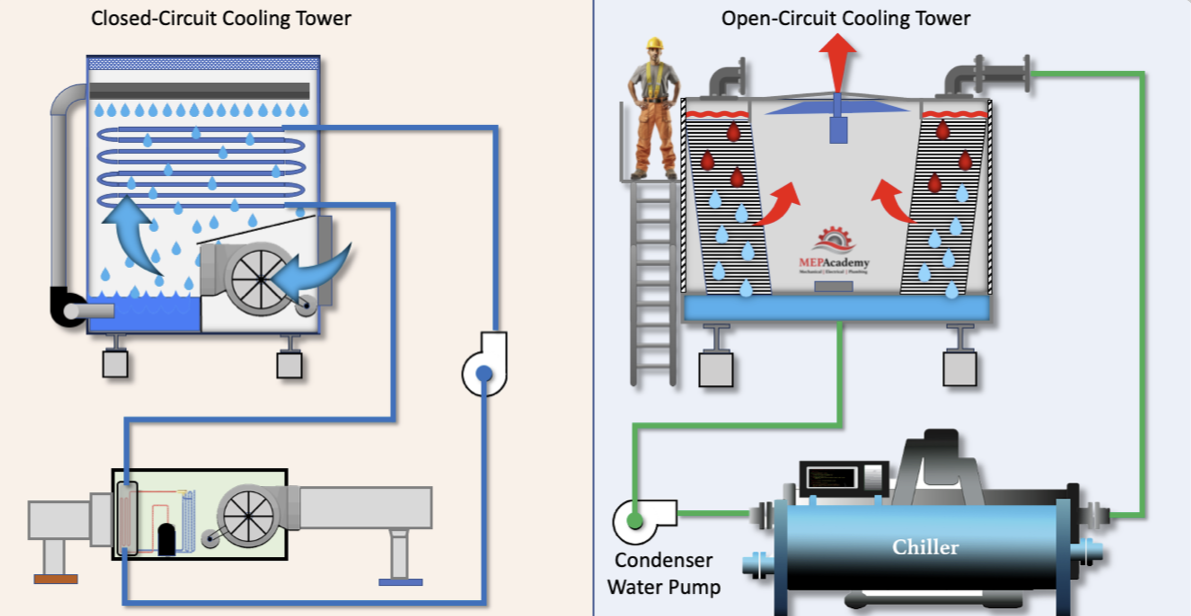

Unlike traditional open-circuit towers, this fully enclosed solution circulates process fluids through sealed heat exchanger coils, eliminating direct contact with ambient air or spray water. The result: zero risk of scaling, corrosion, or biological contamination—critical for maintaining the consistent performance and extended service life of high-speed cable production lines.
Engineered for demanding industrial environments, our closed cooling towers ensure stable cooling of water, brine, quenching oils, annealing fluids, and specialized media used in wire drawing, stranding, and bunching processes. They combine evaporative and air-cooling mechanisms in a compact footprint, delivering superior energy efficiency, minimal water loss, and full compliance with stringent environmental and safety standards.

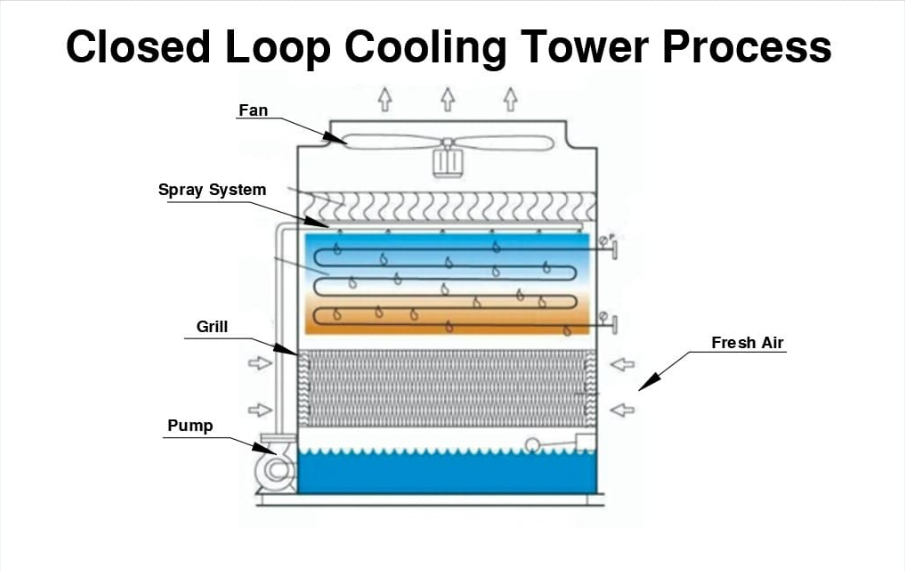

Working Principle of Closed Cooling Towers
Closed circuit cooling towers operate on a proven dual-circuit design that guarantees complete hydraulic separation between the process fluid and the external cooling medium:
- Internal closed loop: The hot process fluid (from wire drawing machine capstans, stranding machine bearings, bunching machine drives, or annealing lines) flows inside finned coils.
- External evaporative loop: Recirculating spray water is distributed over the coil surface while axial fans draw ambient air through the tower, accelerating evaporation and heat transfer.
Heat moves from the process fluid through the coil walls to the spray water, then dissipates to the atmosphere via latent heat of evaporation. The cooled fluid returns to the production equipment without ever mixing with spray water or outside air. This double-cooling effect (sensible + latent heat transfer) achieves higher overall efficiency than dry coolers while maintaining a fully closed, contaminant-free system.
The vertical or modular prying-type design further optimizes airflow and heat exchange, making the unit ideal for integration with high-speed tel bükme makinesi, demetleme makinesi, Ve tel çekme makinesi lines where space and uptime are paramount.
Geleneksel Açık Soğutma Kulelerine Göre Başlıca Avantajları
Our closed cooling towers are purpose-built to solve the real-world pain points of cable manufacturers:
- Zero Contamination & Extended Equipment Life — Complete isolation prevents dust, debris, and airborne particles from entering the process loop, eliminating pipeline blockages and protecting precision components in wire drawing dies, stranding heads, and bunching flyers.
- Soft Water Circulation with No Scaling — Uses treated soft water in the closed loop, dramatically reducing scaling on heat-exchange surfaces and preventing overheating—directly translating to fewer production stops on tel çekme makinesi and annealing equipment.
- Superior Energy Efficiency & Lower Operating Costs — Combines evaporative cooling with intelligent fan/pump control, achieving up to 30-40% lower power consumption compared to open towers + plate heat exchanger combinations. Real-world data from global cable plants show significant savings in electricity and water treatment chemicals.
- Automatic Digital PLC Control — Precise temperature regulation (±1°C), remote monitoring, automatic mode switching (wet/dry), and fault diagnostics minimize operator intervention and ensure 24/7 reliability.
- Environmental Protection & Water Savings — Near-zero process fluid loss, no chemical dosing in the closed loop, and compliance with strict discharge regulations—ideal for facilities targeting ESG goals.
- Modular Prying-Type Design — Plug-and-play installation with simple piping; no need for large reservoirs or extensive civil works. Reduced footprint improves factory layout efficiency when pairing with multiple tel bükme makinesi veya demetleme makinesi units.
- Çok Yönlü Medya Uyumluluğu — Handles water, oil, glycol mixtures, quenching liquids, and chemical solutions without altering fluid composition—perfect for specialty cable production.
These advantages deliver measurable ROI: longer equipment uptime, lower maintenance, reduced labor, and consistent product quality in fire-resistant, control, and communication cable lines.
Teknik Özellikler (Standart Modeller)
| Model | Soğutma Kapasitesi (kW) | Motor Gücü (kW) | Fan Debisi (m³/h) | Püskürtme Pompası (kW) | Cihaz Arayüzü (mm) | Akış (m³/sa) | Isı Çekimi (kW) | Su Pompası Gücü (kW) | Giriş/Çıkış (mm) | Taşma (mm) | Atıksu Tahliye Çıkışı (mm) | Su Yenileme (mm) |
|---|
| 30D | 174 | 1,5×2 | 38,400 | 0.75 | DN80 | — | — | — | DN25 | DN25 | DN25 | DN25 |
| 40D | 232 | 1,5×2 | 51,200 | 1.1 | DN100 | — | — | — | DN32 | DN32 | DN32 | DN32 |
| 50D | 290 | 1,5×2 | 64,000 | 1.5 | DN100 | — | — | — | DN32 | DN32 | DN32 | DN32 |
| 65D | 378 | 2.2×2 | 83,200 | 1.5 | DN100 | — | — | — | DN32 | DN32 | DN32 | DN32 |
| 80D | 465 | 3×2 | 102,400 | 2.2 | DN125 | — | — | — | DN40 | DN40 | DN40 | DN40 |
| 100D | 581 | 4×2 | 128,000 | 3 | DN125 | — | — | — | DN40 | DN40 | DN40 | DN40 |
| 125D | 727 | 5,5×2 | 160,000 | 3 | DN150 | — | — | — | DN40 | DN40 | DN40 | DN40 |
| 150D | 872 | 4×3 | 192,000 | 4 | DN150 | — | — | — | DN40 | DN40 | DN40 | DN40 |
| 180D | 1,046 | 5.5×3 | 240,000 | 4 | DN125×2 | — | — | — | DN40 | DN40 | DN40 | DN40 |
| 200D | 1,163 | 4×4 | 256,000 | 4 | DN125×2 | — | — | — | DN40 | DN40 | DN40 | DN40 |
| 225D | 1,308 | 4×4 | 256,000 | 5.5 | DN150×2 | — | — | — | DN40 | DN40 | DN40 | DN40 |
| 250D | 1,453 | 5×4 | 320,000 | 5.5 | DN150×2 | — | — | — | DN40 | DN40 | DN40 | DN40 |
Why Choose Our Closed Cooling Tower for Your Cable Production Line?
As a long-established supplier of complete wire and cable machinery solutions, we understand that every auxiliary component must enhance overall line reliability and productivity. This water cooling tower for cooling industrial equipments eliminates the downtime, high maintenance, and quality risks associated with open towers—while delivering measurable cost savings in energy, water, and labor.
Whether you run high-speed tel bükme makinesi, çok başlı demetleme makinesi, veya büyük çaplı tel çekme makinesi lines, our closed cooling towers provide the stable, clean cooling essential for defect-free output and long-term operational excellence.
Ready to optimize your cable plant’s cooling system?
Şimdi bilgi isteyin for detailed technical proposals, layout integration support, and customized configurations tailored to your tel bükme makinesi, demetleme makinesi, Ve tel çekme makinesi requirements.
