In the rapidly growing new energy, power transmission, and electrical equipment sectors, manufacturers need fast, flexible, and high-quality production of aluminum conductors. The RLB Aluminum Material Continuous Extrusion Machine (Conform-type continuous rotary extrusion line) offers a single-step solution that transforms Φ9.5 mm or Φ15 mm aluminum rods directly into soft aluminum tubes, porous flat tubes, strap wires, conductors, busbars, and complex profiles — eliminating the need for multiple drawing or annealing steps.
With a lengthened extrusion belt and specially heat-treated wheels, the line achieves full material compaction, uniform microstructure, and outstanding surface quality while maintaining low leakage (≤5 %) and high output. The soft extruded product allows direct bobbin take-up and optional online cutting saw integration, dramatically simplifying downstream processing.
Engineered for the booming new energy, power transmission, and electrical equipment sectors, the RLB Aluminum Continuous Extrusion Machine achieves full material compaction, uniform microstructure, outstanding surface quality, and excellent electrical conductivity while maintaining leakage ≤5 %. The lengthened extrusion belt and specially heat-treated wheel deliver higher throughput, lower energy consumption (10–20 % savings per ton), and superior product performance compared to traditional hydraulic extrusion methods.
How Continuous Rotary Extrusion (Conform Process) Delivers Superior Results
The RLB machine employs advanced continuous rotary extrusion (CRE / Conform) technology. Aluminum rod feedstock enters a precision-grooved rotating extrusion wheel. Friction and controlled pressure generate localized heat, bringing the material to a plastic state with dynamic recrystallization. The material then flows into the die chamber and exits as finished profile or tube of unlimited length in a single, continuous operation.
Key process advantages versus traditional batch or hydraulic extrusion:
- No preheating or post-extrusion annealing required for most soft aluminum products
- Superior microstructural uniformity and electrical conductivity
- Significantly lower energy consumption and higher material yield
- Compact footprint (up to 60 % smaller than conventional lines)
- Consistent dimensional accuracy and surface quality at high speeds
Energy-Efficient & Eco-Friendly Design
No preheating or annealing stage; integrated hydraulic system with zero oil leakage; constant-tension take-up and automatic caterpillar tractor reduce labor to a single operator. New-generation models achieve approximately 20 % energy savings per ton, up to 80 % higher production output and 60 % space savings compared with traditional hydraulic extrusion lines.
Premium Components & Smart Features
Mechanical locking of extrusion tooling ensures stable extrusion conditions. Upgraded high-quality Chinese gearbox, Siemens/ABB electrical controls, aviation plugs for rapid connection, and industrial cloud data system provide full production traceability and remote support capability.
Advanced Engineering Features & Process Benefits
Lengthened Extrusion Belt & Heat-Treated Wheel Extended dwell time ensures full compaction and dense, homogeneous grain structure. Special heat treatment dramatically extends wheel service life, reducing maintenance frequency and unplanned downtime.
Single-Wheel Single-Groove Lateral Extrusion Delivers stable high-speed operation with precise dimensional control and minimal waste. Ideal for continuous, high-volume production environments.
Soft Product Output & Flexible Take-Up Extruded material exits in soft temper, ready for direct bobbin winding without annealing. Optional integrated online cutting saw provides precise length control for busbar or profile applications.
Compact & Intelligent Full-Line Layout Complete production line includes: automatic short-rod feeding system, continuous extrusion main machine, oxidation-preventive cooling system, traction device (caterpillar), cut-to-length equipment and constant-tension receiving system. All modules connect via automatic conveying for seamless, stable operation. Centralized PLC + HMI touchscreen with remote diagnostics module enables real-time monitoring, parameter adjustment and predictive maintenance.
Teknik Özellikler
| Model | Extrusion Wheel Dia. | Main Motor Power | Rated Speed | Max. Production Speed | Product Diameter | Output (kg/h) | Leak Amount | Raw Material (Aluminum Rod) |
|---|
| RLB285(300)/110 | Φ285 mm | 110 kW | 16 r/min | 14 m/min | Φ20 mm | 150 (tube) | ≤5 % | Φ9.5 mm |
| RLB315/132 | Φ315 mm | 132 kW | 18 r/min | 16 m/min | Φ25 mm | 180 (tube) | ≤5 % | 2×Φ9.5 mm |
| RLB350/200 | Φ340 mm | 200 kW | 20 r/min | 20 m/min | Φ30 mm | 360 (tube) | ≤5 % | Φ15 mm |
| RLB400/250 | Φ400 mm | 250 kW | 20 r/min | 25 m/min | Φ60 mm | 450 | ≤5 % | Φ15 mm |
İsteğe bağlı olarak özel konfigürasyonlar ve daha yüksek kapasiteli modeller mevcuttur.
Layout of the Continuous Extrusion Production Line for Aluminum Busbar
The overall layout is compact and space-saving (up to 60 % smaller than traditional lines). It covers the complete process from raw material feeding to finished product winding, including automatic short-rod feeding, oxidation-preventive cooling, constant-tension take-up, and optional online cutting. Full-process monitoring via PLC/HMI with remote module interface ensures intelligent management and minimal operator intervention.
Başlıca Uygulamalar

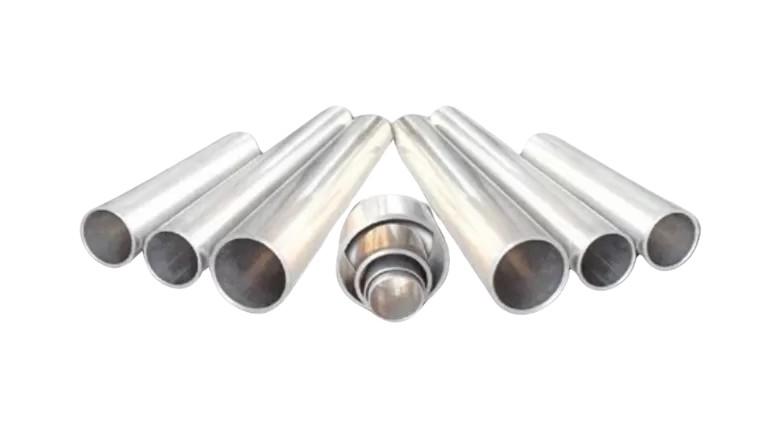

- Round Aluminum Tubes & Porous Flat Tubes (MPE/PFC) — Heat exchangers, refrigeration, HVAC and new energy thermal management systems
- Aluminum Strap Wires & Conductors — Power cables, automotive wiring harnesses, electronic components

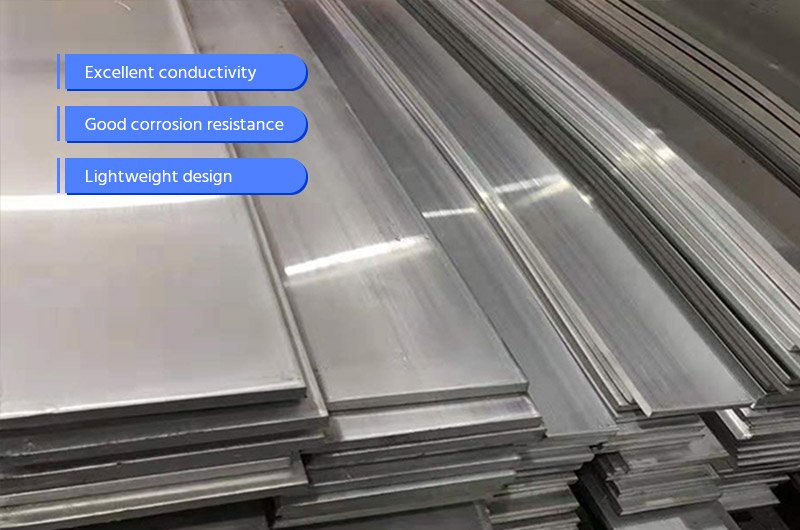

- Aluminum Busbars & Profiles — Switchgear, transformers, power distribution panels, data center infrastructure
- Shaped Conductors — New energy vehicles (EV/HEV inverters, motors), solar inverters, high-current systems
- High-Quality Aluminum Sheathing — Special cables requiring excellent conductivity and corrosion resistance
Built for Reliability, Sustainability & Maximum ROI
RLB is recognized as a world-leading supplier of Continuous Extrusion Production Lines for Aluminum Busbar, with approximately 50 % global market share in the aluminum wire extrusion machine industry segment. A dedicated R&D team continuously improves machine performance, supported by an independent laboratory that conducts customer-specific material testing and process validation.
Every RLB High Speed Aluminum Wire Extrusion Machine incorporates world-famous electrical components (Siemens, ABB), premium Chinese gearboxes and proven mechanical designs engineered for long service life and stable 24/7 operation. More than 30 experienced maintenance engineers provide global on-site installation, commissioning, rapid response and 24/7 online/remote support — ensuring minimal downtime and consistent high-quality output throughout the equipment lifecycle.
Our Advantage Summary
- Market Position & Experience — Leading global installed base and deep expertise in cable & conductor manufacturing equipment
- Energy & Productivity — New models deliver ~20 % energy savings per ton, significantly higher throughput and up to 60 % smaller footprint versus traditional lines
- Precision & Quality — Mechanical tooling lock, constant tension, advanced cooling and cloud traceability for repeatable, high-spec output
- Labor & Maintenance Efficiency — Single-operator design, automatic feeding/traction and remote diagnostics
- Customization & Partnership — Independent lab testing, rapid die/profile development and long-term technical collaboration
Sustainability & Long-Term Value
Lower energy consumption, reduced material waste, elimination of annealing steps and compact layout translate directly into lower operating costs and faster ROI. The robust design and comprehensive global after-sales network support reliable, long-term partnership with manufacturers focused on sustainable, high-efficiency production.
Ready to boost your aluminum conductor production efficiency and quality?
Şimdi bilgi isteyin for factory-direct pricing, detailed technical drawings, process videos, sample production trials or a customized quotation tailored to your exact rod diameter, product range and capacity requirements. Our engineering team will respond within 24 hours with professional technical solutions and layout recommendations.
Sıkça Sorulan Sorular
What is the main difference between continuous rotary extrusion and traditional aluminum extrusion presses?
Traditional presses are batch processes requiring billet heating, limited length and often multiple subsequent drawing/annealing steps. Conform lines provide true continuous production of unlimited lengths in a single step with lower energy use, smaller footprint and superior microstructural uniformity.
Which aluminum products can be produced on the Aluminum Continuous Extrusion Machine?
Round tubes, porous flat tubes (MPE), solid/strap conductors, busbars (flat or shaped), and complex custom profiles — all in soft temper suitable for direct take-up or further processing.
How much energy and space can I save compared with conventional lines?
New-generation RLB models typically achieve approximately 20 % energy savings per ton, up to 80 % higher production output and around 60 % reduction in floor space versus traditional hydraulic extrusion setups.
