Alüminyum Malzeme Sürekli Ekstrüzyon Makinesi

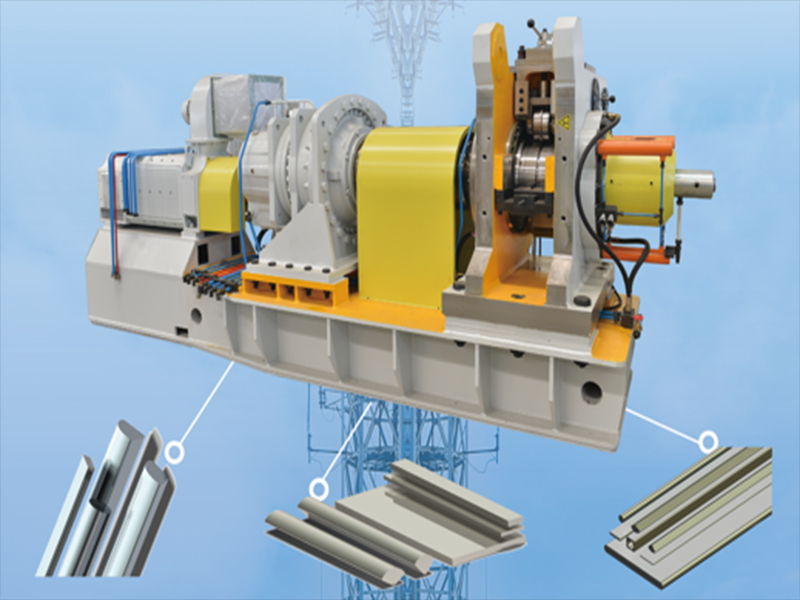

In the rapidly growing new energy, power transmission, and electrical equipment sectors, manufacturers need fast, flexible, and high-quality production of aluminum conductors. The RLB Aluminum Material Continuous Extrusion Machine (Conform-type continuous rotary extrusion line) offers a single-step solution that transforms Φ9.5 mm or Φ15 mm aluminum rods directly into soft aluminum tubes, porous flat tubes, strap wires, conductors, busbars, and complex profiles — eliminating the need for multiple drawing or annealing steps.

With a lengthened extrusion belt and specially heat-treated wheels, the line achieves full material compaction, uniform microstructure, and outstanding surface quality while maintaining low leakage (≤5 %) and high output. The soft extruded product allows direct bobbin take-up and optional online cutting saw integration, dramatically simplifying downstream processing.

Engineered for the booming new energy, power transmission, and electrical equipment sectors, the RLB Aluminum Continuous Extrusion Machine achieves full material compaction, uniform microstructure, outstanding surface quality, and excellent electrical conductivity while maintaining leakage ≤5 %. The lengthened extrusion belt and specially heat-treated wheel deliver higher throughput, lower energy consumption (10–20 % savings per ton), and superior product performance compared to traditional hydraulic extrusion methods.

Advanced Engineering Features & Process Benefits

• Lengthened Extrusion Belt & Heat-Treated Wheel: Provides extended dwell time for complete compaction and dense, homogeneous structure. Significantly extends wheel service life, reducing maintenance and downtime.
• Single-Wheel Single-Groove Lateral Extrusion: Ensures stable high-speed production with precise dimensional control and minimal waste (material utilization up to 95 %).
• Soft Product Output: Ideal for direct bobbin take-up without annealing; supports online cutting saw for precise length control.
• Compact & Intelligent Layout: Full production line includes conductor feeding system, continuous extrusion main machine, cooling system, traction device, cut-to-length equipment, and receiving system — all connected via automatic conveying for seamless operation. Centralized PLC + HMI touchscreen enables real-time monitoring, parameter adjustment, and remote diagnostics.
• Energy-Efficient & Eco-Friendly Design: No preheating or annealing required; integrated hydraulic system with no oil leakage; constant tension take-up and automatic caterpillar tractor minimize labor (one operator can manage the line).
• Premium Components & Smart Features: Mechanical locking of extrusion tooling, upgraded gearbox, Siemens/ABB electrical controls, aviation plugs for easy connection, and industrial cloud data system for traceable production records.

These features make the RLB series the preferred choice for producers seeking higher throughput, lower energy consumption, and superior product quality in aluminum conductor manufacturing.

Teknik Özellikler

İsteğe bağlı olarak özel konfigürasyonlar ve daha yüksek kapasiteli modeller mevcuttur.

Layout of the Continuous Extrusion Production Line for Aluminum Busbar

The overall layout is compact and space-saving (up to 60 % smaller than traditional lines). It covers the complete process from raw material feeding to finished product winding, including automatic short-rod feeding, oxidation-preventive cooling, constant-tension take-up, and optional online cutting. Full-process monitoring via PLC/HMI with remote module interface ensures intelligent management and minimal operator intervention.

Başlıca Uygulamalar

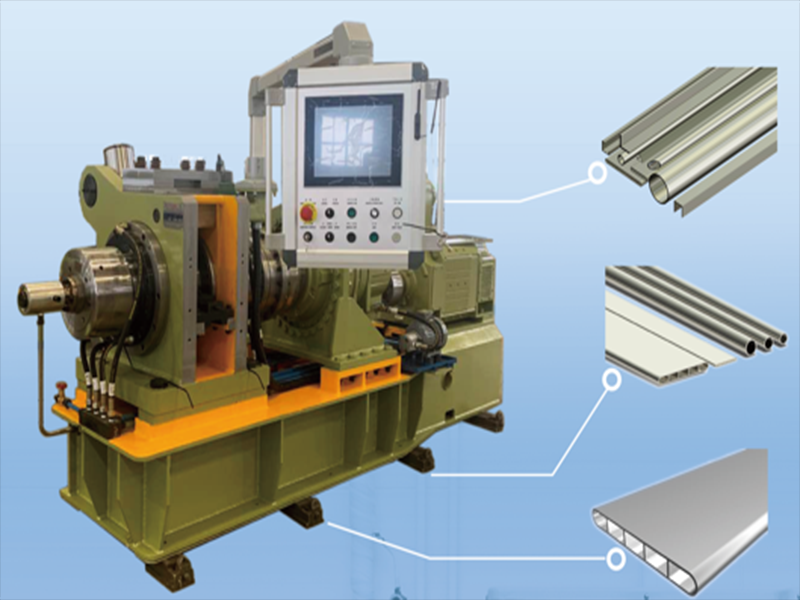

• Round Aluminum Tubes & Porous Flat Tubes for heat exchangers and refrigeration
• Aluminum Strap Wires & Conductors for cables and wiring harnesses
• Aluminum Busbars & Profiles for switchgear, transformers, and power distribution
• Shaped Conductors for new energy vehicles, solar inverters, and high-current systems
• High-Quality Aluminum Sheathing for special cables

Built for Reliability, Sustainability & Maximum ROI

As a world-leading Continuous Extrusion Production Line for Aluminum Busbar supplier with approximately 50 % global market share in the aluminum wire extrusion machine industry, RLB features a dedicated R&D team, independent laboratory for customer-specific material testing, and annual machine improvements. Every High Speed Aluminum Wire Extrusion Machine uses world-famous electrical components (Siemens, ABB), premium Chinese gearboxes, and proven technology for long service life and stable operation.

Our 30+ maintenance engineers provide global on-site installation, 24/7 online/remote support, and rapid response — ensuring long-term partnership, minimal downtime, and consistent high-quality output.

Ready to boost your aluminum conductor production efficiency?

Şimdi bilgi isteyin for factory-direct price, detailed technical drawings, video demonstration, or customized quotation. Our engineering team will respond within 24 hours with tailored technical solutions matched to your exact production needs.

Aluminum Continuous Extrusion Machine

Discover RLB Aluminum Continuous Extrusion Machine – premium Continuous Extrusion Line and High Speed Aluminum Wire Extrusion Machine from China’s leading manufacturer. Conform CRE technology for aluminum busbar, tubes, conductors & profiles (Φ9.5–15 mm rod). 95 % material yield, energy saving 10–20 %, unlimited length, low VOC.

Ürün SKU: Aluminum Continuous Extrusion Machine1

Ürün markası: RLB Makineleri

Ürün para birimi: Amerikan Doları

Ürün Fiyatı: Fabrika fiyatı için iletişime geçin.

Ürün stokta: Stokta var
