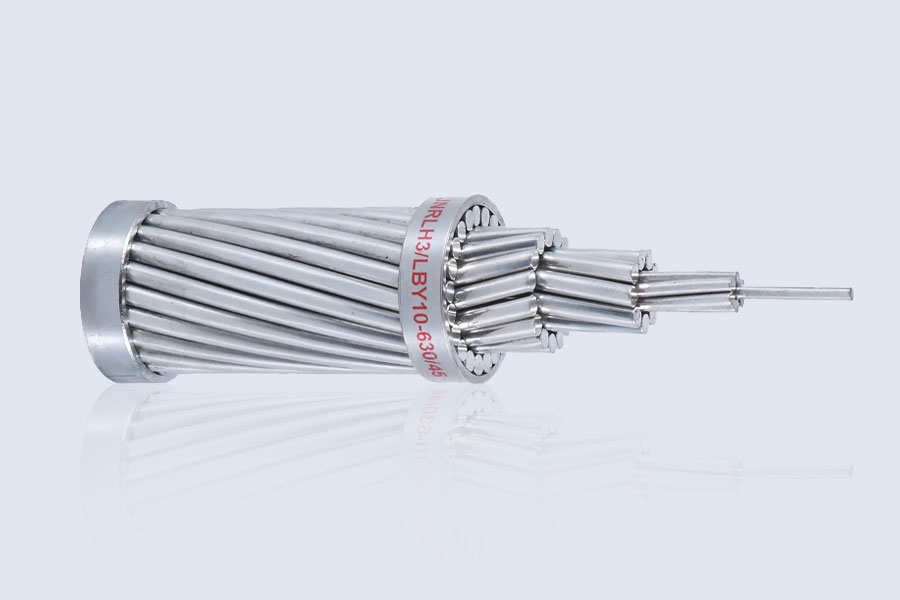

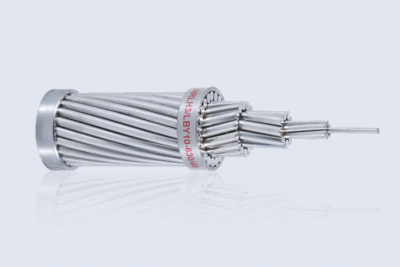

    Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW) | High-Performance Hybrid Overhead Conductor

    Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW) is a premium hybrid overhead conductor that combines high-conductivity aluminum strands with aluminum-clad steel core wires. The aluminum cladding on the steel core provides superior corrosion resistance compared to conventional galvanized steel, while maintaining exceptional tensile strength and fatigue performance. This advanced design delivers higher conductivity, lower sag, and longer service life than standard ACSR, making ACSR/AW the preferred choice for long-span transmission lines and demanding environments.

    Karşılaştırmaya ekle
    İstek listesine ekle
    Kategoriler: Etiketler: , , , , , ,
    Şimdi bilgi isteyin
    Açıklama
    Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW) is a premium hybrid overhead conductor that combines high-conductivity aluminum strands with aluminum-clad steel core wires. The aluminum cladding on the steel core provides superior corrosion resistance compared to conventional galvanized steel, while maintaining exceptional tensile strength and fatigue performance. This advanced design delivers higher conductivity, lower sag, and longer service life than standard ACSR, making ACSR/AW the preferred choice for long-span transmission lines and demanding environments.

    Key Advantages

    • Superior Corrosion Resistance: Aluminum cladding protects the steel core from atmospheric corrosion, ideal for coastal, industrial, and polluted areas.
    • High Mechanical Strength: Aluminum-clad steel core offers excellent tensile strength and fatigue resistance for long spans and heavy loading.
    • Improved Conductivity: Higher aluminum content reduces electrical losses compared to traditional ACSR.
    • Low Sag Performance: Optimized thermal expansion and creep characteristics allow longer spans and reduced tower heights.
    • Uzun Hizmet Ömrü: Proven durability in extra-high-voltage (EHV) and ultra-high-voltage (UHV) applications.

    Main Applications

    ACSR/AW conductors are widely used in:

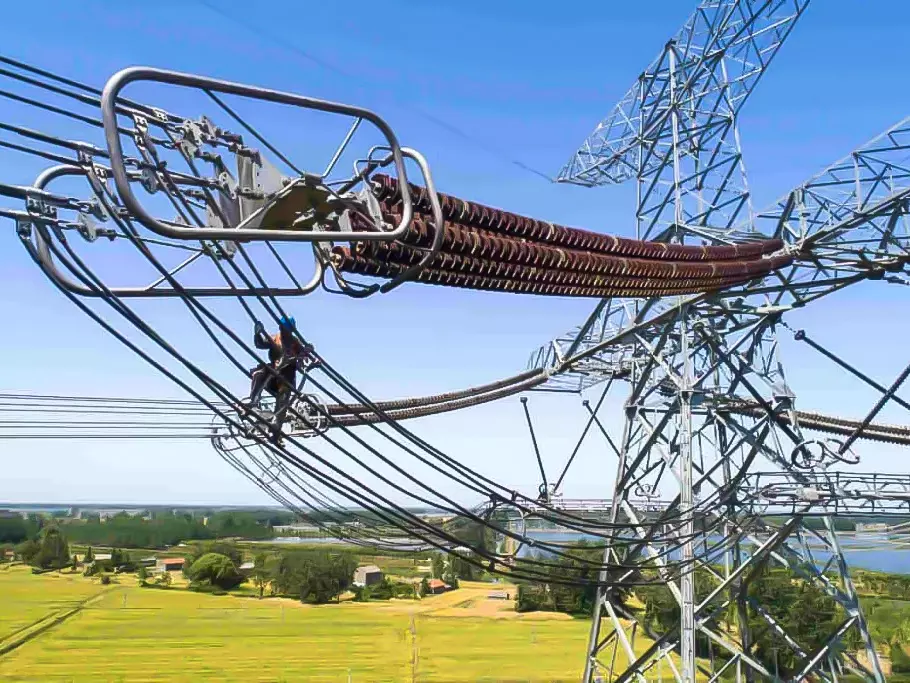

    • High-voltage and extra-high-voltage overhead transmission lines
    • Long-span river crossings and heavy ice/wind load zones
    • Coastal and high-corrosion environments
    • Capacity upgrades of existing lines without tower reinforcement

    Construction

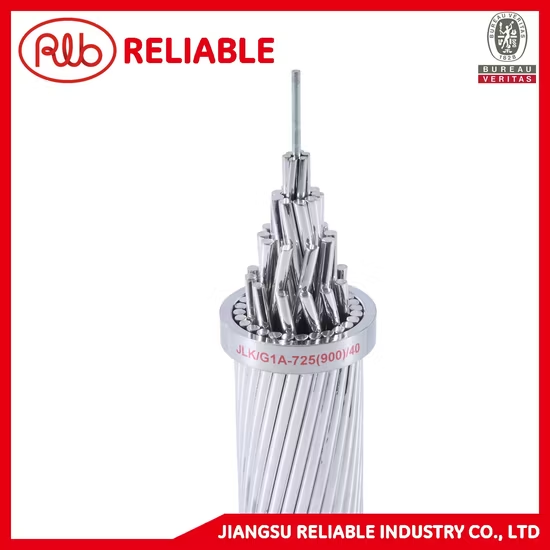

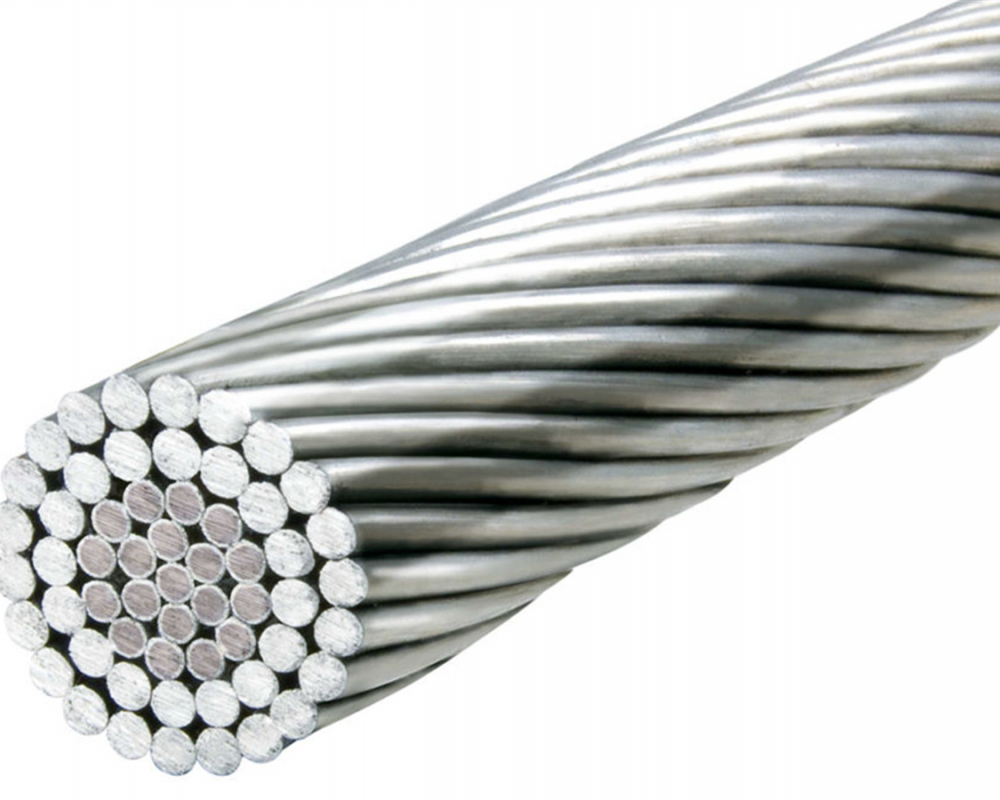

    The conductor consists of concentric-lay stranded round aluminum wires surrounding one or more round aluminum-clad steel core wires. This hybrid design ensures a balance of electrical conductivity from the aluminum and mechanical reinforcement from the clad steel core.

    Manufacturing Standards

    Produced in full compliance with:

    • ASTM B 549-88
    • IEC 61089-1991

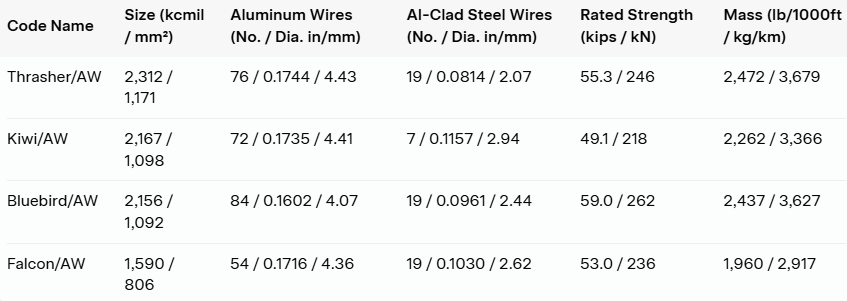

    Representative Technical Specifications (ASTM B549)

    Representative Technical Specifications (ASTM B549)

    (A complete range of sizes and configurations is available to meet specific project requirements.)

    Ambalajlama

    Supplied on robust wooden drums, plywood drums, or steel drums for safe transportation, storage, and efficient on-site handling.

    Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW) offers the ideal combination of high conductivity, superior corrosion resistance, and mechanical strength for modern overhead power lines. It is the reliable solution for utilities seeking longer service life and reduced maintenance in challenging environments.
