In modern mechanical power transmission systems, the pin and bush coupling (also known as pin bush coupling, bush pin type flexible coupling, or rubber bush coupling) is one of the most widely used flexible shaft couplings. This robust and cost-effective design effectively transmits torque while accommodating shaft misalignment, absorbing shock loads, and dampening vibration—making it an essential component in pumps, compressors, conveyors, fans, blowers, and other rotating machinery.

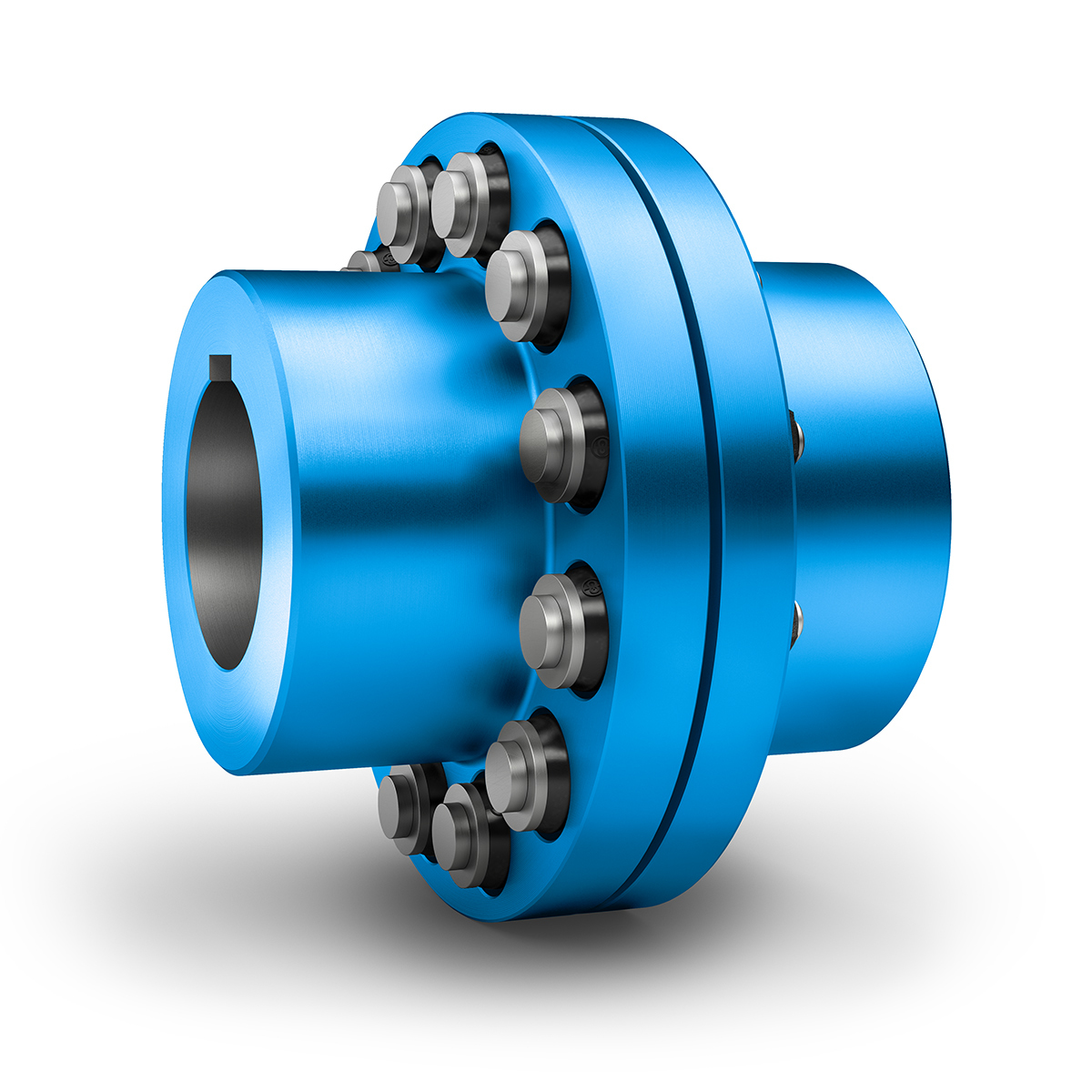

Engineered with two cast iron or steel hubs connected by steel pins fitted with resilient rubber or polyurethane bushes, the pin and bush coupling provides excellent flexibility without sacrificing torque capacity or service life.
Working Principle & Structural Design
The pin and bush coupling consists of:
- Two hubs (driving and driven) keyed to their respective shafts
- Steel pins fixed to one hub
- Resilient bushes (typically natural rubber, nitrile, or polyurethane) mounted on the pins that engage with clearance holes in the opposite hub
This simple yet highly effective arrangement allows the coupling to compensate for:
- Parallel misalignment
- Angular misalignment
- Axial movement
- Shock and torsional vibration
The bushes act as a flexible medium, absorbing misalignment and shock while transmitting torque smoothly. Maintenance is straightforward—worn bushes can be replaced without dismantling the entire drive system.
Key Features & Technical Advantages
High-quality pin and bush couplings deliver outstanding performance through the following features:
- Misalignment Compensation — Handles significant parallel, angular, and axial misalignment without imposing excessive loads on bearings.
- Shock & Vibration Absorption — The resilient bushes effectively dampen torsional vibrations and cushion shock loads, protecting connected equipment.
- High Torque Transmission — Capable of transmitting substantial torque with compact dimensions.
- Easy Installation & Maintenance — Simple assembly/disassembly; bushes are replaceable on-site.
- Quiet & Smooth Operation — Low noise and reduced vibration compared to rigid couplings.
- Long Service Life — Premium rubber or polyurethane bushes provide excellent fatigue resistance and chemical compatibility.
- Cost-Effective Solution — Lower initial and lifecycle costs than more complex flexible couplings (e.g., gear or grid couplings).
Primary Applications
Pin and bush couplings are the preferred choice across numerous industries:
- Pumps & Compressors — Centrifugal pumps, reciprocating compressors, and vacuum pumps
- Material Handling — Belt conveyors, bucket elevators, and screw conveyors
- Power Generation & HVAC — Fans, blowers, and generators
- Heavy Machinery — Crushers, mixers, rolling mills, and textile machinery
- General Industrial Drives — Any application requiring reliable torque transmission with misalignment tolerance
Their versatility makes them suitable for both light-duty and heavy-duty industrial environments.
Why Choose Pin and Bush Couplings?
Compared to rigid couplings, pin and bush couplings significantly reduce bearing loads and extend the life of connected equipment. Their simple design, easy maintenance, and proven reliability have made them a standard in power transmission for decades. Leading manufacturers such as Renold and others offer standardized ranges with various sizes, torque ratings, and bush materials to suit specific operating conditions.
