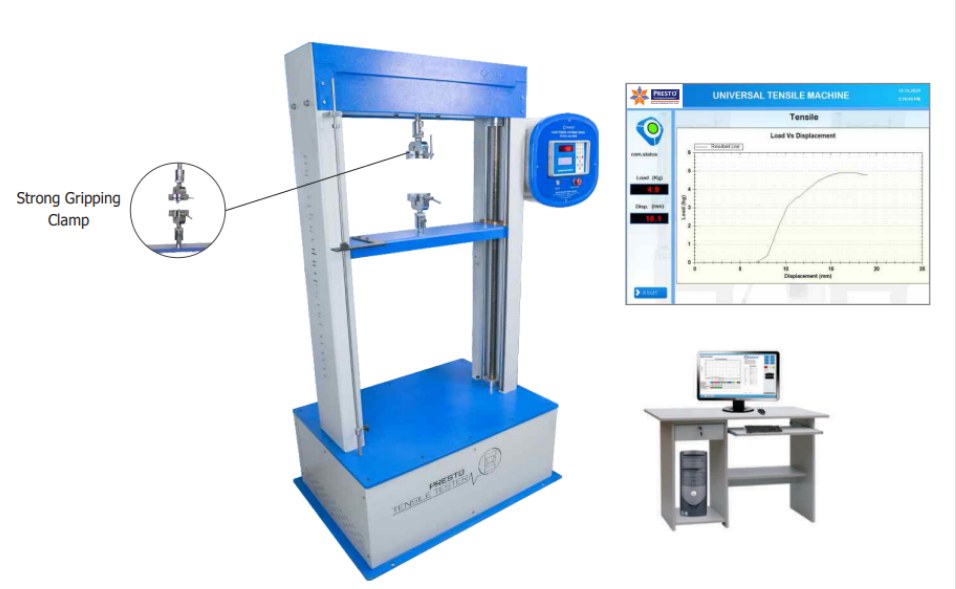

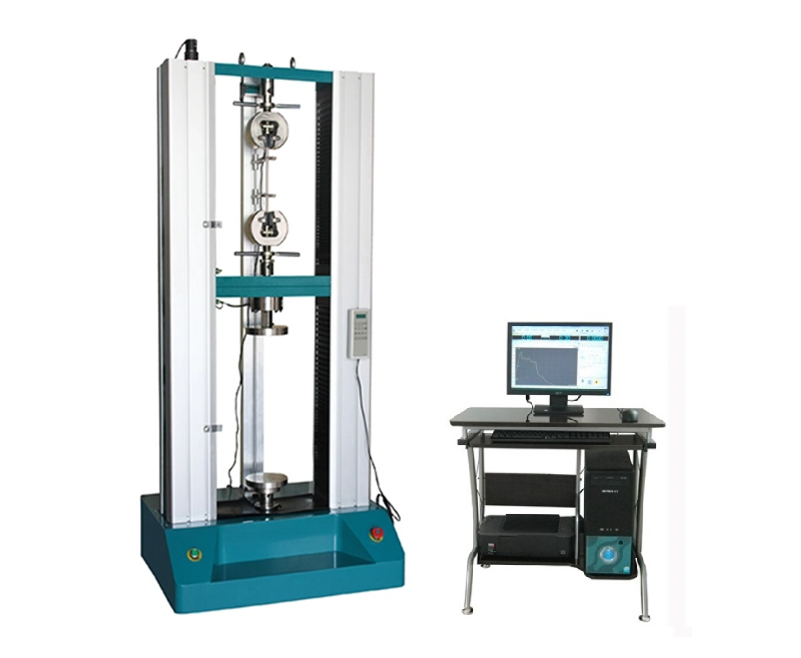

In modern materials science, quality control laboratories, and manufacturing environments, accurate and repeatable mechanical property testing is essential for ensuring product safety, performance, and compliance. The Computer-Controlled Electronic Universal Testing Machine (electronic UTM) is a state-of-the-art testing system that integrates advanced mechanical design, single-chip microcomputer technology, and powerful computer software to deliver precise measurement and real-time data recording of load, displacement, and time — presented as intuitive curves and comprehensive test reports.
This versatile electronic universal testing machine is primarily used to evaluate the tensile, compression, bending, and shearing properties of a wide range of materials, including metals, plastics, rubber, composites, textiles, and construction components.
Primary Applications
The computer-controlled electronic UTM is widely applied in research institutes, universities, and industrial quality control departments for:
- Tensile Testing — Determination of yield strength, ultimate tensile strength, elongation, and modulus of elasticity.
- Compression Testing — Evaluation of compressive strength and deformation behavior.
- Bending & Flexural Testing — Assessment of flexural modulus and bending strength.
- Shearing & Other Tests — Custom fixtures allow shear, peel, tear, and cyclic loading tests.
By recording load-displacement-time curves in real time, engineers can thoroughly analyze material behavior, identify defects, and optimize manufacturing processes. The system is particularly valuable for quality control during production, failure analysis, and new material development.
Compliance with International Standards
Fully designed and manufactured in strict accordance with:
- ISO 6892-1 (Metallic materials — Tensile testing at ambient temperature) and its 2019 update.
- ISO 7500-1 (Verification of static uniaxial testing machines — Class 0.5 accuracy).
- ASTM E4, ASTM E8/E8M (Tension testing of metallic materials).
- Additional support for EN, DIN, JIS, GB/T, and customer-specific standards.
Automatic temperature compensation and traceable calibration ensure certification-ready results for automotive, aerospace, electronics, and cable export markets.
Key Features & Technical Advantages
- Advanced Closed-Loop Servo Control – High-precision AC servo motor (Panasonic or equivalent) with ball screw drive delivers ultra-smooth, vibration-free crosshead movement at 0.001–500 mm/min.
- Class 0.5 Accuracy – Celtron/equivalent load cells with 1/300,000 FS resolution and ±0.5% force accuracy across 0.4%–100% range.
- Multi-Channel Real-Time Data Acquisition – Simultaneous recording of load, displacement, strain (up to 8 extensometers), and stress-strain curves with 50–500 Hz sampling.
- Intuitive Windows-Based Software – Pre-loaded test methods, automatic calculation of yield strength (Rp0.2/Rt0.5), tensile strength, modulus, elongation, and energy absorption; one-click Excel/PDF report generation.
- Versatile Fixtures & Safety – Interchangeable grips for round/flat specimens, compression platens, bending fixtures; overload protection (150%), emergency stop, and mechanical limits for operator safety.
- Industrial-Grade Reliability – Robust dual-column or four-column frame, low-maintenance design, and seamless MES/ERP integration for Industry 4.0 traceability.
Compared to traditional hydraulic or manual machines, this computer-controlled electronic UTM offers 5–8× faster test cycles, eliminates operator variability, and provides full digital traceability for ISO audits.
Why Choose Our Computer Controlled Electronic Universal Testing Machine?
In the competitive global manufacturing landscape, precise material characterization directly drives product reliability, cost efficiency, and market leadership. Our servo-driven electronic UTM delivers:
- Laboratory-grade accuracy with industrial 24/7 durability for consistent quality control.
- Significant material savings through early defect detection and optimized formulations.
- Full international compliance for seamless export and third-party certification.
- Future-proof digital solutions including remote monitoring and custom fixture design.
As a trusted, technology-driven supplier with decades of cable and materials testing expertise, we offer not just equipment—but complete technical solutions: on-site installation, operator training, annual calibration, customized software modules, and long-term strategic partnership to support your continuous improvement goals.
Ready to elevate your material testing precision and efficiency?
Inquiry Now – Contact our technical team today for a customized demo, detailed specifications, load capacity options (10 kN–100 kN+), or production line integration proposal.
Computer Controlled Electronic Universal Testing Machine - Reliable Doing Cable
Discover the Computer Controlled Electronic Universal Testing Machine – high-precision servo-driven electronic UTM for tensile, compression, bending & shear tests on metals, plastics, rubber & cables. Class 0.5 accuracy, ISO 6892 & ASTM E8 compliant, real-time stress-strain curves & Excel reports. Inquiry Now for technical solutions.
