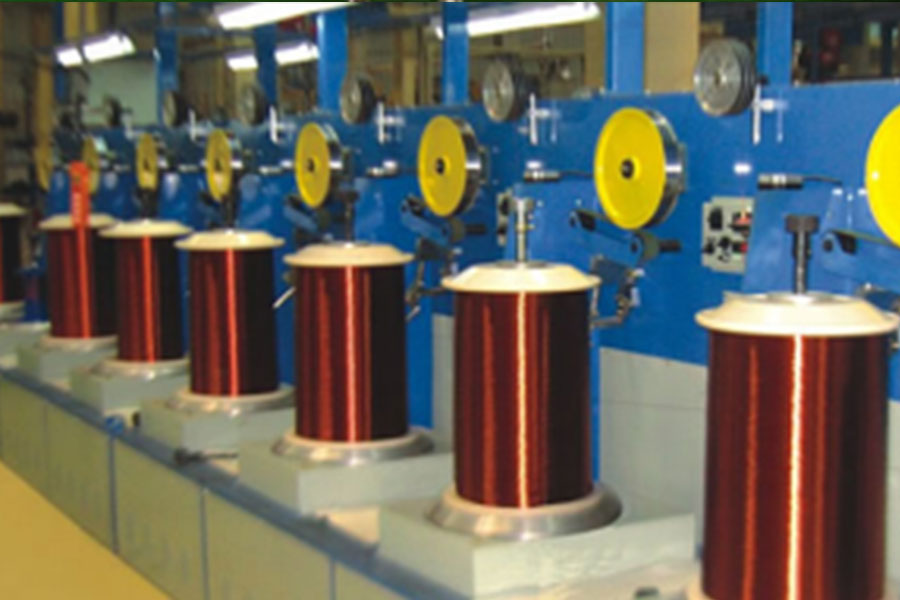

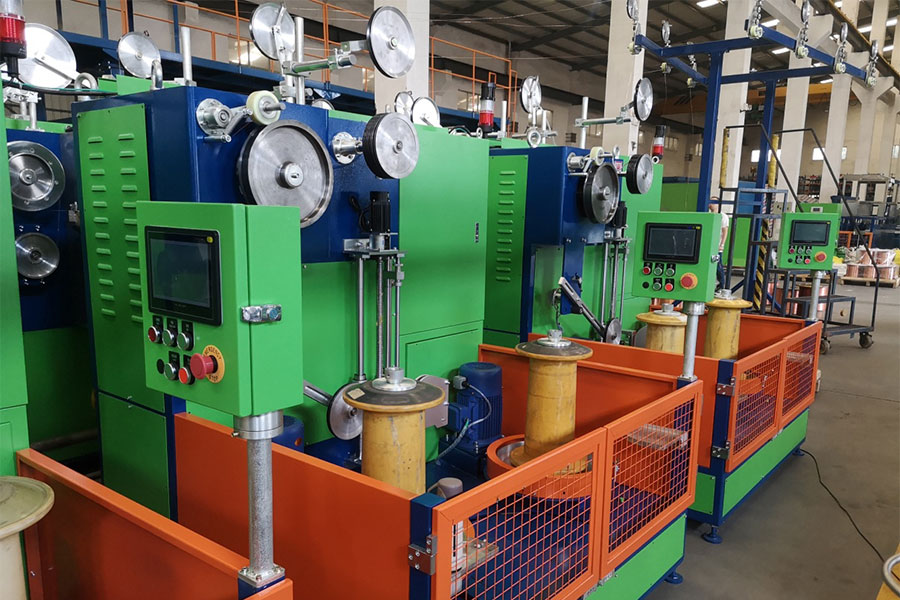

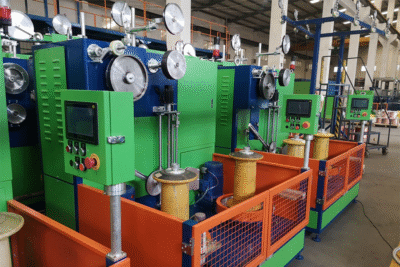

In today’s competitive global magnet wire market, consistent insulation quality, high production speed, low VOC emissions, and full compliance with IEC, NEMA, and customer-specific standards are essential for success. The Copper Wire Enameling Machine (and its aluminum counterpart) delivers industry-leading performance across horizontal high-speed lines, vertical tower configurations, and fully integrated drawing + enameling systems.
Designed for fine wires (Φ0.04–0.30 mm) and medium-to-thick conductors (Φ0.25–3.50 mm), these lines apply uniform layers of polyester, modified polyester, polyester-imide, polyamide-imide, polyurethane, or self-adhesive enamels. The result is enameled wire with excellent dielectric strength, thermal class up to 220°C (Class H/C), superior mechanical properties, and bright, defect-free surface finish.
Whether you need high-output multi-wire horizontal lines for fine magnet wire or gravity-assisted vertical towers for thicker and flat conductors, RLB provides the precise, energy-efficient, and environmentally compliant solution your production demands.
Why RLB Copper Wire Enameling Machine Stands Out
Engineered for today’s demanding magnet wire and winding wire market, the RLB Enameling Wire Production Line combines precision process control, advanced oven technology, energy efficiency, and strict environmental compliance.
Key Performance Advantages
- Multiple Configuration Options — Horizontal high-speed lines optimized for fine wires (high output, multi-wire setups up to 32 lines), vertical towers for medium-to-thick conductors (gravity-assisted uniform coating with minimal tension), and fully integrated rod breakdown + drawing + enameling systems that dramatically reduce labor, handling, and floor space.
- Advanced Oven & Coating Technology — Precise multi-zone temperature control, catalytic combustion systems achieving ultra-low VOC emissions (≤20 mg/m³), and real-time tension/diameter monitoring ensure pinhole-free insulation, smooth surface finish, and consistent coating thickness across every meter of wire.
- High-Build & Dual-Coating Capability — Supports up to 13 passes with single or dual-layer application in one continuous run. Ideal for high-build, composite, and specialty enamels requiring superior dielectric and thermal performance.
- Energy-Efficient & Eco-Friendly Design — Optimized heating, solvent recovery, and heat recirculation systems significantly reduce energy consumption (some advanced lines achieve <500 kWh per ton). Fully compliant with global environmental regulations, enabling export to regulated markets.
- Flexible & High-Productivity Take-Up — Compatible with PT2–PT270 spools and large drum take-up systems for maximum uptime, minimal changeover time, and efficient downstream handling.
The result is bright, defect-free enameled wire with outstanding electrical performance, thermal stability, and mechanical reliability — trusted in safety-critical and high-efficiency applications worldwide.
Technical Specifications Overview
| Model Series | Material | Wire Range (mm) | Lines | Max. Passes | DV Value / Type | Take-Up Spool | Output (kg/24h) Example | VOC (mg/m³) |
|---|
| RLBHE Horizontal (Fine) | Copper | Φ0.04–0.10 | 24–28 | 9–10 (dual coating) | 22–24 / PU | PT2–PT10 | 290–540 | ≤20 |
| RLBAHJ Horizontal (Medium) | Copper | Φ0.10–0.55 | 18–32 | 8–9 (dual coating) | 25 / PE | PT4–PT45 | 1600–2370 | ≤20 |
| RLBAHL Horizontal (Al) | Aluminum | Φ0.15–1.20 | 12–24 | 9–10 (dual coating) | 23–30 / PE | PT4–PT90 | 380–1000 | ≤20 |
| RLBV Vertical | Cu / Al | Φ0.80–3.50 | 16–38 | 8–25 | Large drum | Large drum | 2420–4240 | ≤20 |
| RLBH Integrated Drawing + Enamel | Cu / Al | Φ0.15–1.20 | 8–12 | 12–24 | 55–120 | PT25–PT270 | 1260–8400 | ≤20 |
Custom configurations, higher speeds, and specialty enamel types (self-bonding, high-build, etc.) available on request.
Primary Applications
General-Purpose Enameled Wire Polyester and modified polyester coatings for standard motors, transformers, relays, household appliances, and industrial windings.
Heat-Resistant Enameled Wire (Class 180–220°C) Polyester-imide, polyamide-imide, and composite coatings for automotive (including EV traction motors), aerospace, high-efficiency industrial motors, and heavy-duty transformers.
Special-Purpose Wires
- Polyurethane (PU) — direct solderable for electronics and precision coils
- Self-adhesive / self-bonding enamels — for special coils and voice coils
- High-frequency / corona-resistant wires — for inverter-duty motors and high-speed applications
RLB also provides complete turnkey enameling plant solutions, including upstream oxygen-free copper rod casting and drawing lines, as well as downstream spooling, packaging, and testing equipment for fully automated, high-efficiency magnet wire production facilities.
Advanced Engineering & Process Technology

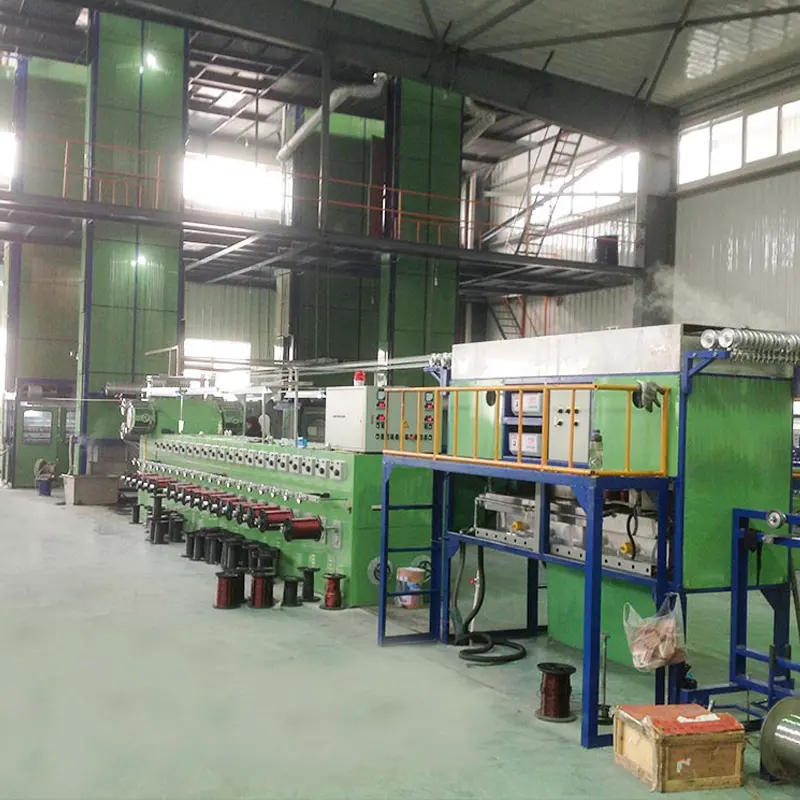

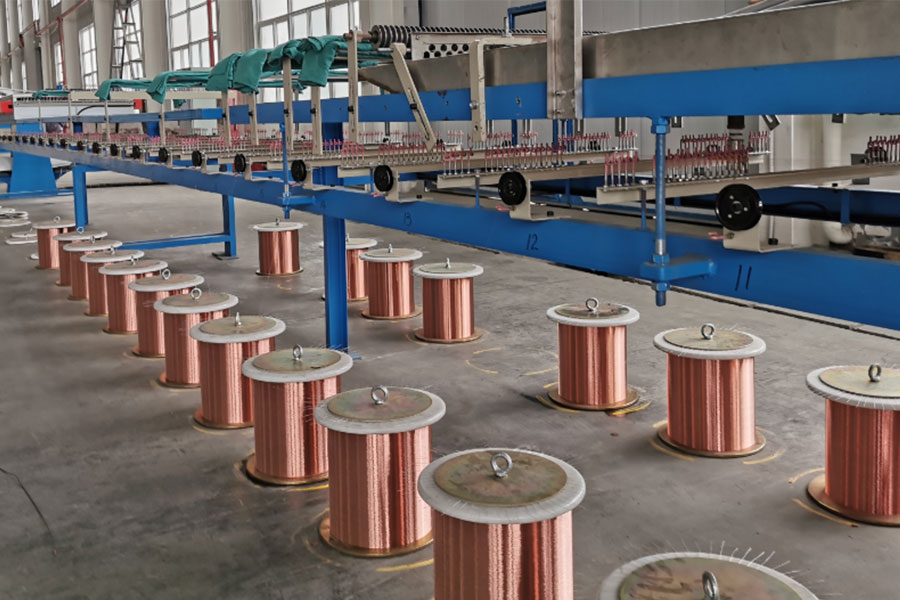

Horizontal vs Vertical Configurations Horizontal lines excel in high-speed, multi-wire production of fine and medium wires, maximizing output per square meter of floor space. Vertical tower machines leverage gravity for exceptionally uniform coating on thicker round and flat conductors, reducing mechanical stress and improving concentricity.
Precision Coating Process Wire is annealed, coated via felt or die applicators, passed through multi-zone ovens for controlled curing, and monitored in real time for diameter, tension, and surface quality. Multiple passes build the required insulation thickness while maintaining excellent adhesion, flexibility, and abrasion resistance.
Environmental & Energy Leadership Catalytic combustion destroys VOCs at source (≤20 mg/m³), while solvent recovery and heat recirculation systems deliver substantial energy savings and lower operating costs. These features support compliance with strict international environmental standards and improve your plant’s sustainability profile.
Integrated Drawing + Enameling Lines Combining rod breakdown/drawing directly with enameling reduces intermediate handling, labor, and contamination risk while shortening the overall production footprint — a major advantage for new plants or capacity expansions.
Built for Long-Term Reliability & Maximum ROI
Every RLB Copper Wire Enameling Machine features heavy-duty construction, premium PLC/HMI control systems, and proven oven technology engineered for years of stable, high-output performance with minimal maintenance. Global customers consistently report higher first-pass yield, lower energy and solvent consumption, faster product changeovers, and reduced downtime compared to conventional systems.
As an experienced China Copper Enameling Machine supplier, RLB offers factory-direct pricing, full customization, comprehensive spare parts availability, and responsive technical support worldwide. We focus on reliable quality, tailored technical solutions, and long-term customer partnership — delivering equipment that drives sustainable competitive advantage.
Ready to upgrade your magnet wire production with higher quality, lower emissions, and better efficiency?
Inquiry Now — Our technical team responds within 24 hours with detailed specifications, layout proposals, energy consumption estimates, and competitive quotations tailored to your exact requirements.
