Water Blocking Tape / Water Swellable Tape is a non-woven polyester fabric impregnated with superabsorbent polymer (SAP, primarily sodium polyacrylate) that provides rapid longitudinal water blocking in power, control, and optical cables. Upon water contact it absorbs moisture and expands into a stable gel within 1–3 minutes, sealing interstices and limiting longitudinal migration typically to less than 1 m under standard hydrostatic test conditions.
How Water Blocking / Swellable Tape Functions in Cable Construction
The tape is applied longitudinally or helically over the insulation screen, under the metallic screen/sheath, or over armour wires. When water enters through a jacket breach, joint, or sheath defect, SAP particles absorb liquid by osmosis and hydrogen bonding. Volume expansion fills voids between conductors, screens and sheath, forming a high-viscosity gel barrier that resists further axial flow.
Typical laboratory performance (GB/T and manufacturer data aligned with IEC 60502 water-penetration principles):
- Swelling height: ≥12–18 mm within 1–3 min (single-side vs double-side grades)
- Swelling speed: ≥6–12 mm in the first minute
- Tensile strength: ≥25–50 N/cm
- Elongation: ≥8–14 %
- Short-term thermal stability: 230 °C (processing / extrusion)
- Long-term operating temperature: 90 °C
- Moisture content: ≤9 %
Semi-conductive grades incorporate carbon black for controlled volume resistivity (typically ≤0.05–0.1 MΩ·cm surface), ensuring electrical continuity between insulation screen and metallic sheath. Non-conductive grades are used over screens or armour where insulation integrity is required.
Key Technical Advantages & Performance Benefits
Rapid & High-Efficiency Swelling Achieves fast swelling kinetics with high gel strength, blocking water migration almost instantly — critical for passing stringent water penetration tests in fiber optic and power cables.
Process-Friendly Mechanical Properties
- Tensile strength: ≥25–50 N/cm (higher in reinforced grades)
- Elongation: ≥8–14%
- Low weight and thin profile (typically 0.1–0.3 mm)
These properties ensure smooth longitudinal or helical application without tearing, wrinkling, or dust generation on high-speed lines.
Versatile Configurations for Every Cable Design Available in:
- Single-side and double-side versions
- Non-conductive (standard for fiber optic and telecom cables)
- Semi-conductive (essential for MV/HV power cables to maintain electrical continuity across metallic screens)
Excellent Environmental & Thermal Stability
- Short-term stability: Up to 230°C (during extrusion and processing)
- Long-term operating temperature: Up to 90°C
- Low moisture content and full REACH & RoHS compliance
Flame-retardant and reinforced grades are also available for specialty applications.
Long-Term Gel Integrity The formed gel remains stable over the cable’s service life, preventing water treeing, conductor corrosion, and dielectric degradation — significantly extending cable reliability in underground, submarine, and outdoor installations.
Primary Applications in Cable Systems
Water Blocking Tape is widely specified as the longitudinal water-blocking layer between the cable core and outer sheath in:
- Optical Fiber Cables (loose tube, ribbon, micro-cable, and submarine designs)
- Telecommunication & Data Transmission Cables
- Control & Instrumentation Cables
- Medium- and High-Voltage Power Cables (MV/HV)
- Underground, Direct-Buried, Submarine, and Outdoor Cables exposed to moisture risk

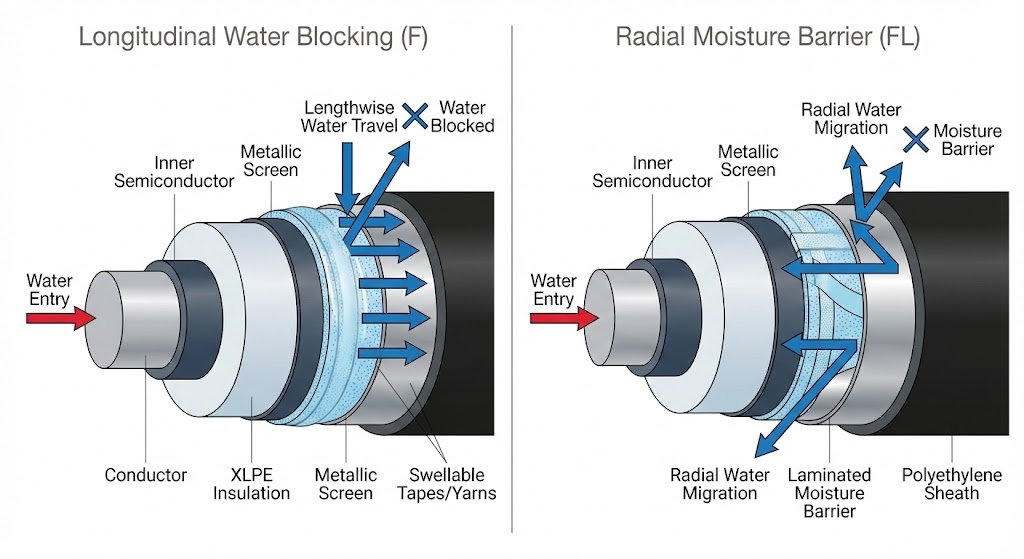

It is particularly effective in combination with other barriers (such as copolymer coated tapes or metallic sheaths) for comprehensive radial and longitudinal protection.
Water Blocking Tape vs. Water Blocking Powder & Swellable Yarn – Quick Comparison
| Feature | Water Blocking Tape | Water Blocking Powder (SAP) | Swellable Yarn | Best For |
|---|
| Application Method | Longitudinal/helical wrapping | Direct addition during stranding | Integrated into core or binder | Tape for uniform coverage |
| Swelling Speed | Very fast (≥12–18 mm/3 min) | Instant gel formation | Moderate | High-speed automated lines |
| Mechanical Strength | High tensile & elongation | None (powder only) | Good (yarn reinforcement) | Structural integrity needed |
| Conductivity Options | Semi-conductive & non-conductive | Non-conductive only | Limited | Power cables (semi-conductive) |
| Cleanliness & Dust | Very clean | Potential dust during handling | Clean | Modern high-speed production |
| Typical Use | Fiber optic, telecom, MV/HV power | Conductor stranding | Lightweight fiber optic cores | Versatile longitudinal blocking |
This comparison shows why many manufacturers prefer Water Blocking Tape for its balance of performance, ease of use, and reliability in complex cable constructions.
Technical Specifications
Semi-Conductive Water Blocking Tape (Single Side)
| Thickness (mm) | Mass per Area (g/m²) | Tensile Strength (N/cm) | Elongation (%) | Swelling Speed (mm/1 min) | Swelling Height (mm/3 min) | Surface Resistance (Ω) | Volume Resistance (Ω·cm) | Moisture Content (%) |
|---|
| 0.25 ± 0.03 | 90 ± 5 | ≥25 | ≥12 | ≥6 | ≥8 | ≤1500 | <1×10⁶ | ≤9 |
| 0.30 ± 0.03 | 100 ± 5 | ≥30 | ≥12 | ≥8 | ≥12 | ≤1500 | <1×10⁶ | ≤9 |
| 0.35 ± 0.03 | 110 ± 5 | ≥35 | ≥12 | ≥10 | ≥14 | ≤1500 | <1×10⁶ | ≤9 |
| 0.40 ± 0.03 | 130 ± 10 | ≥40 | ≥12 | ≥11 | ≥15 | ≤1500 | <1×10⁶ | ≤9 |
| 0.50 ± 0.03 | 160 ± 10 | ≥50 | ≥12 | ≥12 | ≥18 | ≤1500 | <1×10⁶ | ≤9 |
Non-Conductive Water Blocking Tape (Double Side Example)
| Thickness (mm) | Mass per Area (g/m²) | Tensile Strength (N/cm) | Elongation (%) | Swelling Speed (mm/1 min) | Swelling Height (mm/3 min) | Moisture Content (%) |
|---|
| 0.18 ± 0.03 | 65 ± 10 | ≥25 | ≥12 | ≥4 | ≥6 | ≤6 |
| 0.25 ± 0.03 | 80 ± 10 | ≥30 | ≥12 | ≥8 | ≥12 | ≤6 |
| 0.30 ± 0.03 | 90 ± 10 | ≥35 | ≥12 | ≥10 | ≥14 | ≤6 |
Note: Full range of single-side and double-side, conductive and non-conductive grades available. Custom specifications upon request.
| Parameter | Semi-Conductive (Single Side) | Non-Conductive (Double Side) | Test Condition / Standard |
|---|
| Swelling Height | ≥12 mm | ≥18 mm | Within 1–3 minutes |
| Swelling Speed | Fast | Very Fast | Upon water contact |
| Tensile Strength | High | High | During stranding |
| Operating Temperature (Short-term) | Up to 230°C | Up to 230°C | Processing stability |
| Operating Temperature (Long-term) | Up to 90°C | Up to 90°C | Service life |
| Moisture Content | Low | Low | Pre-production |
| Compliance | REACH & RoHS | REACH & RoHS | Environmental standards |
(Custom single-side / double-side, conductive / non-conductive grades available to match exact cable designs.)
Key Technical Parameters Summary
| Grade Type | Thickness (mm) | Mass (g/m²) | Swelling Speed (mm/1 min) | Swelling Height (mm/3 min) | Tensile (N/cm) | Short-term Stability (°C) |
|---|
| Non-cond. thin | 0.20 ± 0.03 | 70–80 | ≥6–9 | ≥9–12 | ≥25–35 | 230 |
| Non-cond. standard | 0.25–0.30 | 85–110 | ≥8–12 | ≥12–16 | ≥35–50 | 230 |
| Semi-cond. standard | 0.30 ± 0.02 | 120–125 | ≥8–12 | ≥12–16 | ≥50–53 | 230 |
| High-swell reinforced | 0.40–0.50 | 120–140 | ≥10–12 | ≥15–18 | ≥40 | 230–250 |
Standards, Testing and Recent Industry Requirements
IEC 60502 series defines water-penetration tests (longitudinal, with 1 m water head and thermal cycles). IEEE 3150-2025 (published August 2025) specifically addresses testing methods for semi-conductive water-blocking tape in 110–500 kV XLPE AC cables, focusing on properties that prevent buffer-layer ablation failures. Chinese industry standard YD/T 1115.1-2023 covers telecommunications and optical-fibre applications. REACH & RoHS compliance is mandatory for global supply.
Recent field experience (2020–2026) shows that incomplete drying or excessive moisture content in the tape before sheathing can lead to white powder precipitation (sodium polyacrylate + aluminium corrosion products). This raises volume resistivity, lowers relative permittivity and thermal conductivity, and can initiate partial discharge between the tape and aluminium sheath—resulting in local ablation of the buffer layer. Proper moisture control (<9 %), correct overlap, and verified swelling performance after heat ageing (90 °C, 12 months equivalent) are therefore critical process controls.
Application Guidelines and Process Considerations

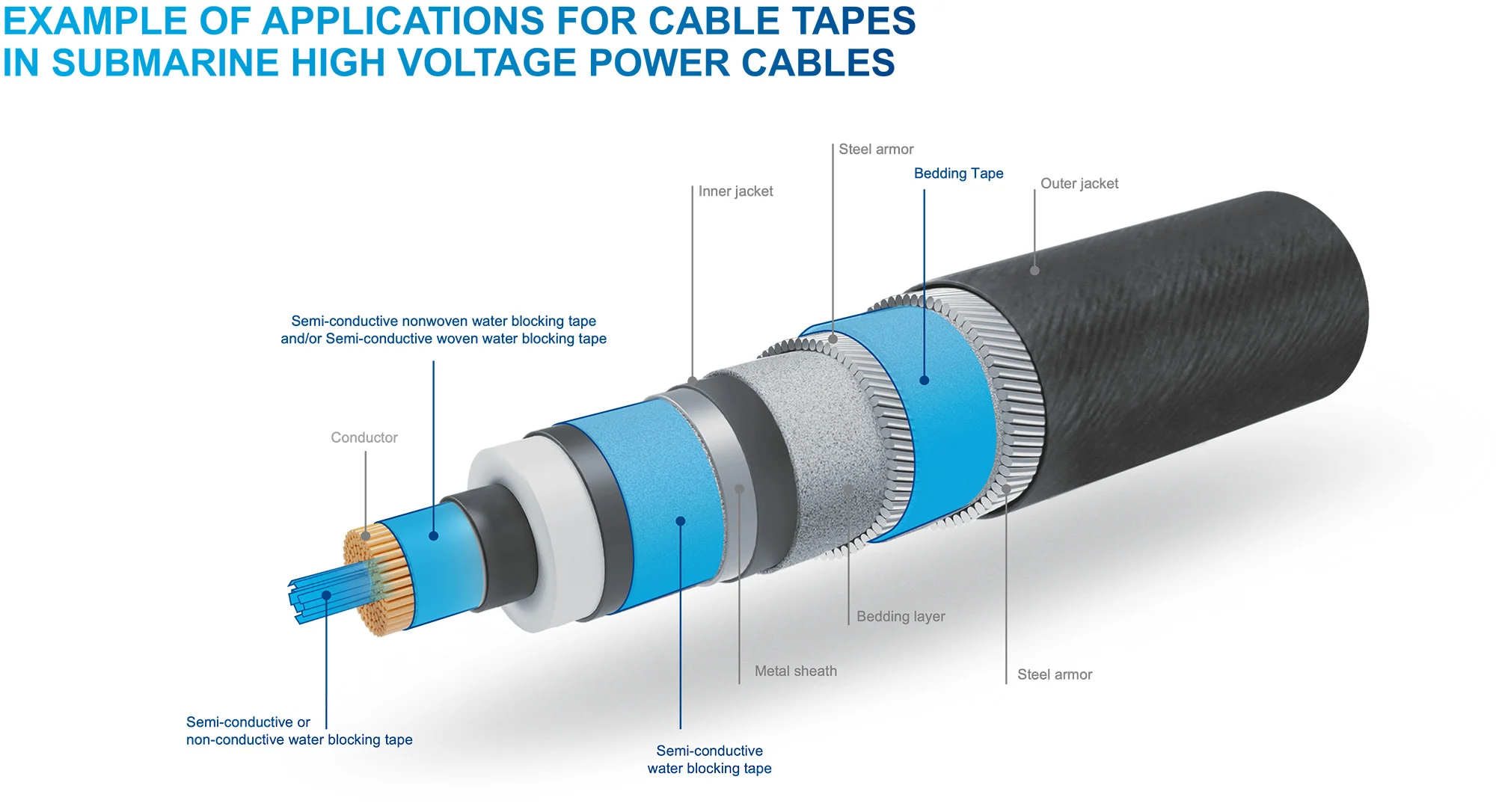

- Medium- and high-voltage XLPE power cables: Semi-conductive tape applied over insulation screen, under metallic sheath; optional second non-conductive layer over wire screen.
- Submarine / wet-location cables: Double-side high-swell grades combined with radial moisture barriers (Al/PE laminate).
- Optical fibre and hybrid cables: Thin non-conductive tape or yarn for interstitial filling.
- Processing: Tape must withstand CV-line temperatures up to 230 °C without powder loss or dimensional change. Widths are slit from 8 mm to >500 mm; core diameters typically 76–150 mm.
Common failure modes to avoid:
- Insufficient swelling height after ageing → incomplete sealing under pressure.
- High residual moisture → premature gelation or powder migration.
- Incorrect conductivity grade → equipotential disruption or dielectric stress.
- Mechanical damage during high-speed application → gaps that allow water tracking.
Practical Recommendations for Cable Manufacturers and Specifiers
Specify tape by measured swelling performance after thermal ageing rather than nominal thickness alone. Verify volume resistivity and surface conductivity for semi-conductive grades under the conditions defined in IEEE 3150-2025. Maintain low incoming moisture and control application tension to avoid wrinkles or gaps. For critical HV circuits, combine longitudinal swellable tape with a continuous radial metallic or laminated moisture barrier.
Water Blocking / Swellable Tape remains the most process-compatible and cost-effective solution for reliable longitudinal water blocking in modern XLPE, EPR and optical cable constructions. Proper grade selection and process control directly extend service life and reduce repair costs caused by moisture-induced failures.
Inquiry Now for detailed technical data sheets, custom slit widths, swelling test reports, or sample evaluation for your specific cable designs.
